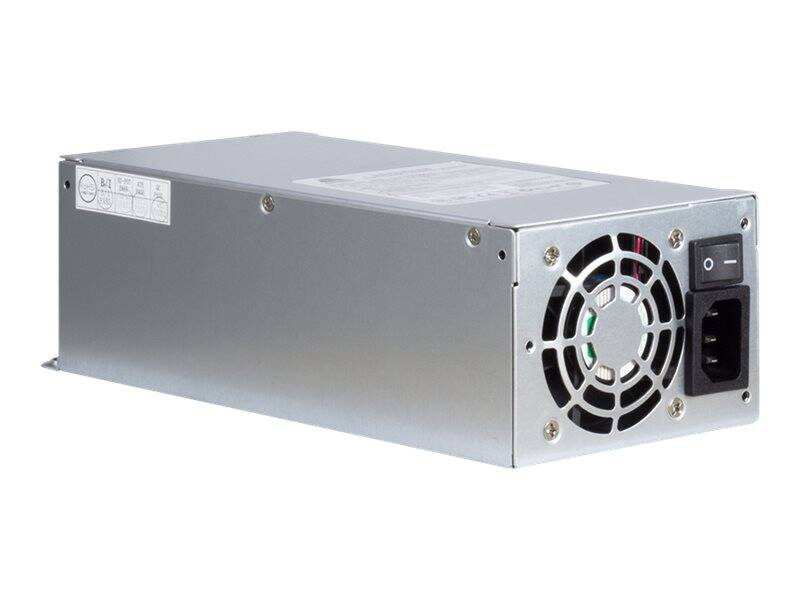

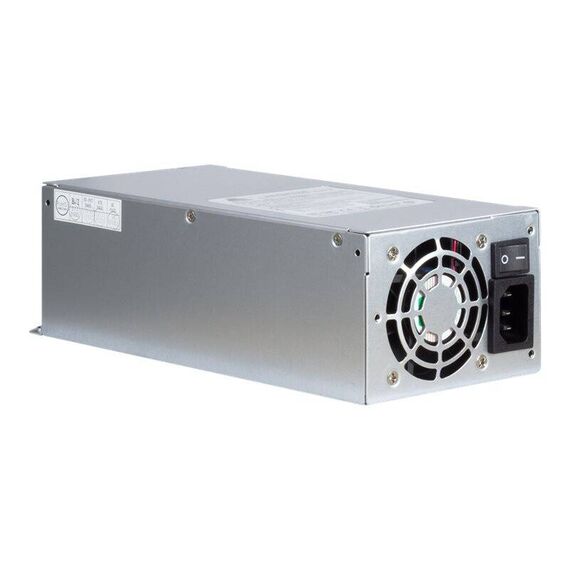

ASPOWER U2A-B20600-S - Power supply (internal) - AC 100-240 V - 600 Watt | 88887228
Please sign in so that we can notify you about a reply
Special Fetures
- Powerful 600 watts
- Up to 90% efficiency
- Full range input
Product Specification
| Device Type | Power supply - internal |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 48 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 80 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, fan speed control |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 10 cm |
| Depth | 22.5 cm |
| Height | 7 cm |
| Weight | 1.69 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.95 kg |
Features - Inter-Tech - 88887228
More Details
Product Code
04:247567
EAN Code
4260455642279
Manufacturer
Inter-Tech
