ASRock Z890 TAICHI LITE / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Audio | 90-MXBPQ0-A0UAYZ

Product Features
- Robust memory support
Designed with support for DDR5 SDRAM technology, this motherboard accommodates high-performance memory speeds and dual-channel architecture, allowing users to run demanding applications smoothly. - Extensive connectivity options
The Z890 TAICHI LITE offers a variety of interfaces, including USB 3.2 Gen 2, Thunderbolt 4, and multiple M.2 slots, providing high-speed connection possibilities for peripherals and storage devices. - Advanced networking capabilities
Featuring support for 5 Gigabit Ethernet and Wi-Fi 7, the motherboard ensures fast, reliable Internet access for online gaming, streaming, and multitasking. - High quality audio performance
With the Realtek ALC4082 audio codec and high definition audio support, this motherboard delivers exceptional sound quality for an immersive entertainment experience. - Efficient thermal management
Equipped with an aluminum heatsink design and enhanced M.2 heatsink, the Z890 TAICHI LITE helps maintain optimal temperatures, ensuring stable performance even under heavy loads.
Special Features
- Supports DDR5 SDRAM technology with speeds up to 9600 MHz
- Multiple M.2 slots for enhanced storage performance
- Comes with advanced audio features for high fidelity sound
- Includes ample USB ports for versatile connectivity
- Supports fast networking with 5 Gigabit Ethernet and Wi-Fi 7
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z890 |
Processor Socket | LGA1851 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
Supported RAM | Supported RAM |
Max Size | 256 GB |
Technology | DDR5 |
Bus Clock | 9600 MHz (O.C.), 6800 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 4800 MHz, 4400 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
Audio | Audio |
Type | HD Audio (5.1-channel) |
Audio Codec | Realtek ALC4082 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Dragon RTL8125BG / Realtek RTL8126 |
Network Interfaces | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2280 M.2 Key M slot) 4 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 4 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

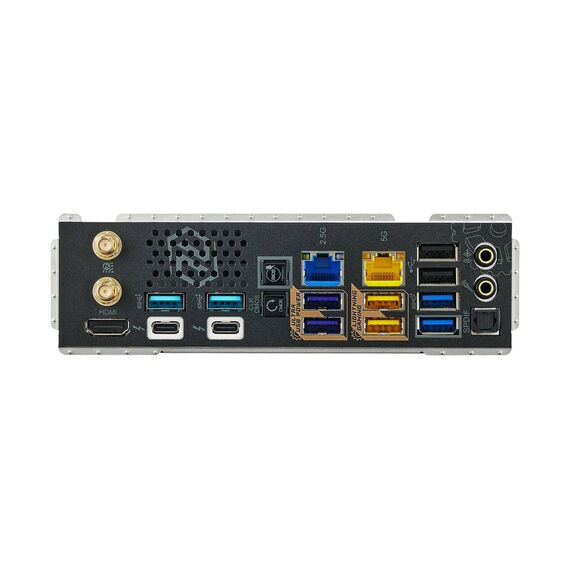

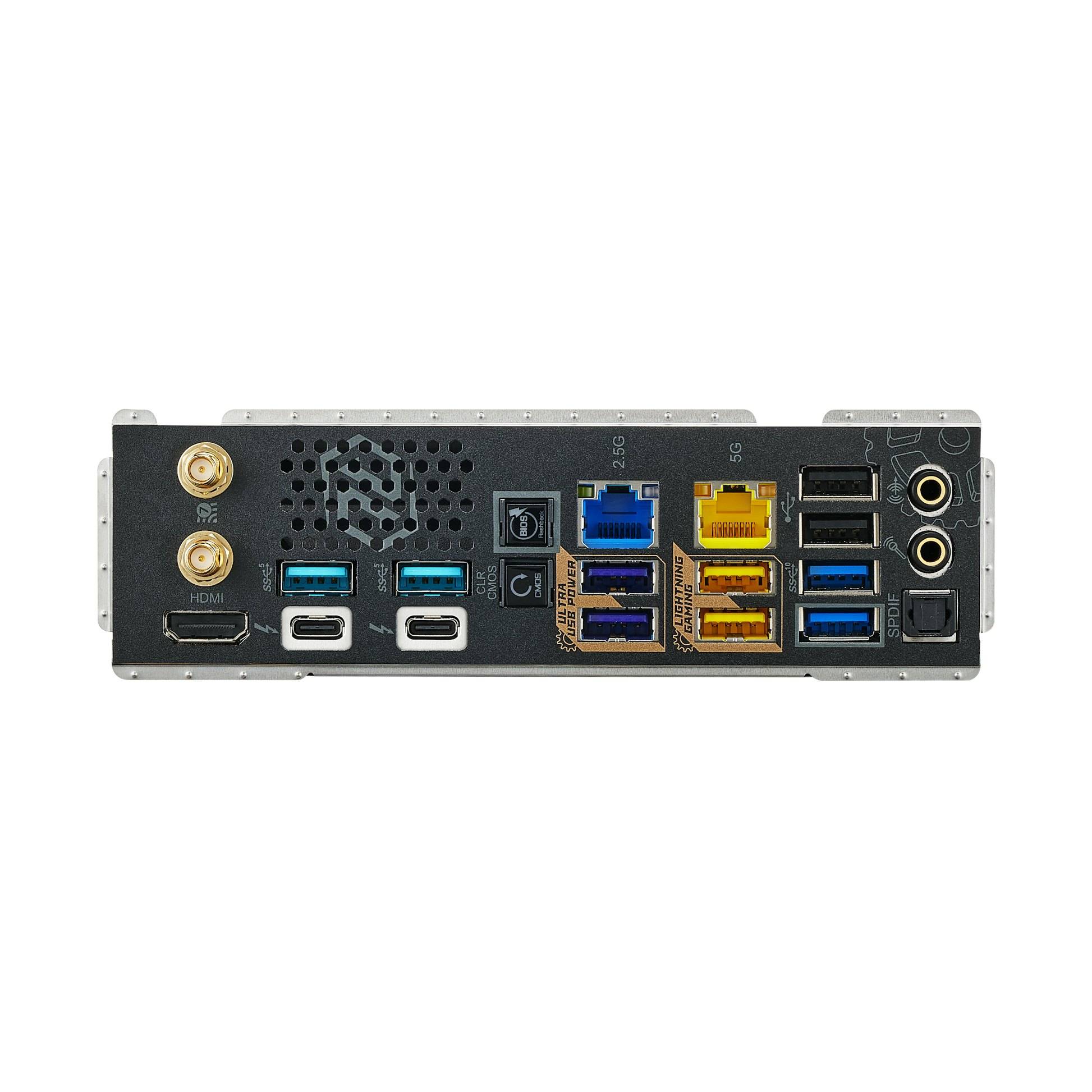

Interfaces | 1 x HDMI 2 x Thunderbolt 4/USB4 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 2 x aerial 1 x LAN (5Gigabit Ethernet) 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out |
Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
Features | Features |
BIOS Type | AMI |
BIOS Features | UEFI BIOS |
Hardware Features | 20+1+2+1+1 Phase Power Design, ESS 9219 SABRE HiFi DAC, WIMA audio capacitors, pre-mounted I/O shield, Server-Grade Low-Loss PCB, Memory OC Shield, 20K black capacitors, BIOS FlashBack button, 8 Layer PCB, 2oz Copper PCB, DIY Friendly Design, enlarged M.2 heatsink, anti-drop M.2 heatsink screw, aluminium heatsink design, PCH heatsink, ASRock Polychrome RGB, ASRock EZ Mode, ASRock My Favorites in UEFI, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash |
Miscellaneous | Miscellaneous |
Included Accessories | ASRock WiFi 2.4/5/6 GHz aerial, 1 to 2 ARGB LED splitter cable, 3 thermistor cables, 2 x M.2 screws, 2 x standoff for M.2 socket |
Cables Included | 4 x Serial ATA cable |
Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software |
Compliant Standards | FCC, ErP Ready, EuP Ready, CEC Tier II |
Width | 30.5 cm |
Depth | 24.4 cm |
