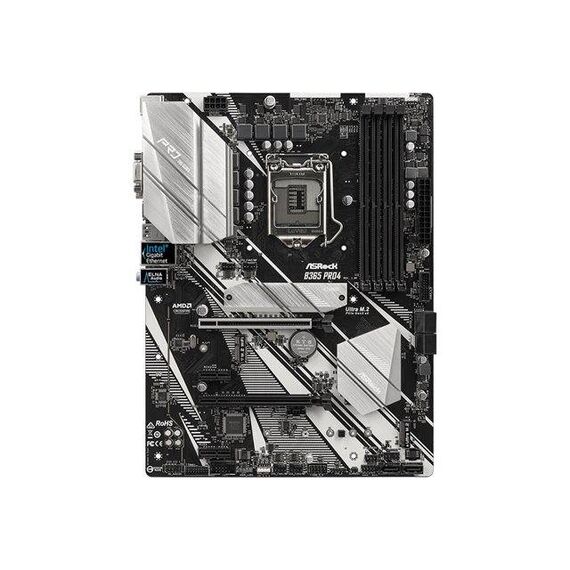

ASRock B365 Pro4 / Motherboard / ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB9V0-A0UAYZ

Description

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

ASRock B365 Pro4 / Motherboard | 90-MXB9V0-A0UAYZ

Special Features

• Supports 9th and 8th Gen Intel Core processors (Socket 1151)
• Supports DDR4 2666
• 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• AMD Quad CrossFireX
• Graphics output options: HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC892 audio codec), ELNA audio caps
• 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
• 8 USB 3.1 Gen 1 (2 front, 5 rear, 1 Type-C)
• Intel Gigabit LAN

Product features

• Rule your own lighting way - Polychrome RGB
  This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
• XXL aluminum alloy heatsink
  Extra-large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
• Full-coverage M.2 heatsink
  A massive full-coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always working at its best.
• Intel LAN
  Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
• Digi Power
  This motherboard uses a next-generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.
• ELNA audio caps
  Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
• Full Spike Protection
  Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
