ASRock B365M-HDV / Motherboard / micro ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB9R0-A0UAYZ
Description
High-density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

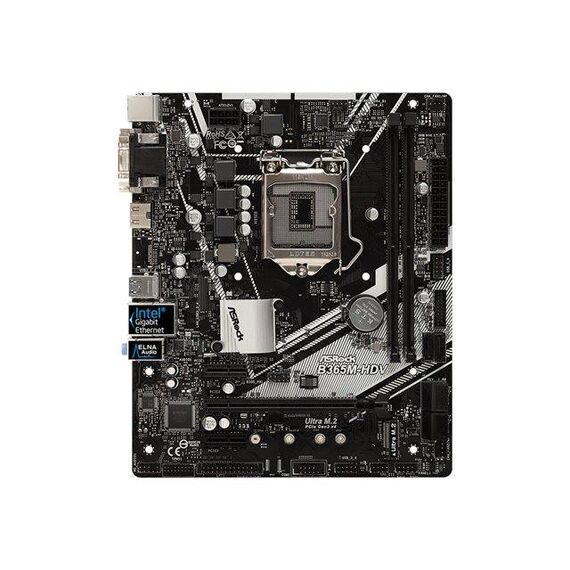

ASRock B365M-HDV / Motherboard | 90-MXB9R0-A0UAYZ
Special Features
- Triple monitor
- 3 graphics outputs
Product features
- Triple monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports triple monitor. You may choose up to three display interfaces from the rear I/O to connect monitors and use them simultaneously without installing another graphics card. - 3 graphics outputs
Complete with all three types of popular connectors! Packed with a D-Sub + DVI-D + HDMI combo.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B365 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 9th and 8th Generation Intel Core, Maximum TDP 95W) |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 4 x USB 3.1 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x parallel - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock Internet Flash, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2 |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 22.6 cm |
| Depth | 18.8 cm |
Features - Asrock - 90-MXB9R0-A0UAYZ
More Details
Product Code
04:309577
EAN Code
4717677338157
Manufacturer
Asrock
