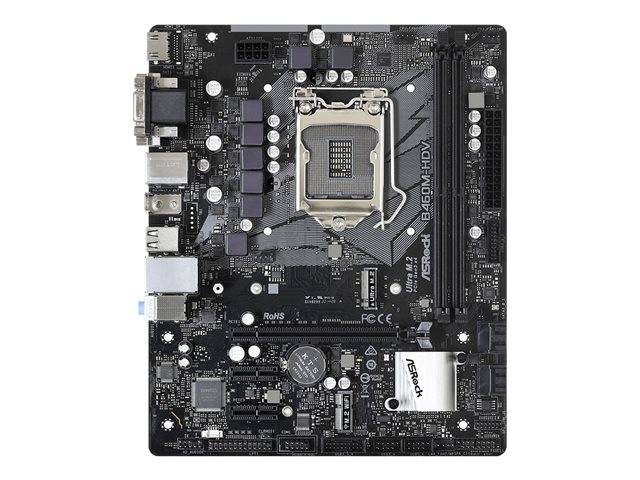

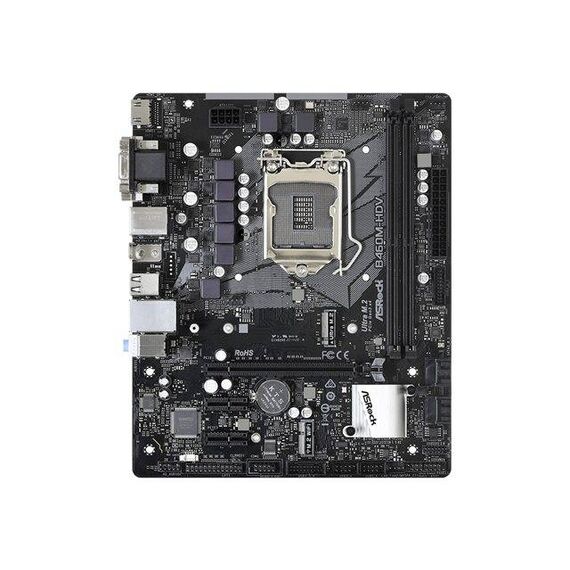

ASRock B460M-HDV / Motherboard / micro ATX / LGA1200 Socket / B460 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBD30-A0UAYZ
90-MXBD30-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
ASRock B460M-HDV / Motherboard / micro ATX / LGA1200 Socket / B460 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBD30-A0UAYZ
Description
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs.Intel LAN provides great throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!The header provides a maximum of 2A power for supporting the most popular water pumps. Users also can adjust the voltage of a water pump to get higher cooling performance with lower noise.Some sensitive digital components on the motherboard are vulnerable to power surges: the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock B460M-HDV / Motherboard | 90-MXBD30-A0UAYZ
Special Features
- PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s
- Intel LAN provides great throughput performance, lower CPU utilization, and enhanced stability
- Complete with all three types of most used connectors: a D-Sub + DVI-D + HDMI combo
- Header provides a maximum of 2A power for supporting the most popular water pumps
- Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by unexpected voltage spikes
Product features
- Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. - Ultra M.2 32 Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs. - Intel LAN
Intel LAN provides great throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - Three graphics outputs
Complete with all three types of most used connectors: a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. - Water pump header
The header provides a maximum of 2A power for supporting the most popular water pumps. Users also can adjust the voltage of a water pump to get higher cooling performance with lower noise. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges: the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B460 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x serial - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, 7 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 50A Power Choke, Intel Turbo Boost Max Technology 3.0 |
| Included Accessories | I/O back plate, 2 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready, HDCP 2.3 |
| Width | 22.6 cm |
| Depth | 18.8 cm |
Features - Asrock - 90-MXBD30-A0UAYZ
More Details
Product Code
03:141676
EAN Code
4710483931307
Manufacturer
Asrock
