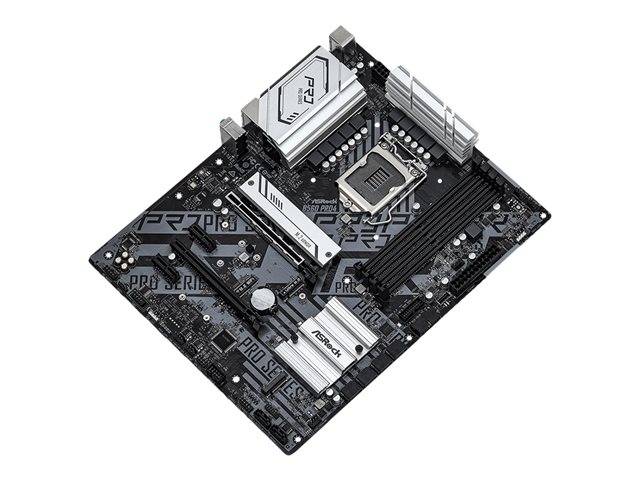

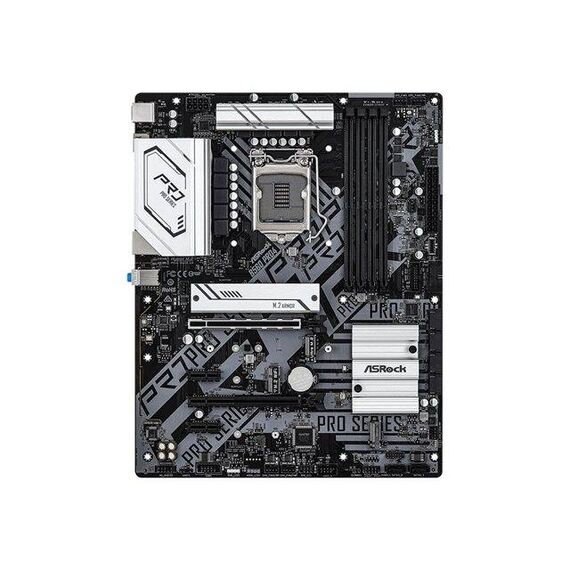

ASRock B560 Pro4 / Motherboard / ATX / LGA1200 Socket / B560 Chipset / USB-C Gen1, USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBF10-A0UAYZ
Special Features
- 8 phase power design
- Supports DDR4 4800 MHz (OC)
- 7.1 CH HD audio (Realtek ALC897 audio codec), Nahimic audio
- Intel Gigabit LAN
- ASRock Polychrome SYNC
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B560 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 2933 MHz, 4600 MHz (O.C.), 4800 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x16, x4 mode; single card: x16 mode; PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Interfaces | 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x serial - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 2 x USB 2.0 - header ¦ 1 x USB-C Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | 8 Phase Power Design, ASRock Instant Flash, HDCP compliant, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Premium 50A Power Choke, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 |
| Included Accessories | I/O back plate, 4 x M.2 screws, standoff for M.2 socket |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBF10-A0UAYZ
More Details
Product Code
03:152997
EAN Code
4710483933721
Manufacturer
Asrock
