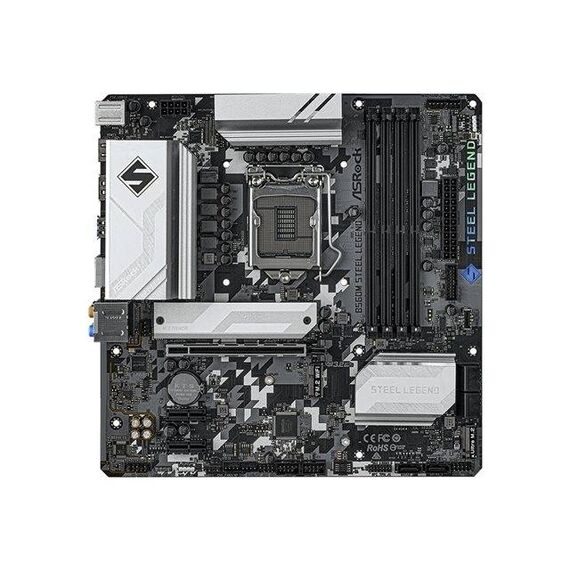

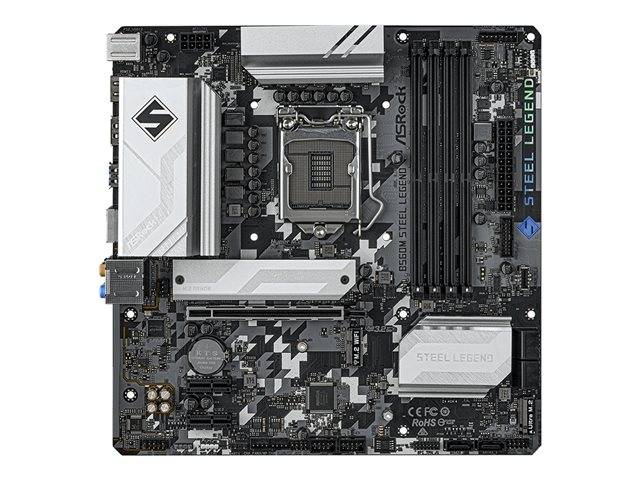

ASRock B560M Steel Legend / Motherboard / micro ATX / LGA1200 Socket / B560 Chipset / USB 3.2 Gen 1, USB-C Gen 2x2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBFA0-A0UAYZ
Description
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts!
ASRock B560M Steel Legend / Motherboard | 90-MXBFA0-A0UAYZ
Special Features
- Style in details - sturdy components
- PCIe 4.0 High Speed M.2 solution
- Polychrome RGB
- Nahimic Audio
- USB 3.2 Gen2x2 Type-C
- Dragon 2.5 Gb/s LAN
- Full Spike Protection
Product features
- Rule your own lighting way - polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B560 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th and 11th Generation Intel Core) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 4800 MHz (O.C.), 4666 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| Interfaces | 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x TOSLINK ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out (center/subwoofer) ¦ 1 x audio line-out (rear) |
| Internal Interfaces | 1 x USB-C Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, ASRock Live Update, 10 Phase Power Design, ASRock EZ Mode, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium 60A Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 |
| Included Accessories | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBFA0-A0UAYZ
More Details
Product Code
03:156091
EAN Code
4710483934179
Manufacturer
Asrock
