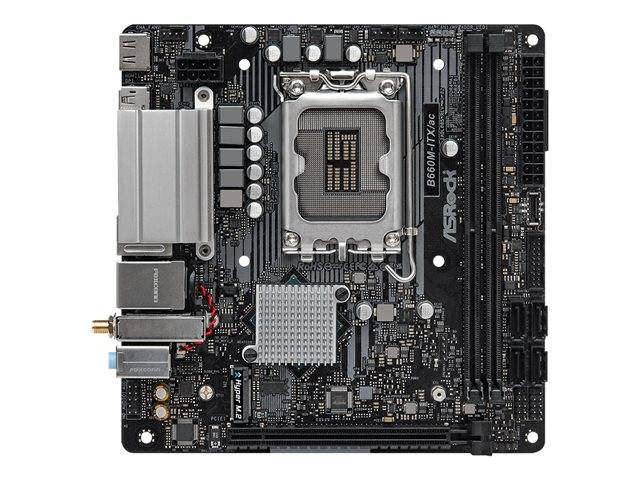

ASRock B660M-ITX/ac / Motherboard / mini ITX / LGA1700 Socket / B660 Chipset / USB-C Gen1, USB 3.2 Gen 1 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBHG0-A0UAYZ
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B660 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 5000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Hyper M.2, Intel Hybrid Technology |
| Included Accessories | I/O back plate, 1 x M.2 screw, 2 x ASRock WiFi 2.4/5GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ERP |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asrock - 90-MXBHG0-A0UAYZ
CPU Socket
- Socket 1700
More Details
Product Code
03:191873
EAN Code
-
Manufacturer
Asrock
