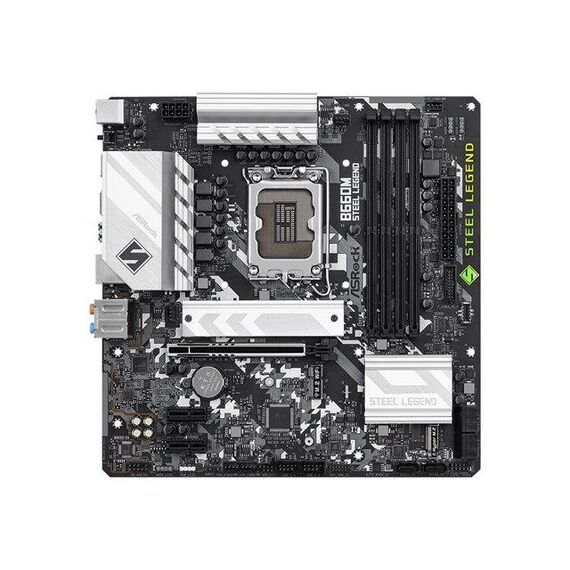

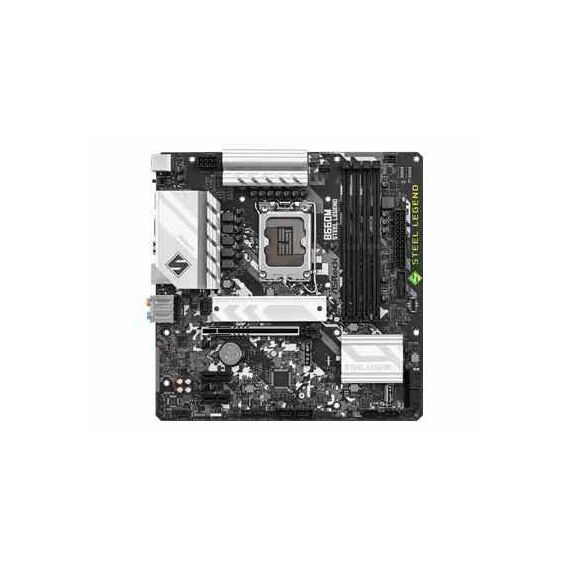

ASRock B660M Steel Legend / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB 3.2 Gen 1, USB-C Gen 2x2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBH30-A0UAYZ
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B660 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 5000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium Power Choke, 9 Phase Power Design, 2oz Copper PCB, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock USB 3.2 Gen2, Intel Hybrid Technology |
| Included Accessories | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBH30-A0UAYZ
CPU Socket
- Socket 1700
More Details
Product Code
07:125845
EAN Code
4710483936999
Manufacturer
Asrock
