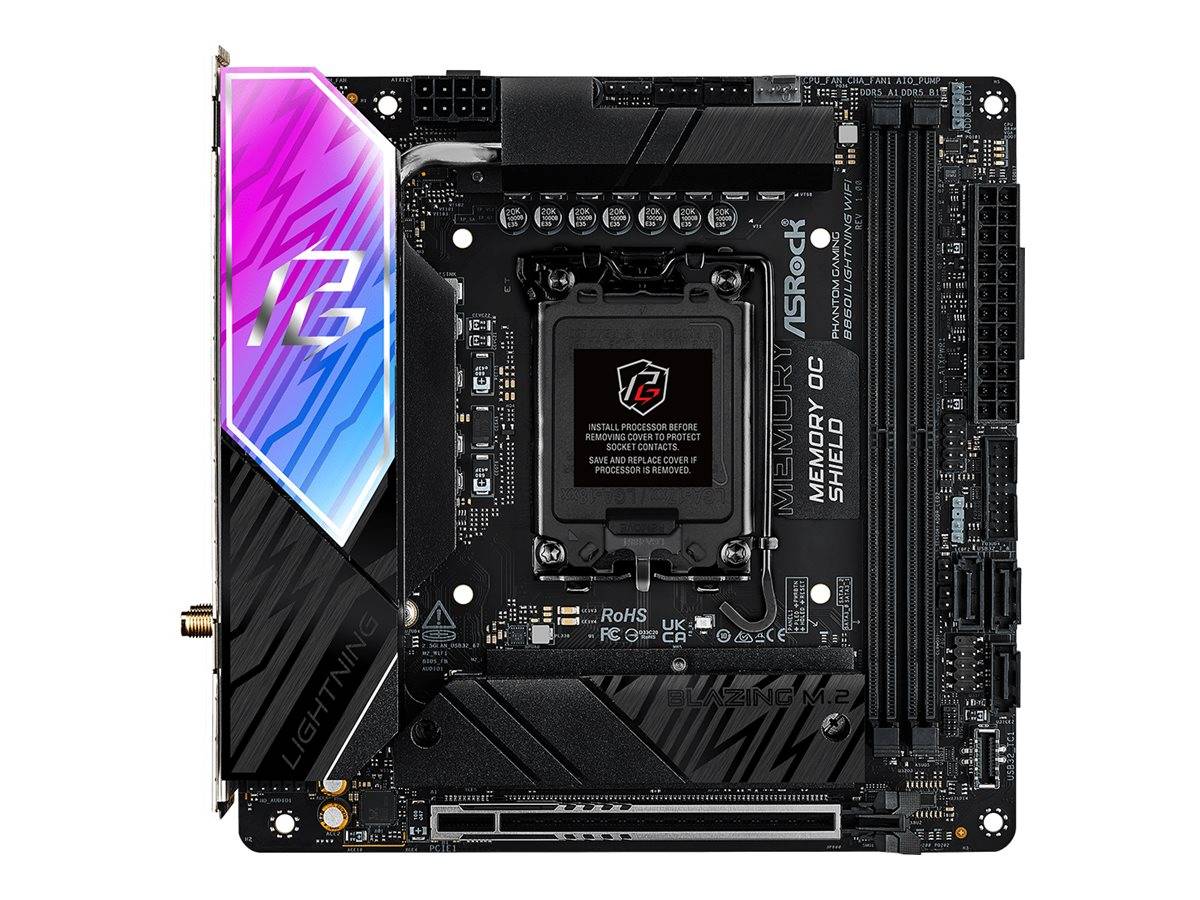

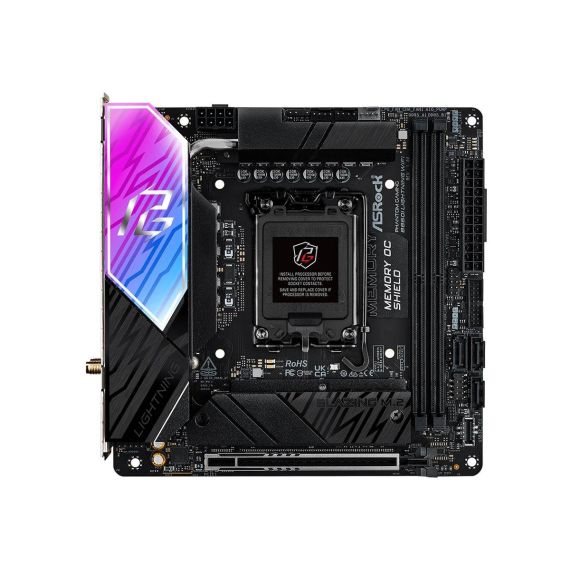

ASRock Phantom Gaming B860I Lightning WiFi / Motherboard / mini ITX / LGA1851 Socket / B860 Chipset / USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-c | 90-MXBRZ0-A0UAYZ
ASRock Phantom Gaming B860I Lightning WiFi / Motherboard / mini ITX / LGA1851 Socket / B860 Chipset / USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-c | 90-MXBRZ0-A0UAYZ
€290.05 inc. VAT
90-MXBRZ0-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient dual-channel memory architecture
Supports dual-channel memory architecture for improved data throughput, making it ideal for multitasking and high-performance applications. - Advanced cooling solutions
Equipped with an enlarged heatsink armor and M.2 heatsink for better thermal management ensuring stable performance during intensive usage. - Extensive connectivity options
Offers a variety of interfaces including USB-C, HDMI, and a 2.5 Gigabit Ethernet port, providing users with versatile connectivity for peripherals and network devices. - User-friendly features
Includes user-centric features like ASRock Instant Flash and a BIOS FlashBack button for simplified system management and updates.
Special Features
- Compact mini ITX form factor for space-saving builds
- High performance with support for DDR5 RAM speeds up to 9333 MHz
- Multiple connectivity options, including dual LAN
- High definition audio output supported by Realtek ALC1220 codec
- DIY-friendly design with features like BIOS FlashBack and pre-mounted I/O shield
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 9333 MHz (O.C.), 6800 MHz (O.C.), 6400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (2230 M.2 Key E slot) 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 3 x 7pin SATA - RAID 0 / RAID 1 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 1 x Hyper M.2 |
| Interfaces | 2 x aerial 1 x HDMI 1 x SPDIF out 1 x Thunderbolt 4 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 10+1+1+1+1 Power Phase Design, Enlarged Heatsink Armor, Memory OC Shield, pre-mounted I/O shield, 20K black capacitors, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), CUDIMM support, 10 Layer PCB, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, ASRock Polychrome RGB, Surface Mount Technology (SMT), VRM heatsink design, M.2 heatsink, Smart Power Stage (SPS) technology, aluminium heatsink design, enlarged M.2 heatsink, metal backplate, chipset heatsink, Nahimic Audio Enhacer, DIY Friendly Design, ASRock Steel Slots |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x ASRock WiFi 2.4/5/6 GHz Antennas, thermistor cable, 2 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock Phantom Gaming LAN Software, ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC |
| Compliant Standards | HDCP 2.3, FCC, ErP Ready, EuP Ready |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asrock - 90-MXBRZ0-A0UAYZ
More Details
Product Code
04:519469
EAN Code
4711581490420
Manufacturer
Asrock
