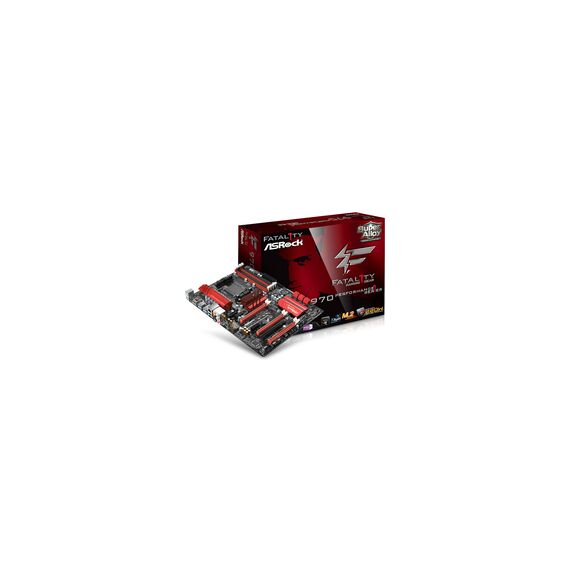

ASRock Fatal1ty 970 Performance / Motherboard ATX / Socket AM3+ / AMD 970 / USB 3.0
970 PERFORMANCE
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Asrock 970 PERFORMANCE ASRock Fatal1ty 970 Performance / Motherboard ATX / Socket AM3+ / AMD 970 / USB 3.0
Supports 220W AMD FX 9590 & 9370 CPUsThis ASRock motherboard supports AMD FX 9590 & 9370 CPUs which delivers up to eight cores of unlocked performance, massive overclocking headroom, plus a thermal design power of 220W.
AM3 8-Core Processor Support
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
Digi Power
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM Pulse-Width Modulation design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
8 2 Power Phase Design
Designed with a 8 2 Power Phase Design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
M.2 Socket PCIe Gen2 x4 & SATA3
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor NGFF solid state drives or other devices. ASRock supports M.2 SATA3 6.0 Gb/s modules and M.2 PCI Express modules up to Gen2 x4 20 Gb/s, which is 4X faster compared to other M.2 Gen2 x1 solutions that are limited to 5 Gb/s. It pushes your NGFF SSDs to their limits while reducing tons of loading time and boosting overall performance.
DuraCap
This motherboard uses ASRock DuraCaps that are 100% made in Japan. These special capacitors feature an all solid high quality conductive polymer design that brings ultra stable performance and long lasting durability to up to 2.5 times longer lifespan.
Purity Sound 2
Purity Sound 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound 2.
This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's 2.0dB at 20 Hz bass low freq area, Purity Sound 2 still maintains its frequency response 0.4dB and provides better bass with the TI® NE5532 amplifier, improving the bass quality by 20% 1.6dB!
Key Master
What good is a weapon if you are unable to wield it proficiently Key Master consists of two major features, Sniper Key and Macro Key. It can enhance your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay, turning your boring old keyboard and mouse into lethal weapons. Key Master may be prohibited by some games. We suggest disabling Key Master if it violates the game's end user license agreement.
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities, including Key Master, Fatal1ty Mouse Port, EZ OC, Auto Tuning, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
X-Boost
ASRocks X-Boost Technology is a smart auto-overclocking function and is brilliantly designed to unlock the hidden cores of your CPUs. Simply press "X" when turning on the PC, X-Boost will automatically overclock the relative components to get up to 116% performance boost! With the smart X-Boost, overclocking CPU or unlock CPU cores can become a near one-button process.
The functionality of Unlock CPU Cores feature might vary by different processors.
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock OMG Online Management Guard
Limit and control your children's time spent on the internet. ASRock OMG Online Management Guard technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that dont have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more all without weighing you down.
Tired of listening to crappy audio that makes your ears bleed Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.
Feature list
| Supported memory types: | DDR3-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual |
| ECC: | N |
| Non-ECC: | Y |
| Supported memory clock speeds: | 1066, 1333 MHz |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | Y |
| Memory slots: | 4 |
| Processor family: | AMD |
| Compatible processor series: | Athlon II X2, Athlon II X3, Athlon II X4, Phenom II X2, Phenom II X3, Phenom II X4, Phenom II X6, Sempron |
| Processor socket: | Socket AM3 |
| USB 2.0 connectors: | 3 |
| USB 3.0 connectors: | 1 |
| Supported hard disk drive interfaces: | Serial ATA III |
| CPU fan connector: | Y |
| Number of COM connectors: | 1 |
| ATX Power connector 24-pin: | Y |
| Number of chassis fan connectors: | 3 |
| Front panel audio connector: | Y |
| TPM connector: | Y |
| PCI Express power connectors 6-pin: | 2 |
| Number of SATA III connectors: | 6 |
| EPS power connector 8-pin: | Y |
| USB 2.0 ports quantity: | 4 |
| USB 3.0 ports quantity: | 4 |
| Ethernet LAN RJ-45 ports: | 1 |
| PS/2 ports quantity: | 2 |
| Headphone outputs: | 5 |
| Microphone in: | Y |
| S/PDIF out port: | Y |
| Ethernet LAN: | Y |
| LAN controller: | Realtek RTL8111GR |
| Wake-on-LAN ready: | Y |
| Ethernet interface type: | Gigabit |
| Component for: | PC |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD 970 |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 |
| RAID levels: | 0, 1, 5, 10 |
| Audio system: | Realtek ALC1150 |
| Motherboard southbridge: | AMD SB950 |
| Windows operating systems supported: | Y |
| Certification: | - FCC, CE, WHQL- ErP/EuP ready ErP/EuP ready power supply is required |
| Parallel processing technology support: | 3-Way CrossFireX |
| PCI Express x1 Gen 2.x slots: | 2 |
| PCI Express x16 Gen 2.x slots: | 3 |
| PCI slots: | 1 |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 32 MB |
| ACPI version: | 1.1 |
| Cables included: | SATA |
| Drivers included: | Y |
| Trial software: | AntiVirus Software, Start8 |
| Quick installation guide: | Y |
Features - Asrock - 970 PERFORMANCE
More Details
Product Code
Q120571
EAN Code
4717677325362
Manufacturer
Asrock
