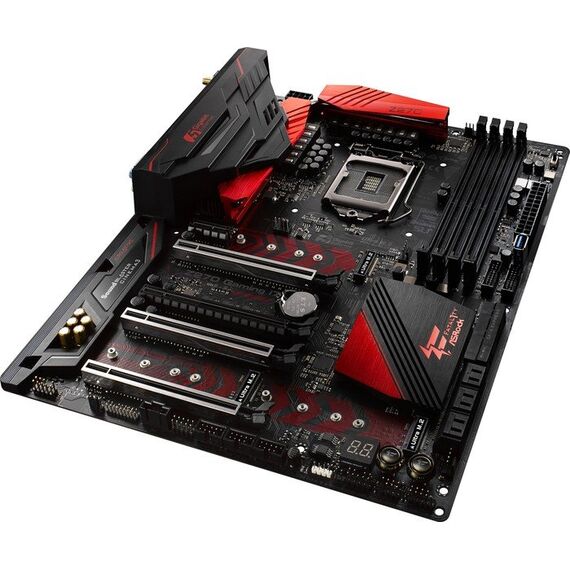

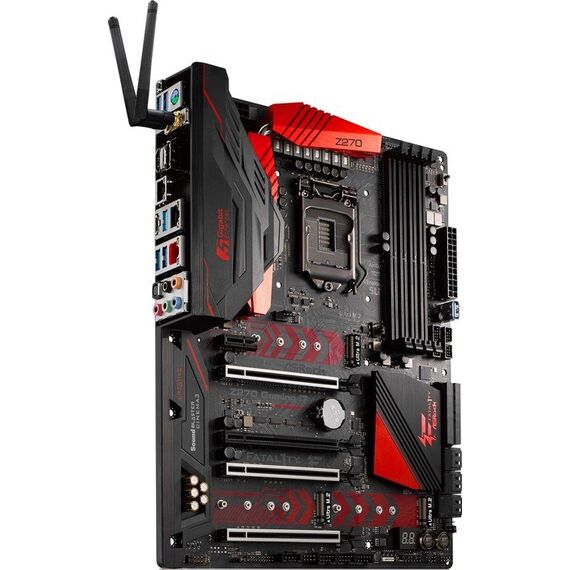

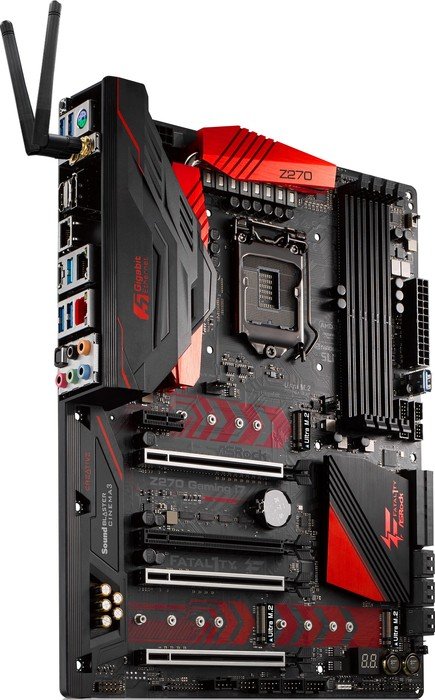

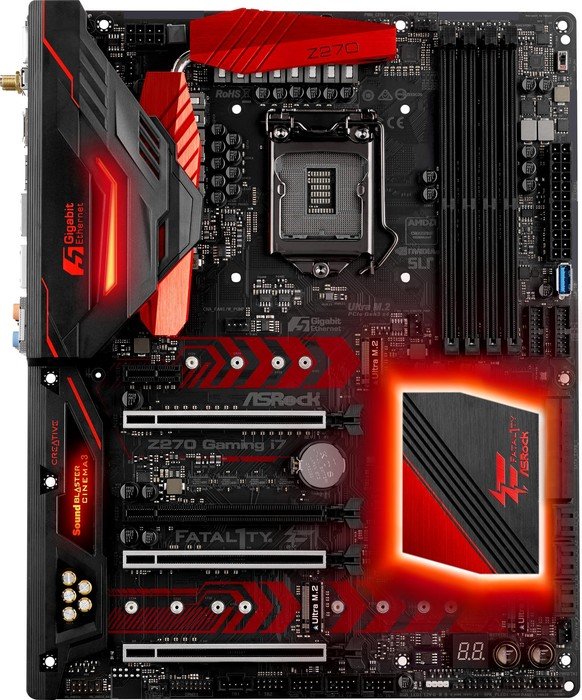

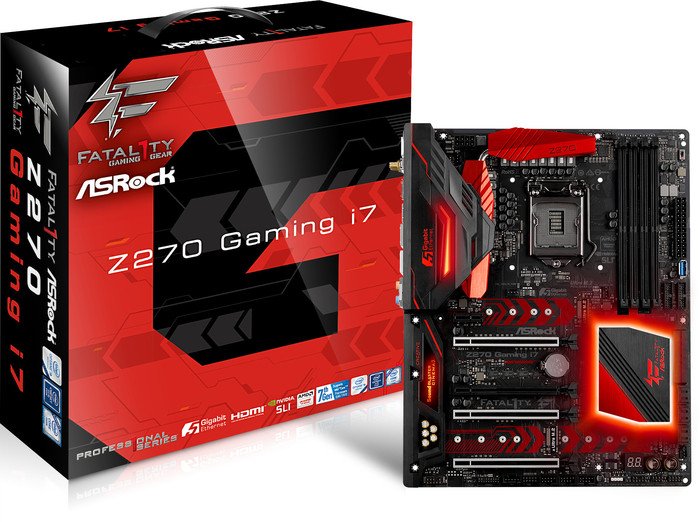

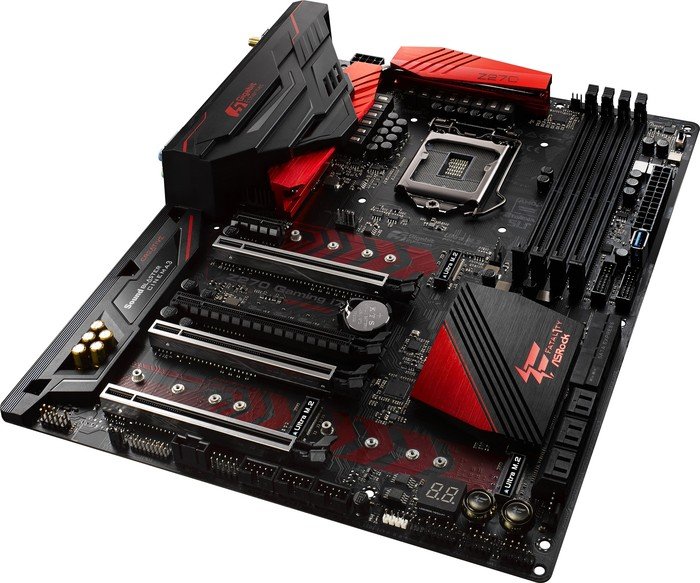

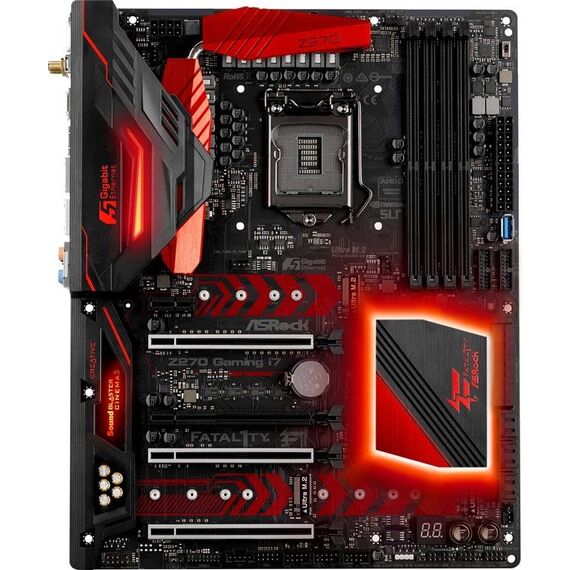

ASRock Fatal1ty Z270 Professional Gaming i7 / Motherboard / ATX / LGA1151 Socket / Z270 / USB 3.0, USB 3.1, USB-C / Bluetooth, 2 x Gigabit LAN, Wi-Fi, 5 x Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB430-A0UAYZ
ASRock Fatal1ty Z270 Professional Gaming i7 / Motherboard / ATX / LGA1151 Socket / Z270 / USB 3.0, USB 3.1, USB-C / Bluetooth, 2 x Gigabit LAN, Wi-Fi, 5 x Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB430-A0UAYZ
Description Prepare yourself well to enjoy the impressive world of virtual reality. Before that, you have to make sure everything is qualified, including hardware. Motherboard is the key to connect every critical component and ASRock's VR ready motherboards are definitely the one you're looking for. The premium qualify is assured by rigorous development. The sturdy components and rock-slid performance make you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z270 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0 |
Max Allocated RAM Size | 1024 MB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1220 |
Compliant Standards | High Definition Audio, Premium Blu-ray audio support, Sound Blaster Cinema 3 |
Network Controller | Intel I219V / I211-AT / Aquantia AQC108 |
Network Interfaces | Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac, 5 x Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 (dual: x8 mode; triple: x8, x4, x4 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket ¦ 3 x Ultra M.2 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA ¦ -connectors: 2 x SATA Express port |
RAID Features | Intel Rapid Storage Technology |

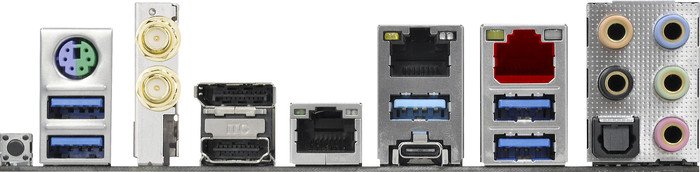

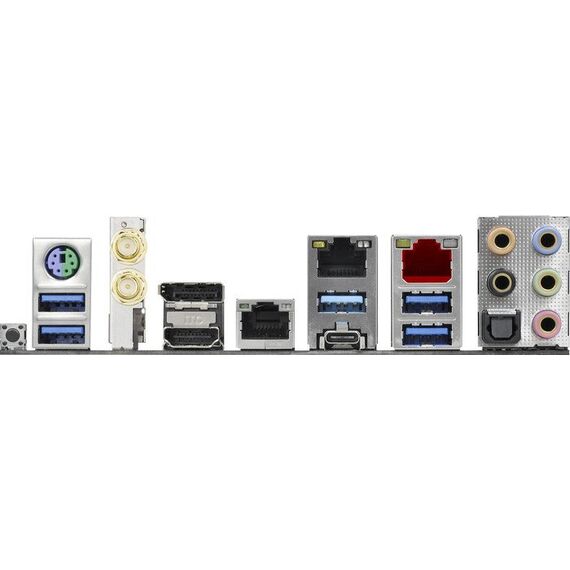

Interfaces | 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x SPDIF out ¦ 1 x USB 3.1 ¦ 1 x USB-C ¦ 1 x USB-C ¦ 4 x USB 3.0 ¦ 3 x LAN ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
Internal Interfaces | 3 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
Manual Settings | Processor core voltage, memory voltage |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | NVIDIA SLI Technology Support, 12 Phase Power Design, ASRock Instant Flash, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Dual-Stack MOSFET (DSM), ASRock UEFI System Browser, ASRock F-Stream, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Key Master, Supports Intel K-Series unlocked CPU, ASRock BCLK, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Nichicon Fine Gold Series Audio Capacitors, I/O Armor, ASRock Live Update, ASRock EZ Mode, TI Burr Brown NE5532 operational amplifier, AURA RGB Lighting Control, ASRock Ultra M.2, ASRock Hyper BCLK Engine II, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium 60A Power Choke |
Included Accessories | ASRock SLI_Bridge_2S Card, 2 x ASRock WiFi 2.4/5GHz Antennas, 3 x M.2 screws, ASRock SLI_HB_Bridge_2S Card |
Cables Included | 4 x Serial ATA cable |
Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
Compliant Standards | WHQL, FCC, EuP Ready, ErP Ready |
Width | 30.5 cm |
Depth | 24.4 cm |
