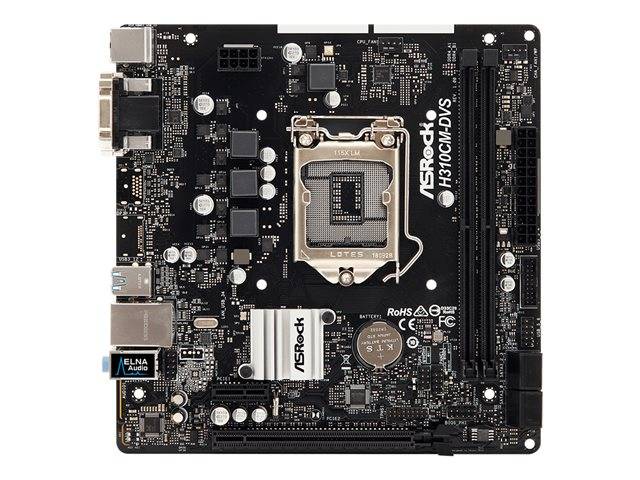

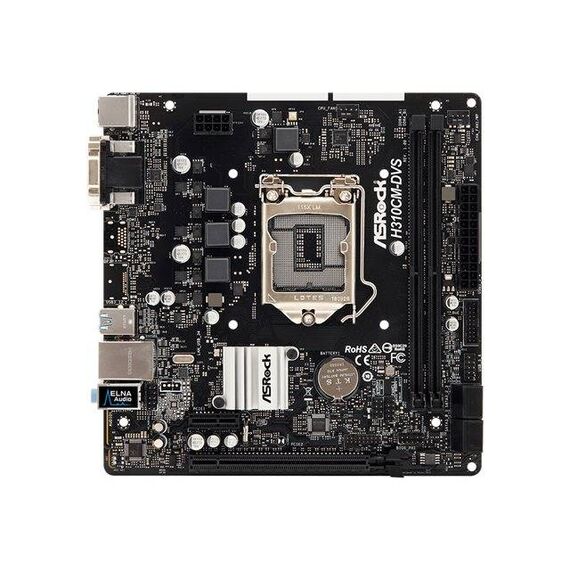

ASRock H310CM-DVS / Motherboard / micro ATX / LGA1151 Socket / H310 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB8K0-A0UAYZ

Brand: Asrock

CODE (SKU):

90-MXB8K0-A0UAYZ

€47.98 €52.15

€57.10 inc. VAT

Out of stock

Add to wish list Ask a question

Product Code03:540311 EAN Code4717677336412 ManufacturerAsrock

Sales 8%

Find similar

Delivery

Payment options

Description
Features

ASRock H310CM-DVS / Motherboard / micro ATX / LGA1151 Socket / H310 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB8K0-A0UAYZ

Description

High-density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

ASRock H310CM-DVS / Motherboard / micro ATX / LGA1151 Socket / H310 / USB 3.1 Gen 1 | 90-MXB8K0-A0UAYZ

Special Features

Solid capacitor design
Superior audio caps

Product features

Solid capacitor design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Superior audio caps
ASRock applied superior audio capacitors on these motherboards! This is the key to reduce noise level significantly and satisfy the audiophiles.

Product Specification

Product Type	Motherboard - micro ATX
Chipset Type	Intel H310
Processor Socket	LGA1151 Socket
Max Processors Qty	1
Compatible Processors	Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7, Maximum TDP 95 Watt)
Max Size	32 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC887
Compliant Standards	High Definition Audio
Network Controller	Realtek RTL8111H
Network Interfaces	Gigabit Ethernet
Expansion Slots	1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x1
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA
Interfaces	1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA
Internal Interfaces	2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
BIOS Type	AMI
BIOS Features	Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up	Wake on LAN (WOL)
Hardware Features	4 Phase Power Design, ASRock Instant Flash, All-Solid Capacitor motherboard Design, HDCP compliant, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock Internet Flash, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode
Included Accessories	I/O back plate
Cables Included	2 x Serial ATA cable
Software Included	Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant Standards	FCC, EuP Ready, ErP Ready
Width	19.1 cm
Depth	18.8 cm
Service & Support	Limited warranty - 3 years
