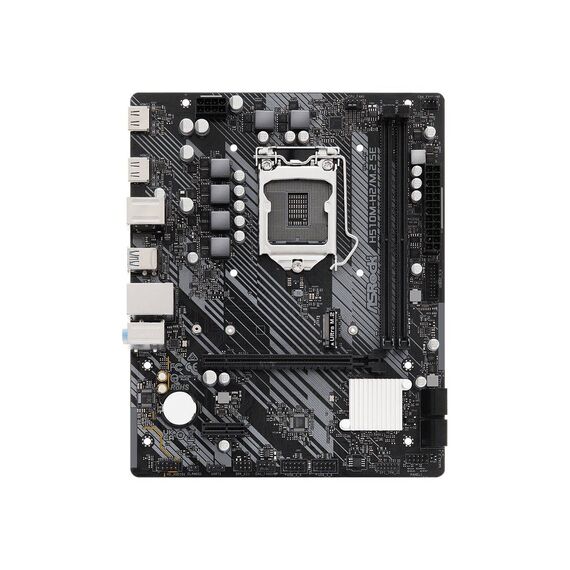

ASRock H510M-H2/M.2 SE / Motherboard / micro ATX / LGA1200 Socket / H510 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBMQ0-A0UAYZ
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H510 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th and 11th Generation Intel Core) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 2 x HDMI ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 4 Phase Power Design, ASRock Instant Flash, 15µ Gold Finger, ASRock A-Tuning, ASRock Full Spike Protection, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock EZ Mode, Intel Turbo Boost Max Technology 3.0, ASRock Auto Driver Installer |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 screw, IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 23.1 cm |
| Depth | 18.7 cm |
Features - Asrock - 90-MXBMQ0-A0UAYZ
CPU Socket
- Socket 1200
More Details
Product Code
04:458262
EAN Code
4710483944192
Manufacturer
Asrock
