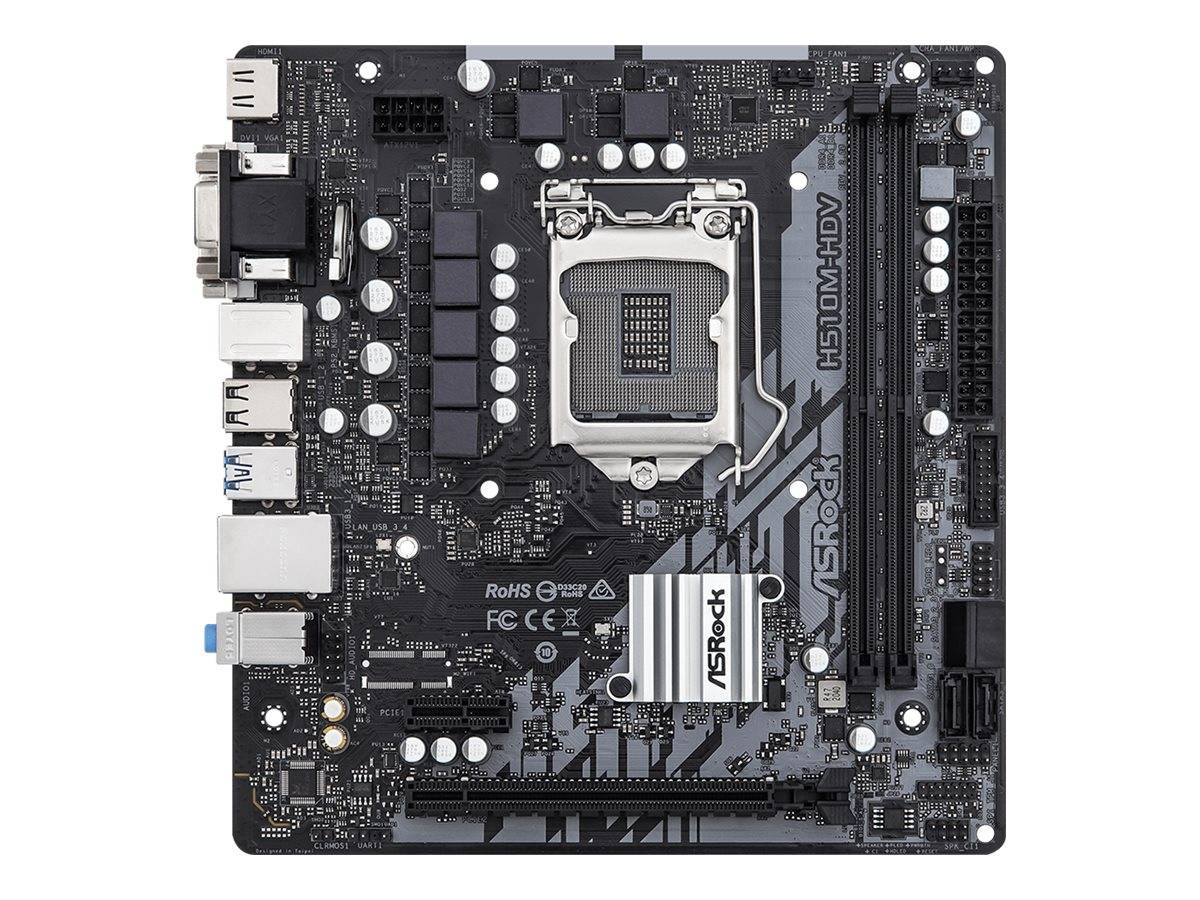

ASRock H510M-HDV R2.0 / Motherboard / micro ATX / LGA1200 Socket / H510 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBGS0-A0UAYZ

90-MXBGS0-A0UAYZ
67.90
73.80
(80.80 inc. VAT) You save: 5.90
Out of stock
Find similar
Delivery
Payment options
Product Code04:399765 EAN Code4710483935022 ManufacturerAsrock

Product Features

  • Premium 50A power choke
    ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
  • Clever access memory
    Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
  • Base frequency boost (BFB) technology
    Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
  • HDMI 4k @60Hz
    Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
  • High density glass fabric PCB
    High density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
  • 3 graphics outputs
    Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
  • Water pump header
    This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
  • Full spike protection
    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Special Features

  • Premium 50A power choke
  • Clever access memory
  • Base frequency boost (BFB) technology
  • High density glass fabric PCB
  • 3 graphics outputs
  • Water pump header
  • Full spike protection

Product Specification

Product Type Motherboard - micro ATX
Chipset Type Intel H510
Processor Socket LGA1200 Socket
Max Processors Qty 1
Compatible Processors (supports 10th and 11th Generation Intel Core)
Supported RAM Supported RAM
Max Size 64 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC887/ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Realtek RTL8111H
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 1 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA
RAID Features Intel Rapid Storage Technology
Interfaces 1 x HDMI ¦ 1 x VGA ¦ 1 x DVI-D ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 mouse
Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x speaker - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features ASRock Instant Flash, 5 Phase Power Design, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Premium 50A Power Choke, ASRock VR Ready, Intel Turbo Boost Max Technology 3.0
Miscellaneous Miscellaneous
Included Accessories I/O back plate
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant Standards FCC, EuP Ready, ErP Ready
Width 19.7 cm
Depth 18.8 cm

Features - Asrock - 90-MXBGS0-A0UAYZ

More Details
Product Code
04:399765
EAN Code
4710483935022
Manufacturer
Asrock
