ASRock H570 Phantom Gaming 4 / Motherboard / ATX / LGA1200 Socket / H570 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBFX0-A0UAYZ
Description
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
ASRock H570 Phantom Gaming 4 / Motherboard | 90-MXBFX0-A0UAYZ
Special Features
- 8 phase power design
- Supports DDR4 4800 MHz (OC)
- Intel Gigabit LAN
- ASRock Polychrome SYNC
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel H570 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th and 11th Generation Intel Core) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 4800 MHz (O.C.), 4666 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x16, x4 mode; single card: x16 mode) ¦ 3 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 |
| RAID Features | Intel Rapid Storage Technology |

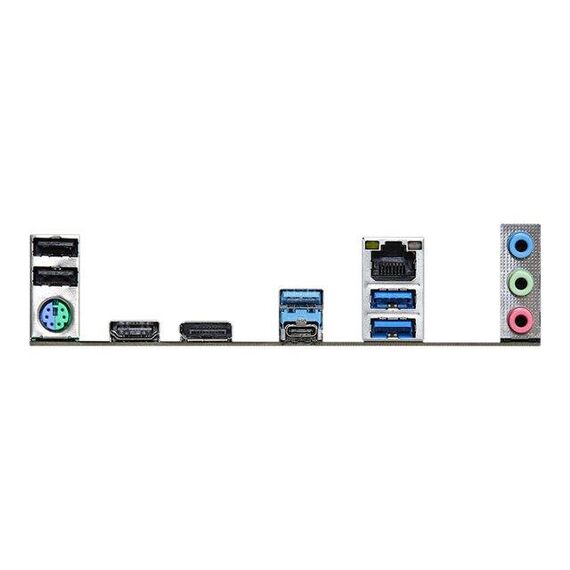

| Interfaces | 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 |
| Internal Interfaces | 1 x Thunderbolt - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | 8 Phase Power Design, ASRock Instant Flash, All-Solid Capacitor motherboard Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Premium 50A Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Hyper M.2 |
| Included Accessories | I/O back plate, 4 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBFX0-A0UAYZ
More Details
Product Code
03:152979
EAN Code
4710483934056
Manufacturer
Asrock
