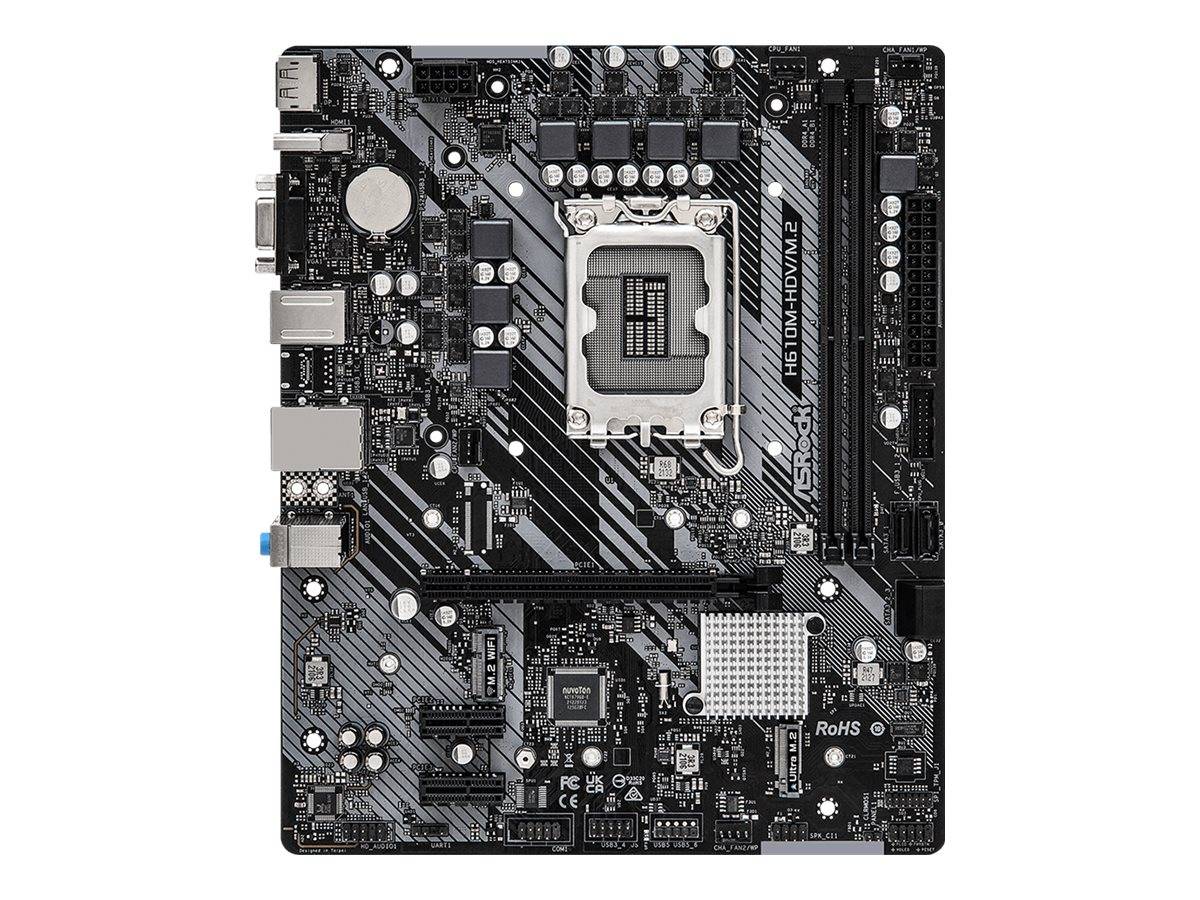

ASRock H610M-HDV/M.2 / Motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBH60-A0UAYZ

90-MXBH60-A0UAYZ
87.68
95.30
(104.34 inc. VAT) You save: 7.62
Out of stock
Find similar
Delivery
Payment options
Product Code07:125247 EAN Code4710483936517 ManufacturerAsrock CPU SocketSocket 1700

Product Features

  • Digi Power
    Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
  • Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
    The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
  • Intel Gigabit LAN
    Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
  • M.2 (KEY E) for Wi-Fi
    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
  • 3 graphics outputs
    Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
  • Premium power choke
    Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
  • Sapphire Black PCB
    Pure black PCB appearance. The Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
  • High Density Glass Fabric PCB
    High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
  • Full Spike Protection
    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Special Features

  • Digi Power
  • Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
  • Intel Gigabit LAN
  • M.2 (KEY E) for Wi-Fi
  • 3 graphics outputs
  • Premium power choke
  • Sapphire Black PCB
  • High Density Glass Fabric PCB
  • Full Spike Protection

Product Specification

Product Type Motherboard - micro ATX
Chipset Type Intel H610
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th Generation Intel Core)
Supported RAM Supported RAM
Max Size 64 GB
Technology DDR4
Bus Clock 3200 MHz
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC887/ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Intel I219V
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces 1 x audio - header ¦ 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features ASRock Instant Flash, HDCP compliant, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology
Miscellaneous Miscellaneous
Included Accessories I/O back plate, 2 x M.2 screws
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN
Compliant Standards FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Width 24.4 cm
Depth 20.1 cm
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years
