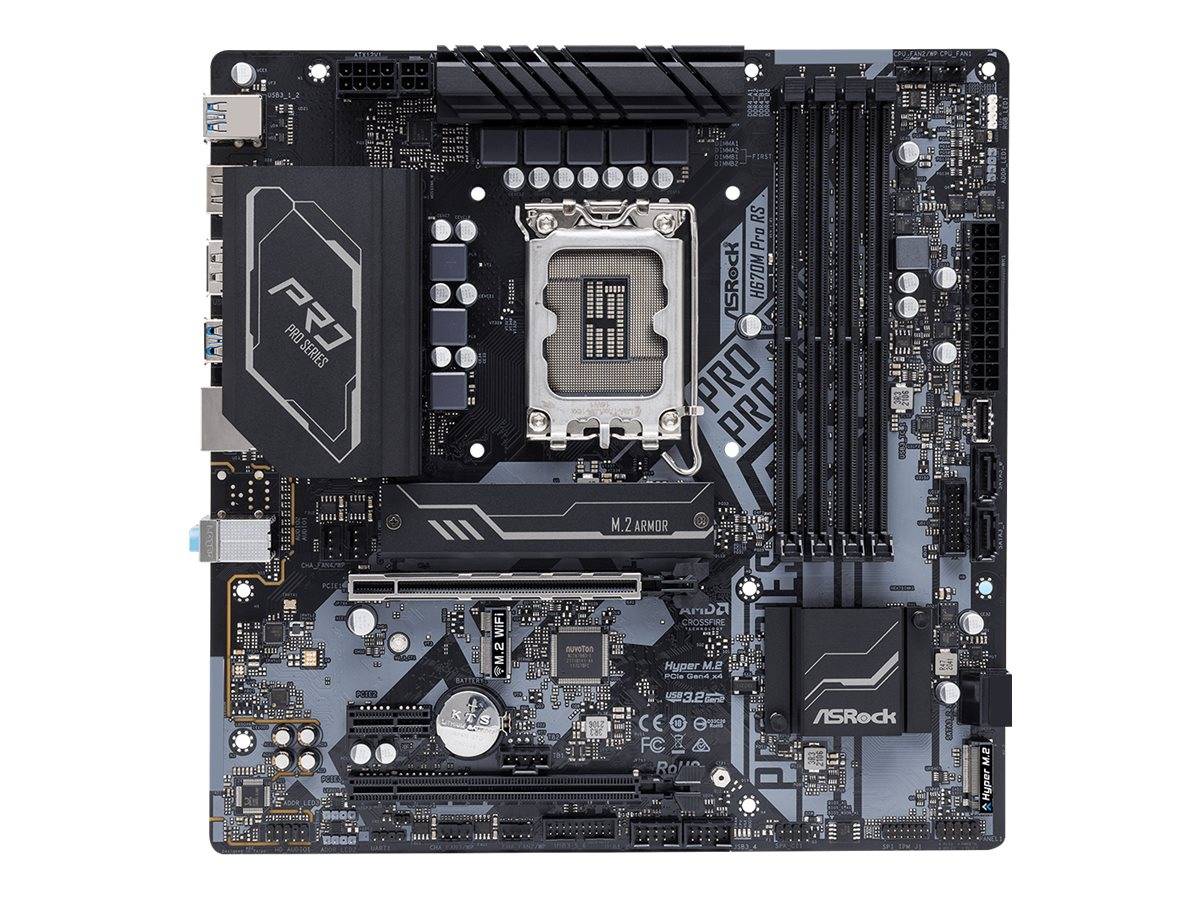

ASRock H670M Pro RS / Motherboard / micro ATX / LGA1700 Socket / H670 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBHK0-A0UAYZ
Please sign in so that we can notify you about a reply
Product Features
- Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - High Speed M.2 solution
This motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - M.2 (Key E) for WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Special Features
- Intel Gigabit LAN
- Nahimic Audio
- Polychrome RGB
- High Speed M.2 solution
- M.2 (Key E) for WiFi
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H670 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 4800 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) ¦ 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x USB-C Gen 1 - header ¦ 4 x USB 2.0 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, 7 Phase Power Design, AMD CrossFireX technology support, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock USB 3.2 Gen2, Intel Hybrid Technology |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBHK0-A0UAYZ
CPU Socket
- Socket 1700
More Details
Product Code
04:399430
EAN Code
4710483936555
Manufacturer
Asrock
