ASRock Jupiter A320 / Barebone / mini PC / Socket AM4 / AMD A320 / no CPU / RAM 0 GB / GigE | 90P2-6J00020
Description
Jupiter A320 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.
ASRock Jupiter A320 / Barebone | 90P2-6J00020
Special Features
- 3 video outputs
- Anti-thief & speaker chassis intrusion
- Native 2W speaker
- VESA mount & stand
Product features
- 3 video outputs
Supports up to 3 displays simultaneously - Anti-thief & speaker chassis intrusion
Get notification if chassis of Jupiter has been opened. - Native 2W speaker
Jupiter A320 adopts amplifier and 2 watt speaker. - VESA mount & stand

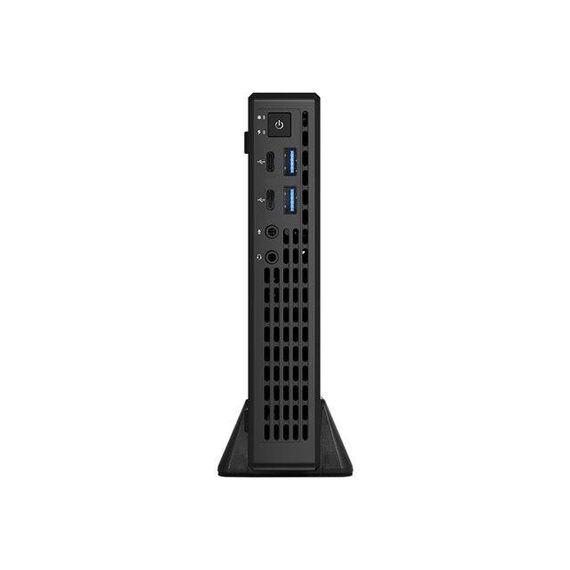

Tri-direction VESA mount let you mount Jupiter behind monitor. Vertical stand to save desk space.
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket AM4 |
| Chipset Type | AMD A320 |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Sound Output Mode | Stereo |
| Speakers Included | 1 x center channel |
| Ethernet Controller | Realtek RTL8111GN |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x USB-C 3.1 Gen 1 (2 in front) ¦ 4 x USB 3.1 Gen 1 (2 front, 2 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x microphone (1 in front) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | FCC |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| OS Provided | No operating system |
| Width | 17.8 cm |
| Depth | 17.8 cm |
| Height | 3.4 cm |
