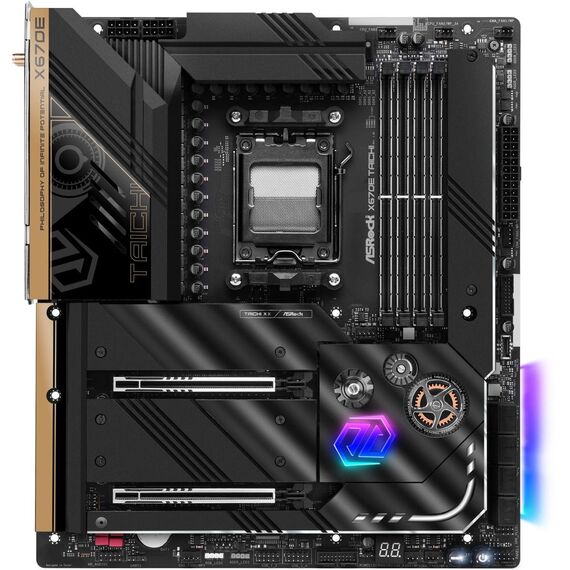

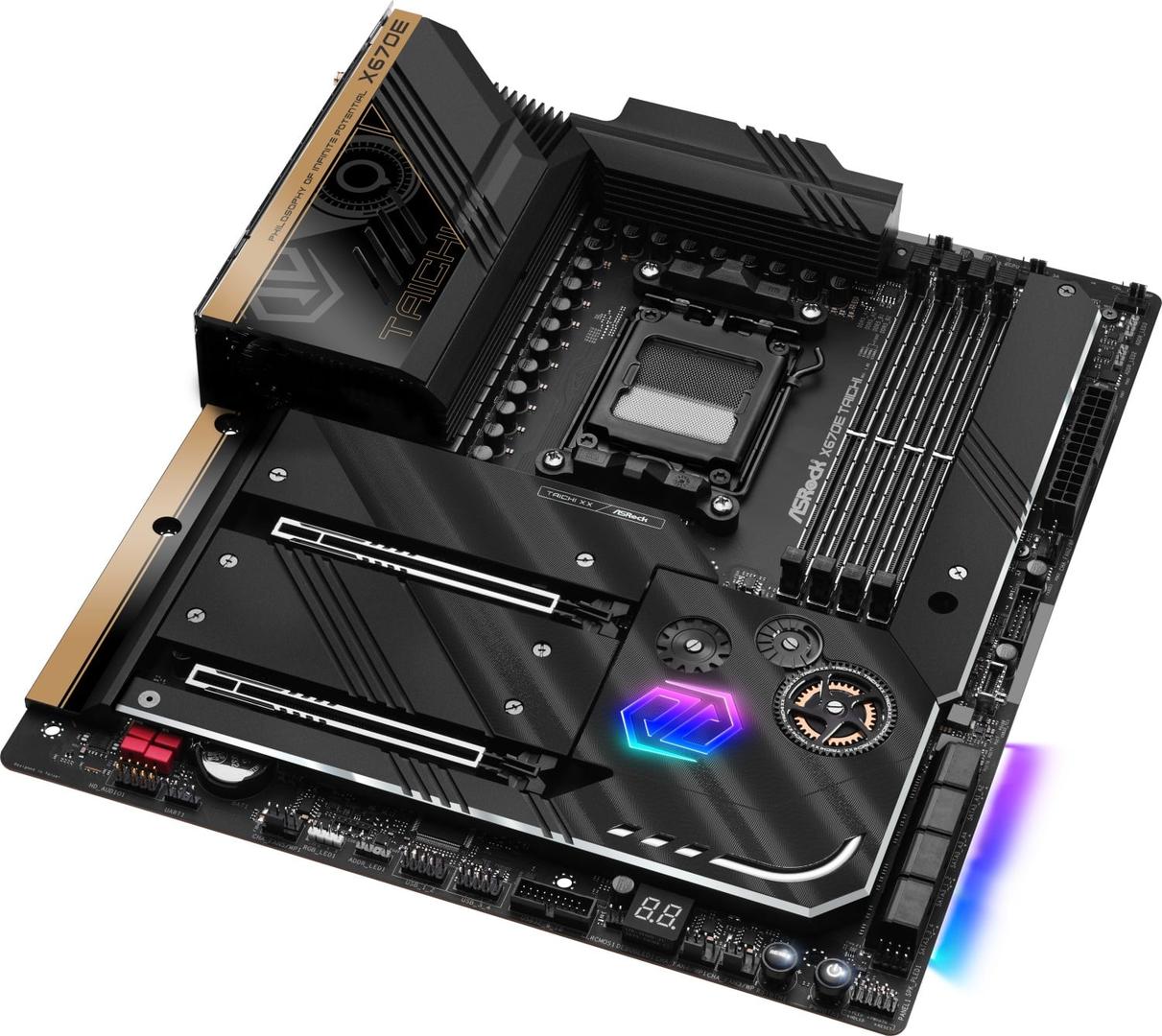

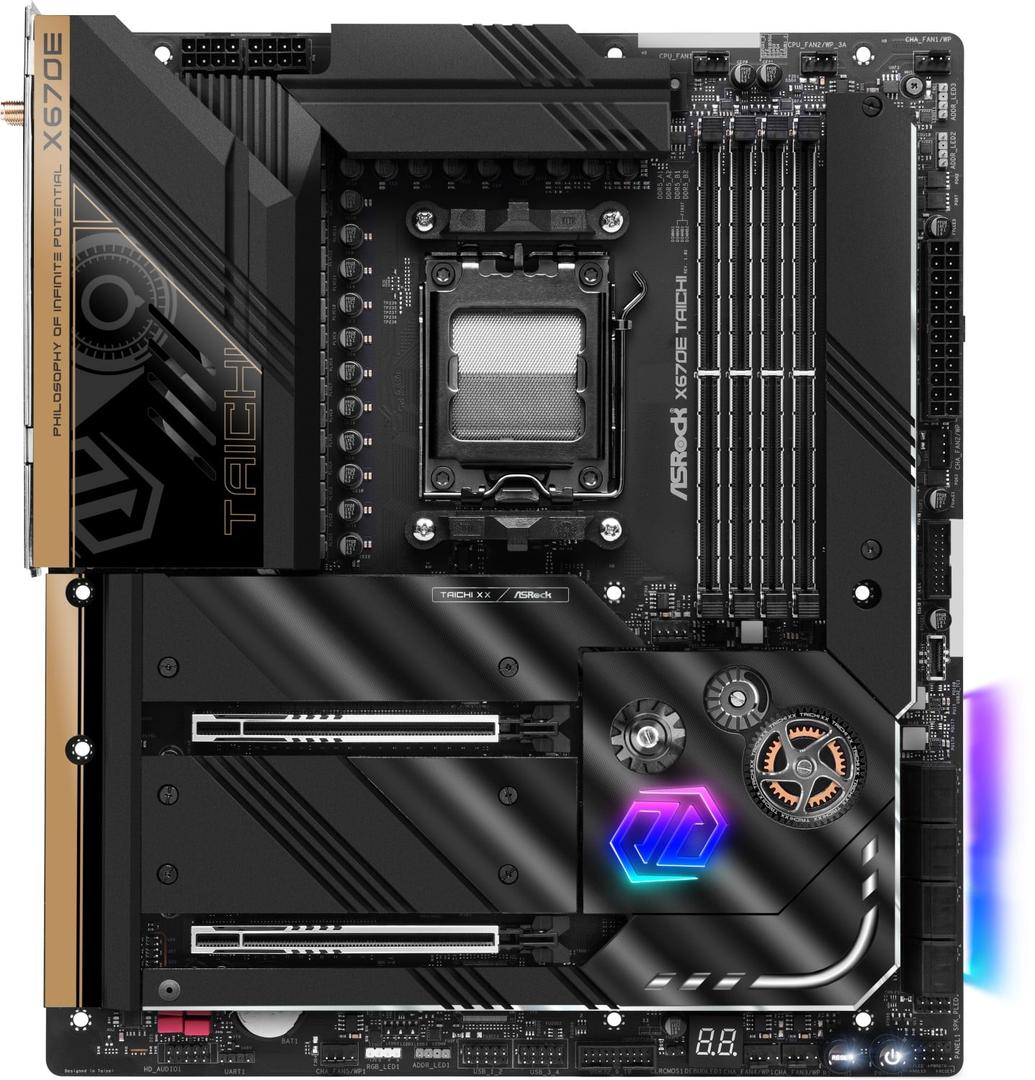

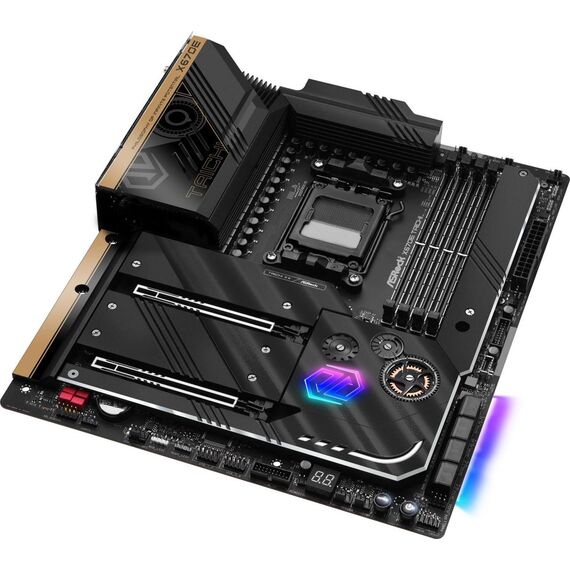

ASRock X670E Taichi / Motherboard / extended ATX / Socket AM5 / AMD X670E Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 / Bluetooth, 2.5 Gigabit LAN, Wi-Fi 6 / onboard graphics (CPU required) / HD Audio (5.1-channel) | 90-MXBJ00-A0UAYZ

Product Features

• Optimized VRM design
  Dr.MOS design features the SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smooth and neat power to the CPU with enhanced performance and OC capability.
• Premium PCB design
  The server-grade low-loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver extreme memory performance.
• Extreme overclocking performance
  Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. All X670E motherboards are built with 8-layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6600 MHz and beyond by enabling the pretested profiles.
• Composite VRM heatsink
  It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.
• DDR5 memory with protection circuit
  The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
• High-speed M.2 solution
  The Blazing M.2 accommodates the PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128 GB/s transfer speed, it is ready to unleash the full potential of ultrafast SSDs.
• PCIe 5.0 + surface-mount tech
  Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximizes stability under high speed, a key breakthrough to fully support the lighting speed of the PCIe 5.0 standard.
• Killer networking
  The Killer Ethernet controller is designed especially for competitive gamers and performance-hungry users, this motherboard features both Killer E3100 2.5G Ethernet and Wi-Fi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
• USB4 Type-C
  USB4 technology brings speed and versatility to the advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40 Gbps.
• Lightning Gaming ports
  Aimed for die hard gamers and enthusiasts! Lightning Gaming ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
• Polychrome RGB
  In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
• Wi-Fi 6E 802.11ax
  Wi-Fi 6E technology has extended to the 6 GHz spectrum band, providing more Wi-Fi capability and giving a good and fast Internet traffic. In addition to deliver high speeds, the Wi-Fi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
• USB 3.2 Gen 2x2 Type-C
  The USB 3.2 Gen 2x2 Type-C delivers up to 20 Gbps data transfer rate.

Special Features

• Supports AMD Ryzen 7000 series processors
• 24+2+1-phase power design, SPS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 6600+(OC)
• 2 PCIe 5.0 x16
• Graphics output options: 2 USB4 Type-C, 1 HDMI
• 1 Blazing M.2 (PCIe Gen 5 x4), 1 Hyper M.2 (PCIe Gen 4 x4 and SATA3), 2 Hyper M.2 (PCIe Gen 4 x4), 8 SATA3
• 2 USB4 Type-C, 1 USB 3.2 Gen 2x2 Type-C, 5 USB 3.2 Gen 2 Type-A, 7 USB 3.2 Gen 1
• Killer 2.5G LAN
• Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3

Product Specification
