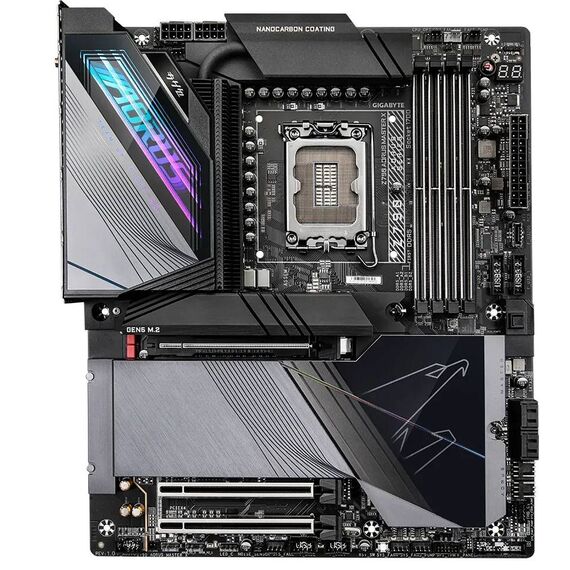

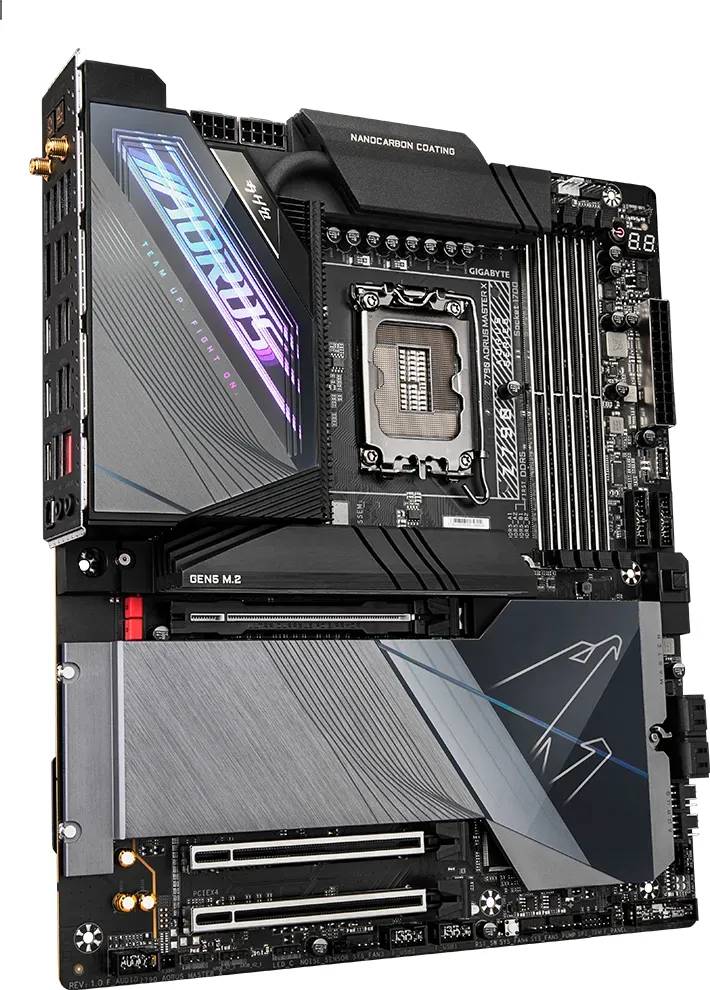

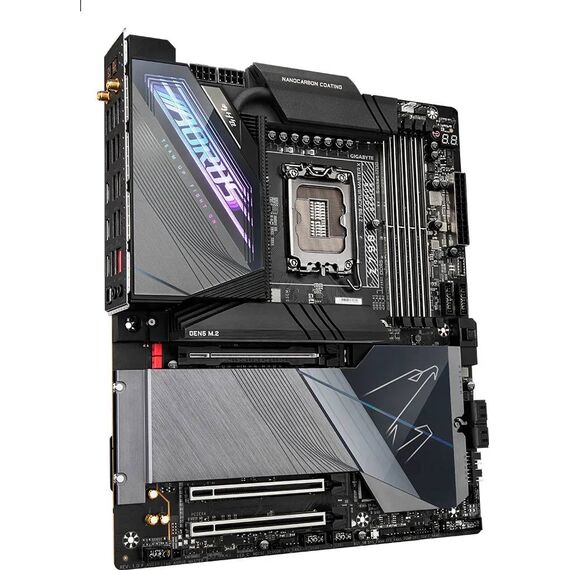

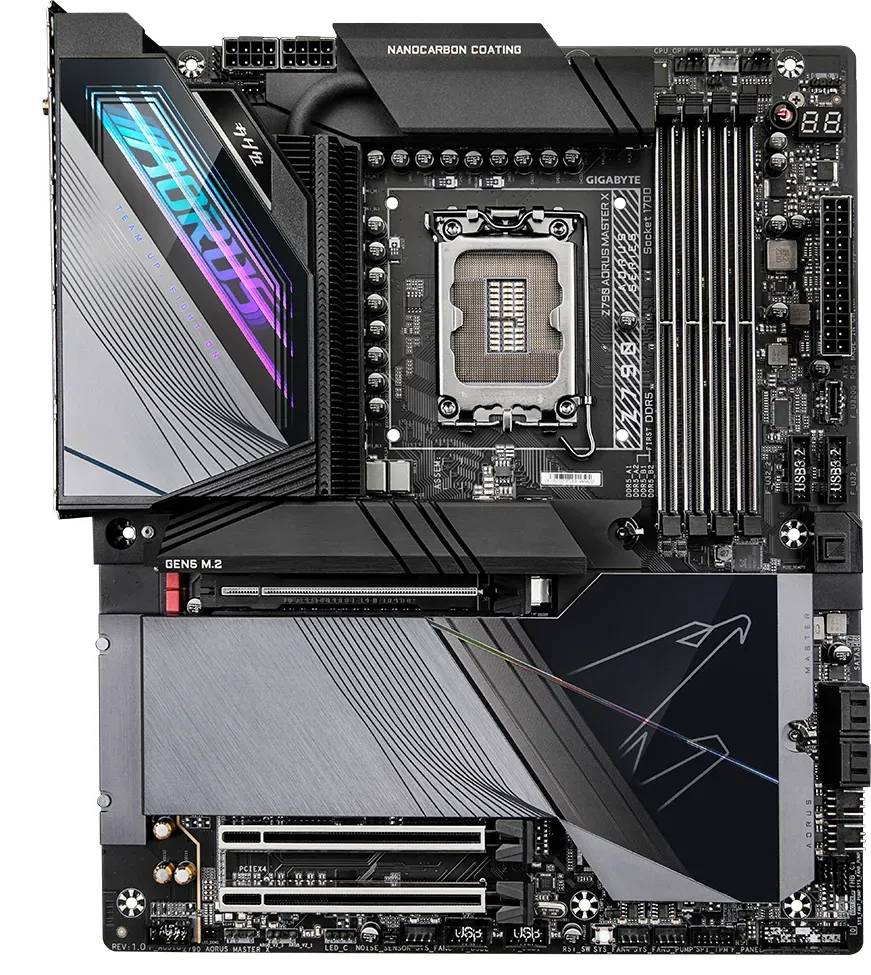

Gigabyte Z790 AORUS MASTER X / 1.0 / motherboard / extended ATX / LGA1700 Socket / Z790 Chipset / USB-C Gen 2x2, USB-C 3.2 Gen 1 / 10 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | Z790 AORUS MASTER X

ASRock Z790 AORUS MASTER X ATX Z790 AORUS MASTER X

Description
Features

Product Features

Robust VRM design
Equipped with an all-digital power design to achieve peak performance, while providing stability under heavy workloads.
Efficient overall thermals
Armored with an advanced, full-metal thermal design, the solid heat sinks are forged to keep the system cool while running fast.
Multilayer PCB
Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.
Copper enhancement
Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.
Low dissipation factor
Elevate signal integrity in high-frequency circuits, set a different standard for high-speed electronic design.
Versatile connectivity
Offers a wide range of capabilities, from Wi-Fi support with a redesigned antenna to an array of USB ports.
High-fidelity music
Experience immersive surround-sound audio and enjoy DSD-enabled music with Realtek's ALC1220 codec.
Audiophile-grade capacitors
Provide a stable current and deliver a studio-quality experience.
Precision audio stream
Offers precise time triggers for digital-to-analog converters and provides excellent resistance to corrosion and oxidation.

Special Features

Digital direct-phase VRM
Dual-channel memory support
EZ-latch click: heat sinks with screw less design
PCIe and M.2 slots with quick-release design
Fast storage
Efficient overall thermals
Fast networking: LAN and Wi-Fi connectivity with a high-gain antenna
Extended connectivity: DP, USB-C
DTS:X audio, Hi-Fi 9118 DAC

Product Specification

Product Type	Motherboard - extended ATX
Chipset Type	Intel Z790
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM	Supported RAM
Max Size	192 GB
Technology	DDR5
Bus Clock	5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.), 7900 MHz (O.C.), 7950 MHz (O.C.), 8200 MHz (O.C.), 8266 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio	Audio
Type	HD Audio (5.1-channel)
Audio Codec	Realtek ALC1220-VB
Compliant Standards	High Definition Audio, DTS:X Ultra
LAN	LAN
Network Controller	Qualcomm QCNCM865
Network Interfaces	10 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU Â¦ 4 x DIMM 288-pin Â¦ 1 x PCIe 5.0 x16 Â¦ 2 x PCIe 4.0 x16 Â¦ 2 x M.2 socket (2280/22110 M.2 Key M slot) Â¦ 1 x M.2 socket (2280/25110 M.2 Key M slot) Â¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 Â¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 Â¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 Â¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

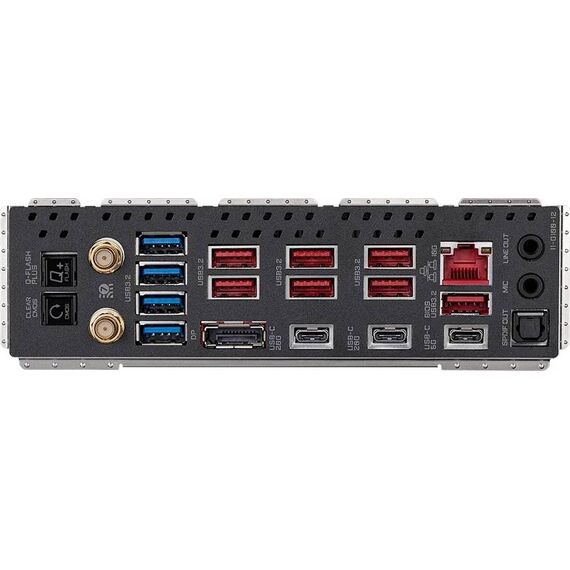

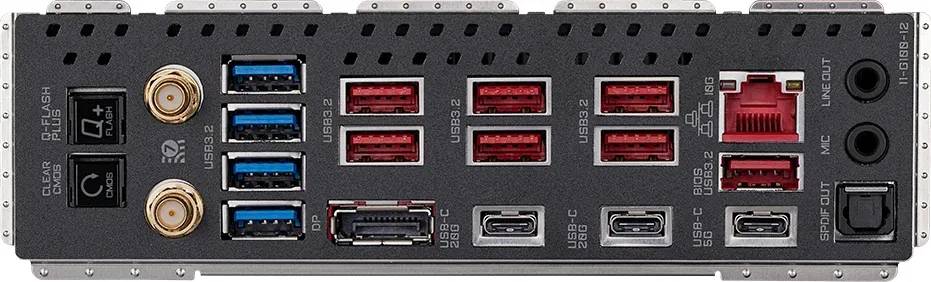

Interfaces	1 x LAN (10Gigabit Ethernet) Â¦ 1 x DisplayPort Â¦ 1 x microphone - mini-jack Â¦ 1 x audio line-out - mini-jack Â¦ 1 x SPDIF out - mini-jack Â¦ 4 x USB 3.2 Gen 1 Â¦ 7 x USB 3.2 Gen 2 Â¦ 2 x USB-C 3.2 Gen2x2 Â¦ 2 x aerial Â¦ 1 x USB-C 3.2 Gen 1
Internal Interfaces	4 x USB 2.0 - header Â¦ 4 x USB 3.2 Gen 1 - header Â¦ 1 x USB-C Gen 2x2 - header Â¦ 1 x audio - header Â¦ 2 x Thunderbolt - header Â¦ 1 x SPI - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features	Features
BIOS Type	AMI
BIOS Features	WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring	System voltage, water cooling flow rate, fan fail warning, fan control, noise detection, fan speed detection
Hardware Features	Q-Flash, Ultra Durable, 2x Copper PCB, GIGABYTE Direct to BIOS, 8 Layer PCB, Q-Flash Plus, RGB FUSION, ESS 9118 SABRE HiFi DAC, NanoCarbon Baseplate, DIY Friendly Design, GIGABYTE Smart Fan 6, 20+1+2 Phase Power Design, aluminium backplate, M.2 EZ Latch, PCIe EZ Latch, Fins-Array with NanoCarbon Coating, M.2 Thermal Guard XL, GIGABYTE PerfDrive, M.2 Thermal Guard Ext.
Miscellaneous	Miscellaneous
Software Included	Norton Internet Security, GIGABYTE Control Center
Width	30.5 cm
Depth	26 cm
