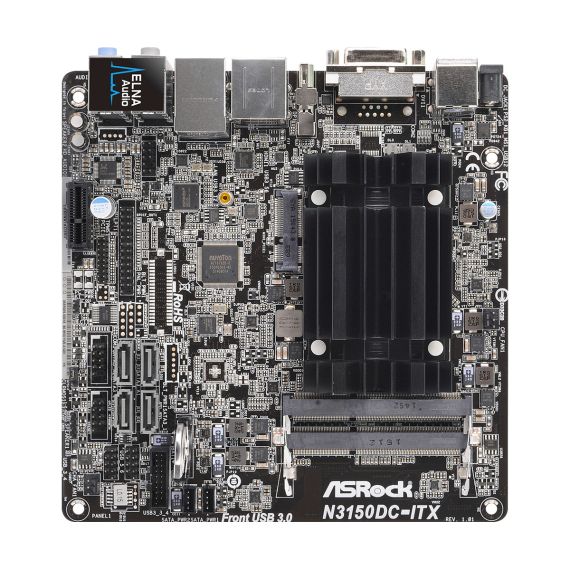

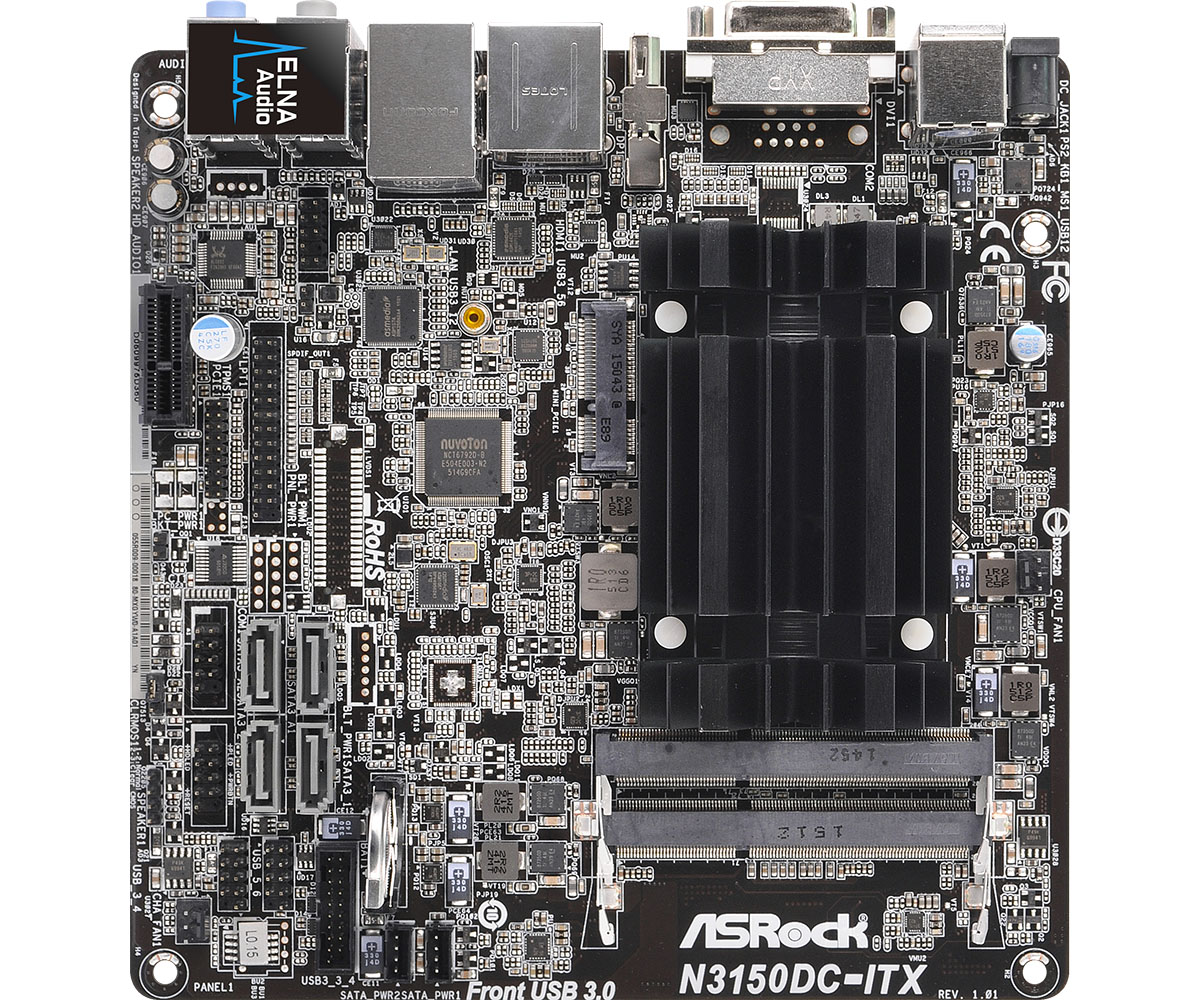

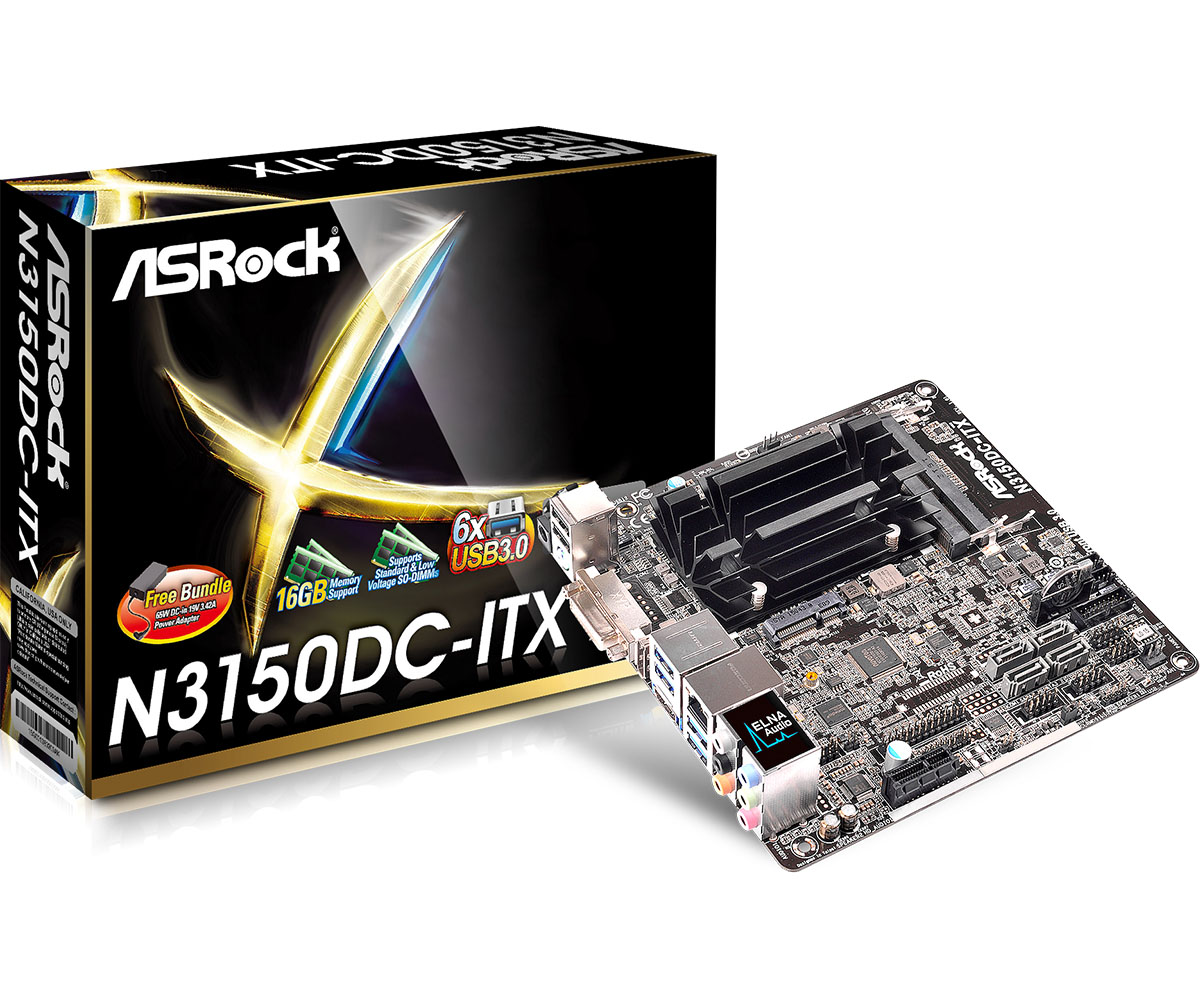

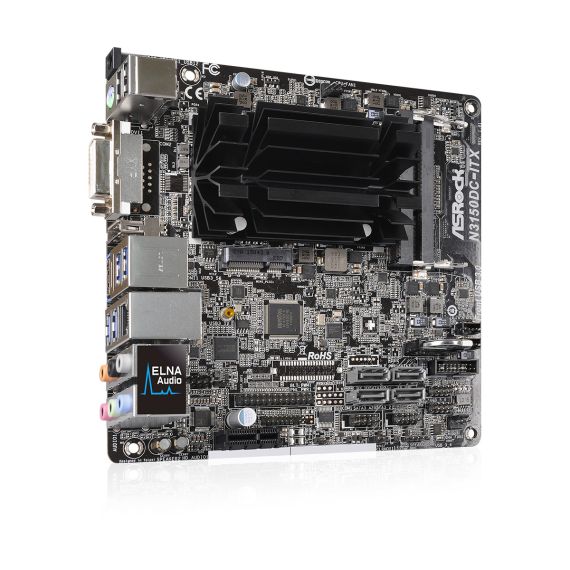

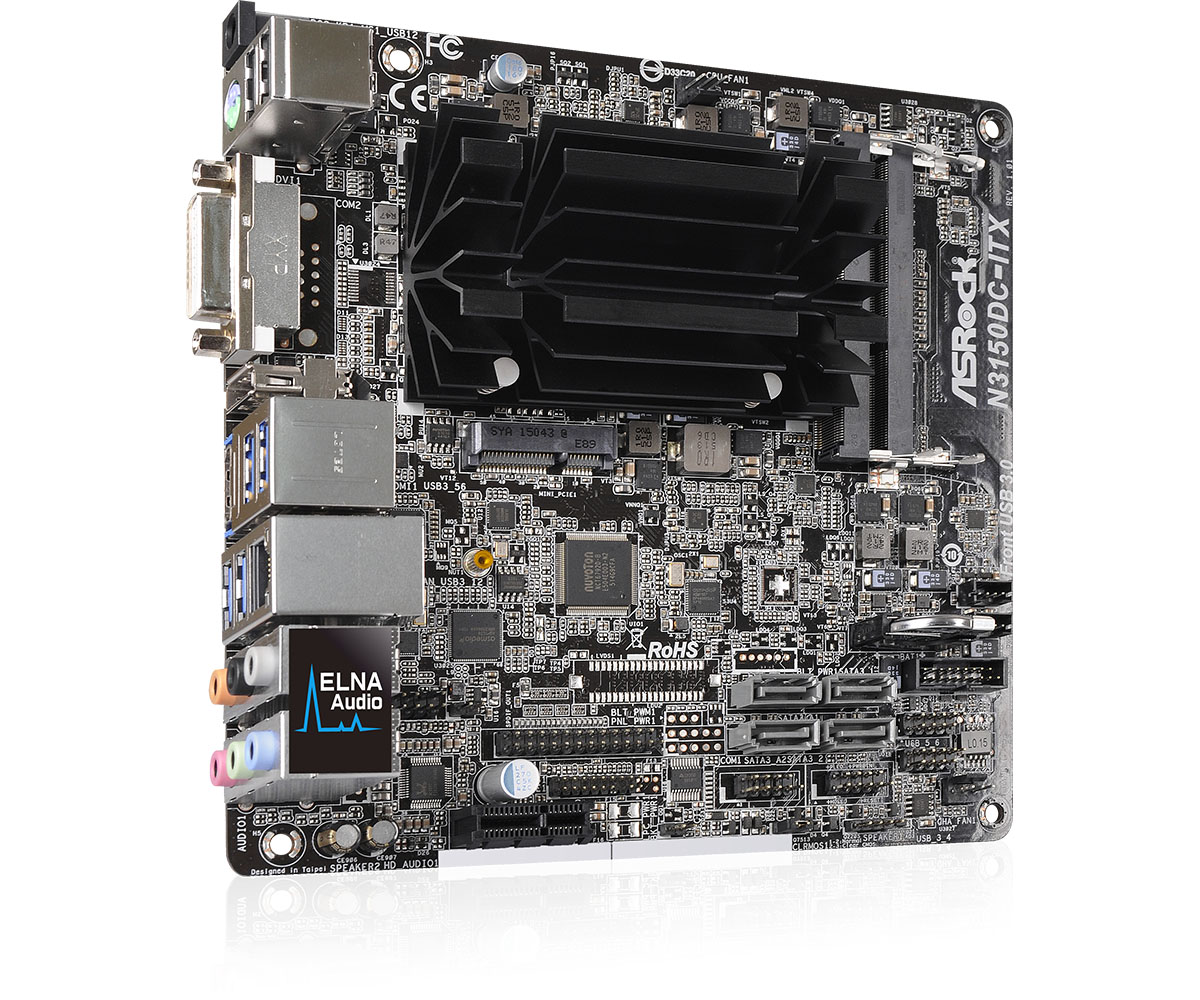

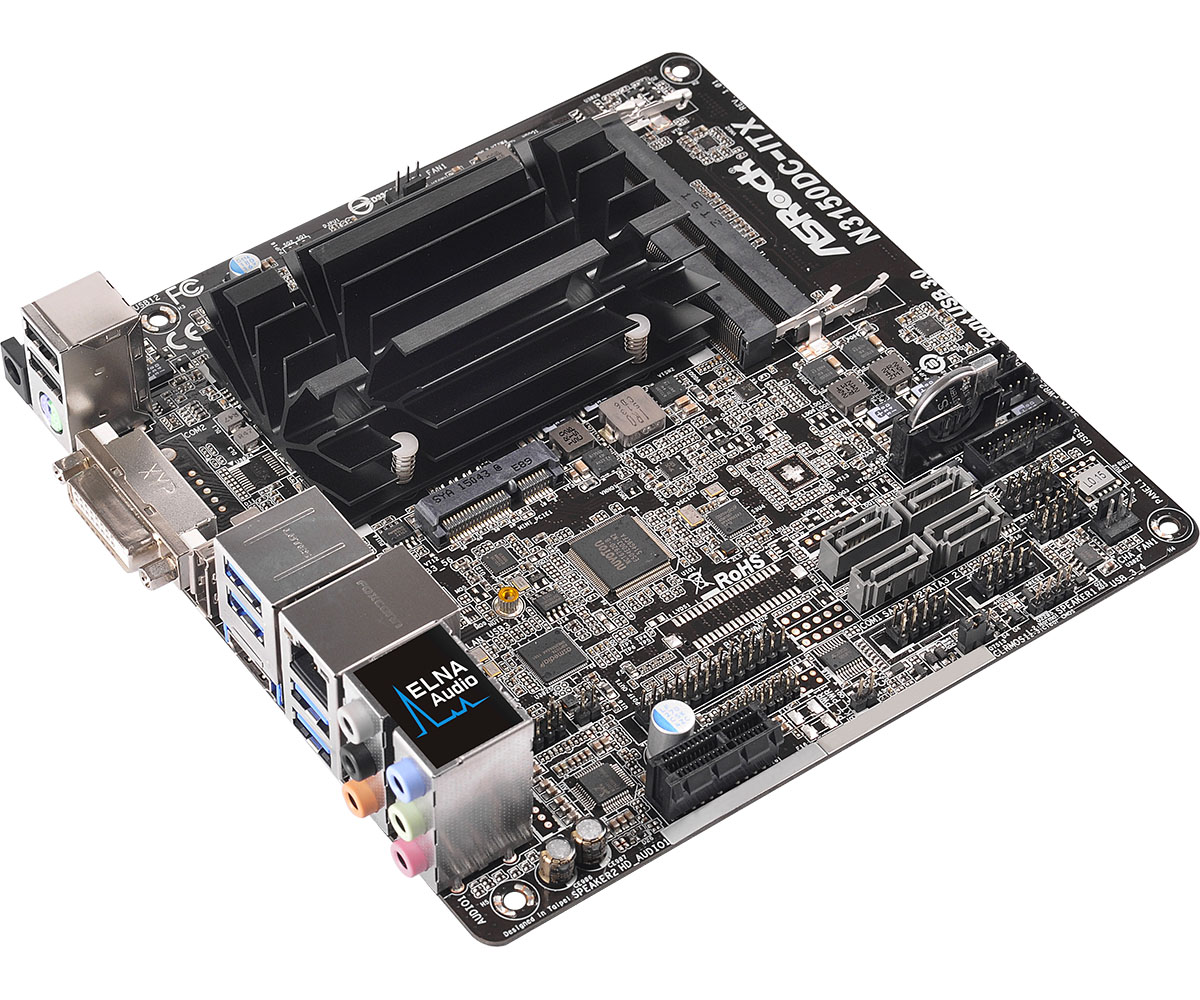

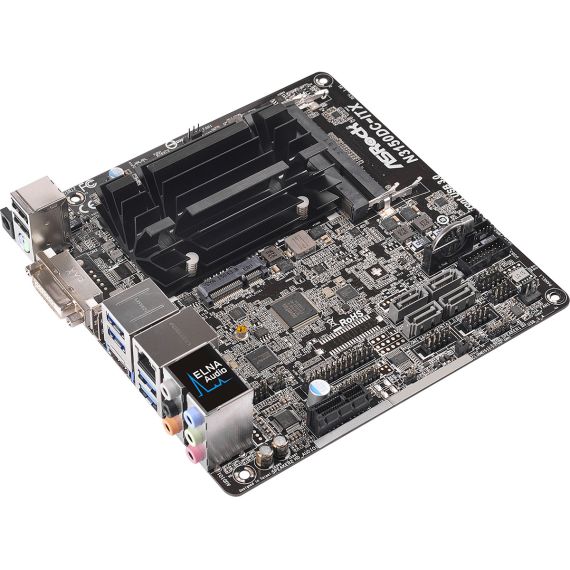

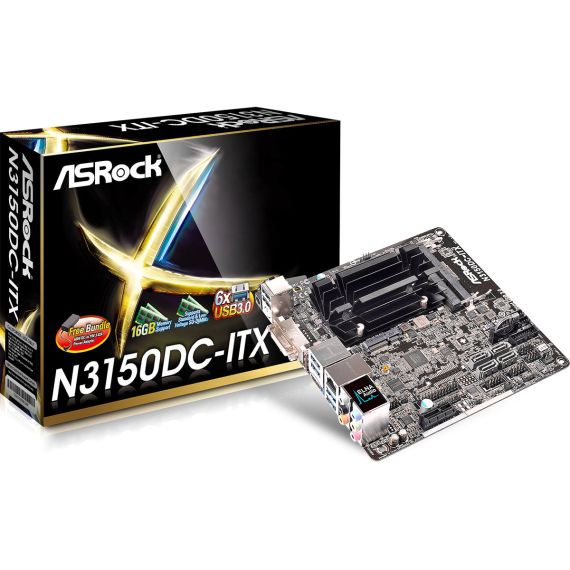

ASRock N3150DC-ITX Motherboard mini ITX Intel Celeron N3150 Gigabit LAN onboard graphics

Brand: Asrock

CODE (SKU):

90-MXGYW0-A0UAYZ

€118.80 €129.13

€141.37 inc. VAT

Out of stock

Add to wish list Ask a question

Product Code03:214262 EAN Code4717677326635 ManufacturerAsrock

Sales 8%

Find similar

Delivery

Payment options

Description
Features

Intel^® Quad-Core Processor N3150
Solid Capacitor design
Supports DDR3/DDR3L 1600 memory, 2 SO-DIMM slots
1 PCIe 2.0 x1, 1 Half-size mini-PCIe
Graphics Output Options : DVI, HDMI, DisplayPort
Built-in Intel^® 8th generation (Gen 8) graphics, DirectX 11.1, Pixel Shader 5.0
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
4 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
1 x Print Port Header, 1 x TPM Header, 1 x COM Port Header
1 x DC Jack (Compatible with the 19V power adapter)
Supports ASRock Live Update & APP Shop, Full Spike Protection
Free Bundle : 1 x 65W DC-in 19V 3.42A Power Adapter

Specifications

General
Unique Feature	ASRock Full Spike Protection ASRock Live Update & APP Shop
CPU	- Intel^® Quad-Core Processor N3150 (up to 2.08 GHz)
Memory	- Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L SO-DIMM Slots - Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation. *If only one SO-DIMM module is installed, please install it into DDR3_A1.
BIOS	- 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 Compliant wake up events - Supports jumperfree - SMBIOS 2.7 Support
Audio, Video and Networking
Graphics	- Intel^® 8th generation (Gen 8) graphics: up to 12 EUs inside - DirectX 11.1, Pixel Shader 5.0 - Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8 - Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 2.0 x1 Slot - 1 x Half-size Mini-PCI Express Slot* *Due to the power limitation and PCIe bandwidth (x1), the VGA card is not supported.
Storage	- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector	- 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 2 x SATA Power Connectors - 1 x Front Panel Audio Connector - 1 x SPDIF Out Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_3_4 is shared with USB_5_6.

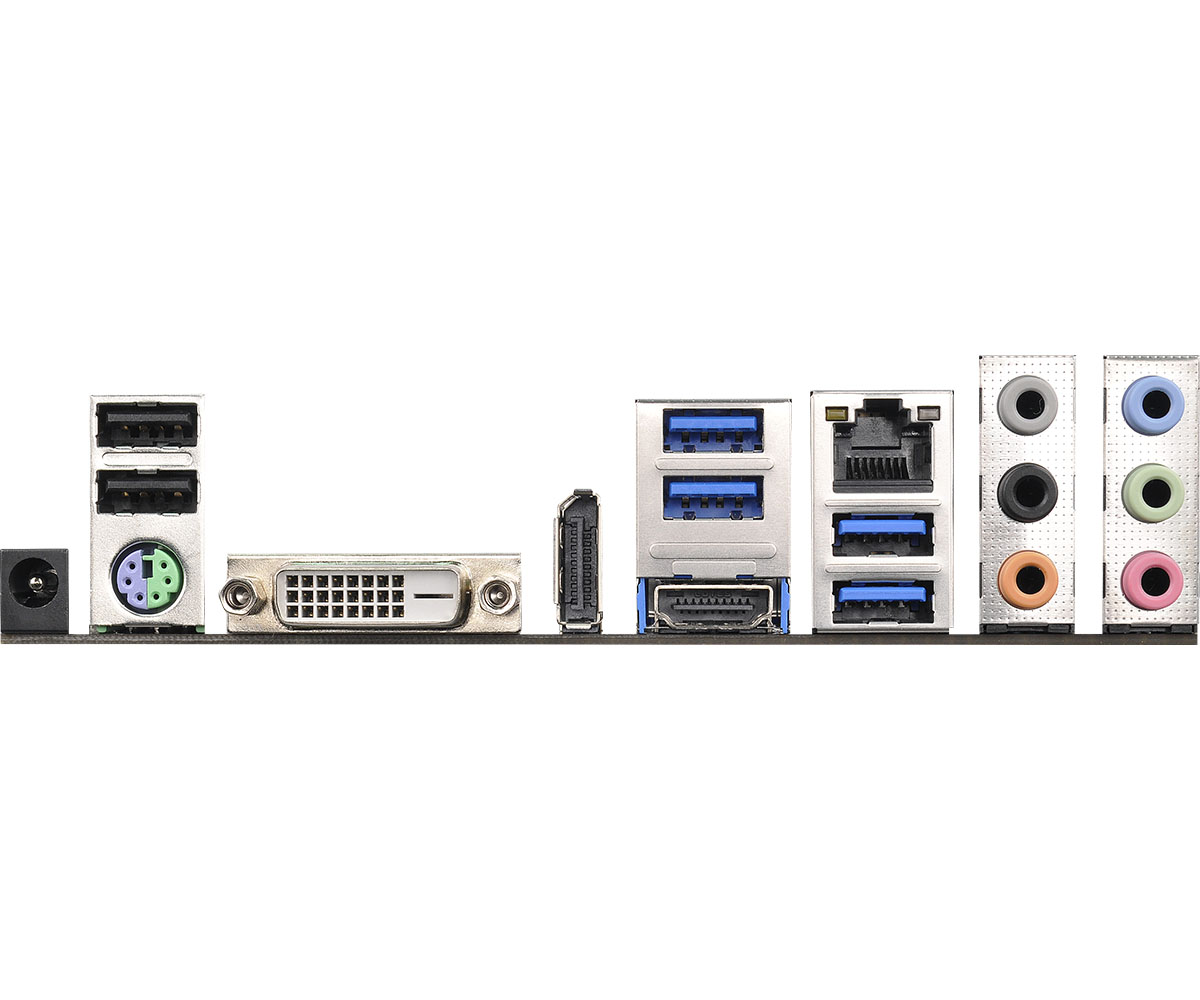

Rear Panel I/O	- 1 x DC Jack (Compatible with the 19V power adapter) - 1 x PS/2 Mouse/Keyboard Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x DisplayPort 1.1a - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and BIOS	Software - ASRock Power Gear - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI* UEFI - ASRock Power Gear - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS *These utilities can be downloaded from the APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x SATA Power Cables - 1 x WiFi Module Screw - 1 x 65W DC-in 19V 3.42A Power Adapter
Hardware Monitor	- CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- Mini-ITX Form Factor - Solid Capacitor design - High Density Glass Fabric PCB
OS	- Microsoft^® Windows^® 10 64-bit / 8.1 64-bit / 7 64-bit* - Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3 *To install Windows^® 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows^® 10 driver, please visit ASRock's website for details.
Certifications	- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
