ASRock B360M Pro4 / Motherboard / micro ATX / LGA1151 Socket / B360 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB760-A0UAYZ

Description

Prepare yourself well to enjoy the impressive world of VR. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR products are definitely the one you're looking for. The premium quality is assured by rigorous testing during development.

ASRock B360M Pro4 / Motherboard | 90-MXB760-A0UAYZ

Special Features

Supports HEVC 10-bit playback
High-density glass fabric PCB
Superior audio caps

Product features

Supports HEVC 10-bit playback
HEVC 10-bit provide substantially improved video quality and higher bit depth video experience.
High-density glass fabric PCB
High-density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Superior audio caps
ASRock applied superior audio capacitors on these motherboards! The leakage current of these audio caps is very low. This is the key to reduce noise level significantly and satisfy audiophiles.

Product Specification

Product Type	Motherboard - micro ATX
Chipset Type	Intel B360 Express
Processor Socket	LGA1151 Socket
Max Processors Qty	1
Compatible Processors	Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7, Maximum TDP 95 Watt)
Max Size	64 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC892
Compliant Standards	High Definition Audio, Premium Blu-ray audio support
Network Controller	Intel I219V
Network Interfaces	Gigabit Ethernet
Expansion Slots	1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces	SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2

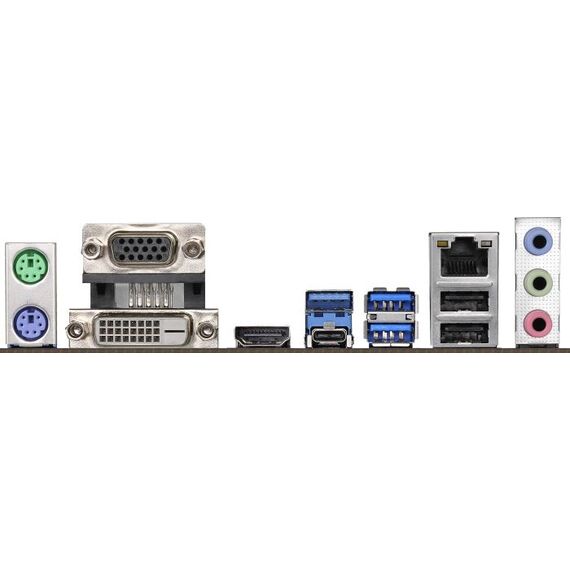

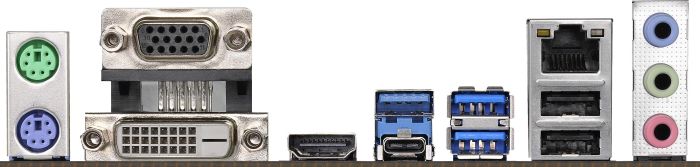

Interfaces	1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 2 x USB 3.1 Gen 1
Internal Interfaces	3 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
BIOS Type	AMI
BIOS Features	Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up	Wake on LAN (WOL)
Hardware Features	ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Internet Flash, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, I/O Armor, ASRock Live Update, 10 Phase Power Design, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 45A Power Choke, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
Included Accessories	I/O back plate, 3 x M.2 screws
Cables Included	2 x Serial ATA cable
Software Included	Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant Standards	FCC, EuP Ready, ErP Ready
Width	24.4 cm
Depth	24.4 cm
