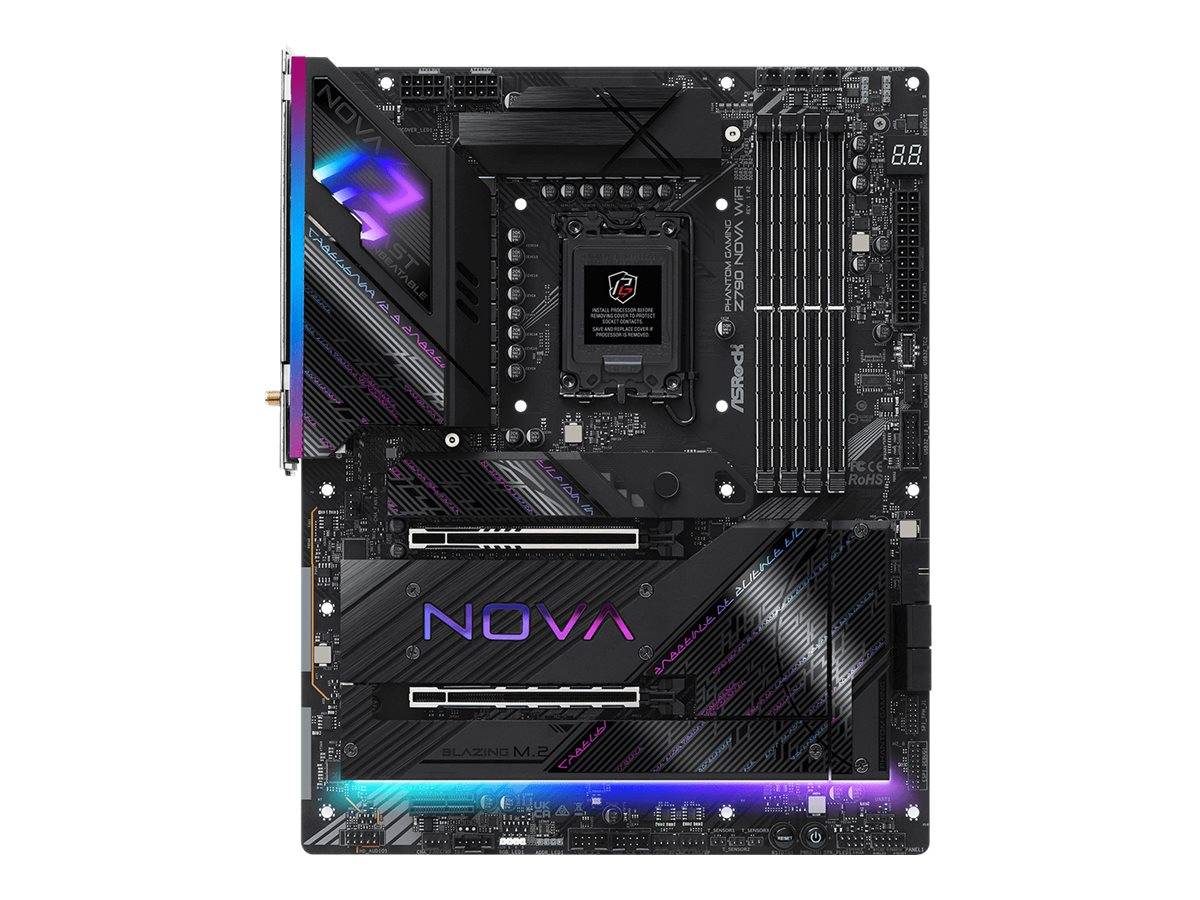

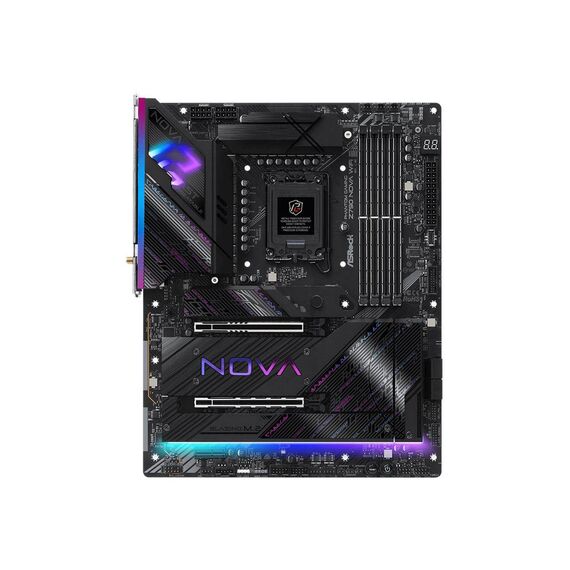

ASRock Phantom Gaming Z790 NOVA WiFi / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBMB0-A0UAYZ
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz, 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4082 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Killer E3100G |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 (slot converts to x8 mode when SSD is installed in 1st M.2 slot) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 6 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 3 x USB-C 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out |
| Internal Interfaces | 2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, Lighting Control, ASRock EZ Mode, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASRock Hyper BCLK Engine, DIY Friendly Design, reinforced PCIe slots, Server-Grade Low-Loss PCB, Intel Hybrid Technology, ASRock Auto Driver Installer, VRM heatsink design, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), ASRock Lightning Gaming Ports, 20K black capacitors, 20+1+1 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | 3 thermistor cables, 5 x M.2 screws, graphics card holder, 1 to 3 ARGB LED splitter cable, ASRock WiFi 2.4/5/6 GHz aerial, 5 x standoff for M.2 socket |
| Cables Included | 4 x Serial ATA cable |
| Software Included | ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, Killer Control Center |
| Compliant Standards | FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBMB0-A0UAYZ
CPU Socket
- Socket 1700
More Details
Product Code
03:221484
EAN Code
4710483944482
Manufacturer
Asrock
