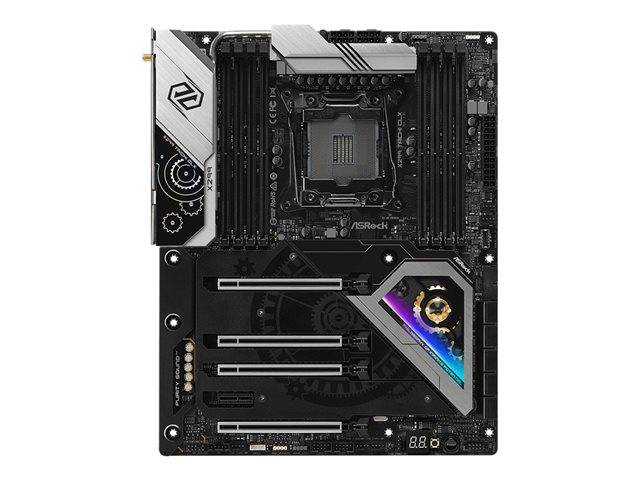

ASRock X299 Taichi CLX / Motherboard / ATX / LGA2066 Socket / X299 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Bluetooth, Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi / HD Audio (8-channel) | 90-MXBBH0-A0UAYZ

Description

Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable. The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming. Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath its solid strong cover lie three gaming required M.2 key M sockets. ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

ASRock X299 Taichi CLX / Motherboard | 90-MXBBH0-A0UAYZ

Special Features

• Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
• 13 Power Phase Design, Dr. MOS
• Supports DDR4 4200+(OC)
• 4 PCIe 3.0 x16, 1 PCIe 3.0 x1
• NVIDIA 3-Way SLI., AMD 3-Way CrossFireX
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound. 4 & DTS Connect
• 10 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 2 Ultra M.2 (PCIe Gen3 x4)
• 1 USB 3.2 Gen2x2 20Gb/s Type-C
• 1 USB 3.2 Gen2 10Gb/s Type-C (Front)
• 6 USB 3.2 Gen1 (2 Front, 4 Rear)
• Realtek 2.5 Gigabit LAN, Intel Gigabit LAN
• Intel Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
• ASRock Polychrome SYNC
• Hyper BCLK Engine III

Product features

• XXL aluminum alloy heatsink & heatpipe design
  Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable.
• USB 3.2 Gen2x2 Type-C
  The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
• Wi-Fi 6 802.11ax
  Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
• Dragon 2.5 Gb/s LAN
  The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
• 2.5G Ethernet, high TCP & UDP throughput
  Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming.
• Unbeatable heatsink armor
  Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath its solid strong cover lie three gaming required M.2 key M sockets.
• Rule your own lighting way - polychrome RGB
  ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
• 13 Power Phase design
  Designed with a 13 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
• Dr. MOS
  Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
• PCI-E Steel Slot
  The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
• Front USB 3.2 Gen2 Type-C
  Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
• Flexible integrated I/O shield
  Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes.
