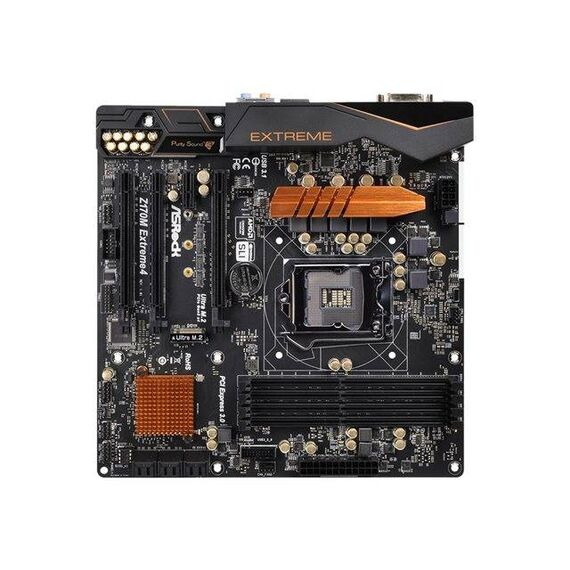

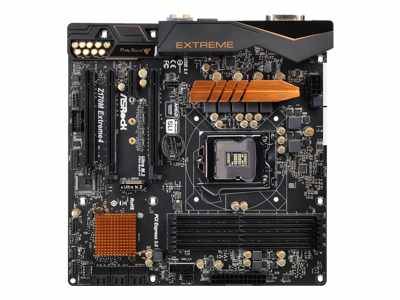

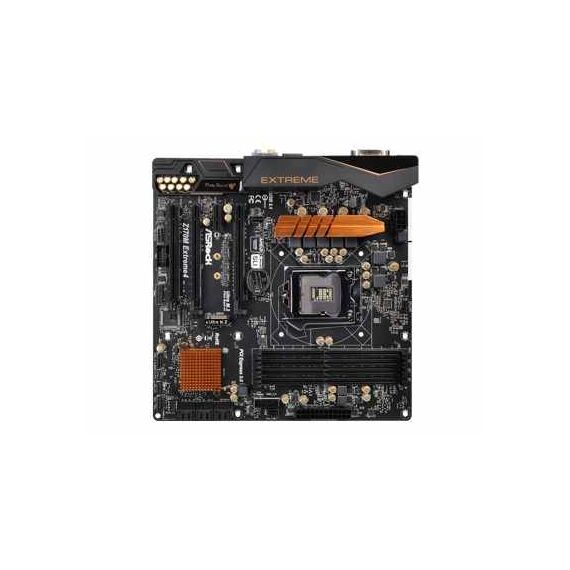

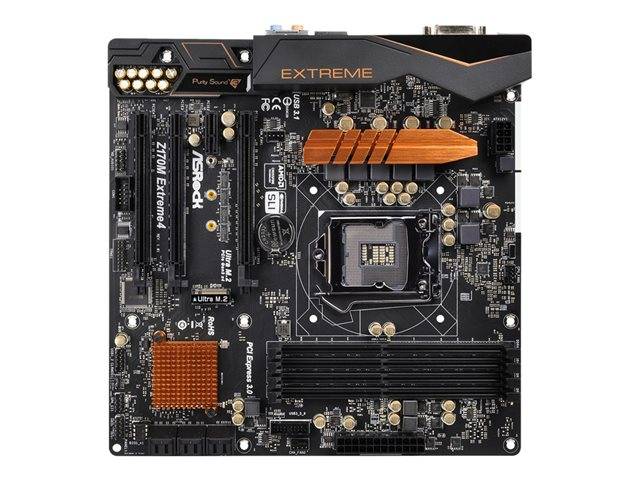

ASRock Z170M Extreme4 / Motherboard / micro ATX / LGA1151 Socket / Z170 / USB 3.0, USB 3.1, USB-C / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB0X0-A0UAYZ
|
Special Features
|
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Z170 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2400 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0 |
| Max Allocated RAM Size | 1792 MB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1150 |
| Compliant Standards | DTS Connect, High Definition Audio, Premium Blu-ray audio support |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (dual: x8 mode; triple: x8, x8, x4 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x Ultra M.2, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 ¦ 1 x USB-C ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 2 x USB 3.0 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support |
| Manual Settings | Processor core voltage, memory voltage |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Chassis intrusion detection, NVIDIA SLI Technology Support, ASRock Instant Flash, HDCP compliant, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, ASRock APP Charger, 6 Phase Power Design, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock OMG (Online Management Guard), ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Dual-Stack MOSFET (DSM), ASRock Fast Boot, ASRock Restart to UEFI, ASRock UEFI System Browser, CPU Voltage Multi-adjustment, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, 4K resolution support, Supports Intel K-Series unlocked CPU, ASRock BCLK, Premium Headset Amplifier, Direct Drive Technology, ASRock A-Tuning, ASRock Full Spike Protection, ASRock Cloud, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Nichicon Fine Gold Series Audio Capacitors, Nichicon 12K Platinum Caps, I/O Armor, ASRock Live Update, ASRock Purity Sound 3 |
| Included Accessories | I/O back plate, 1 x M.2 screw, ASRock SLI_Bridge Card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Disk Health Report |
| Compliant Standards | WHQL, FCC, EuP Ready, ErP Ready, ACPI 5.0 |
| Package Type | Retail |
Features - Asrock - 90-MXB0X0-A0UAYZ
More Details
Product Code
04:185146
EAN Code
4717677328905
Manufacturer
Asrock
