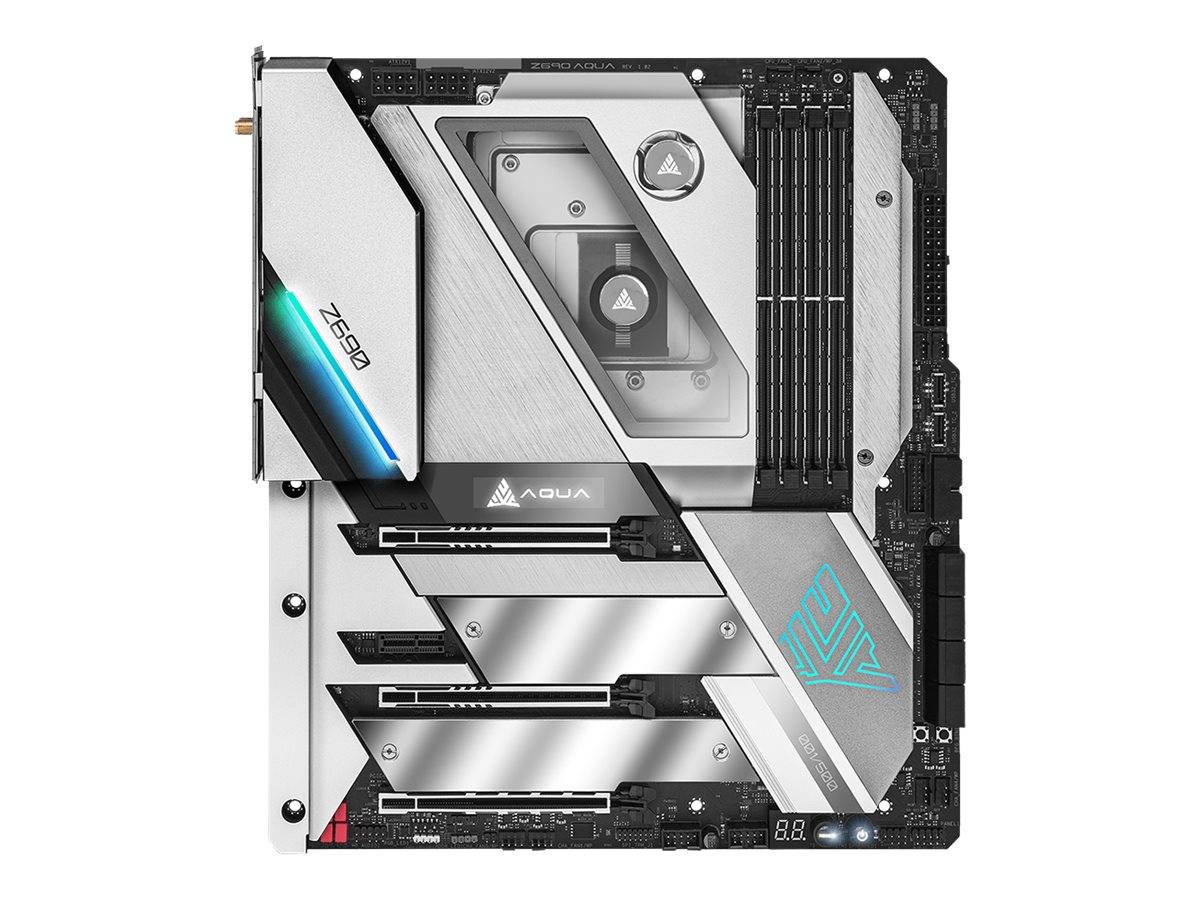

ASRock Z690 AQUA / Motherboard / extended ATX / LGA1700 Socket / Z690 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4 / Bluetooth, 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-chann | 90-MXBHU0-A0UAYZ
90-MXBHU0-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel Z690 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio, Premium Blu-ray audio support |
| LAN | LAN |
| Network Controller | Marvell AQC113CS / Killer E3100G |
| Network Interfaces | Bluetooth, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (for wireless module) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x HDMI ¦ 2 x USB 3.2 Gen 2 ¦ 2 x Thunderbolt 4/USB4 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x TOSLINK ¦ 2 x DisplayPort input ¦ 1 x LAN (10Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB-C Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, 20 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Status OLED, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Killer DoubleShot Pro, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium Power Choke, Pure Power-In, PCB Isolate Shielding, 2oz Copper PCB, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, 12 Layer PCB, ESS 9218 SABRE HiFi DAC, ASRock Full Coverage M.2 Heatsink, AQUA Cooling Armor, ASRock Hyper M.2, ASRock USB 3.2 Gen2, ASRock USB 4.0, WIMA audio capacitors, Server-Grade Low-Loss PCB, Windows 11 compatible, 105A Smart Power Stage, Intel Hybrid Technology, ASRock Auto Driver Installer, ASRock Hyper BCLK Engine V |
| Miscellaneous | Miscellaneous |
| Included Accessories | 3 x M.2 screws, thermal grease, ASRock WiFi 2.4/5/6 GHz aerial, digital leak detector, 9 x thermal pads, 4 x screws for MOS, 4 x screws for CPU sockets |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock Polychrome SYNC, Killer Control Center |
| Compliant Standards | FCC, EuP Ready, ErP Ready, CEC Tier II |
| Width | 30.5 cm |
| Depth | 26.7 cm |
Features - Asrock - 90-MXBHU0-A0UAYZ
CPU Socket
- Socket 1700
More Details
Product Code
03:190905
EAN Code
4710483936760
Manufacturer
Asrock
