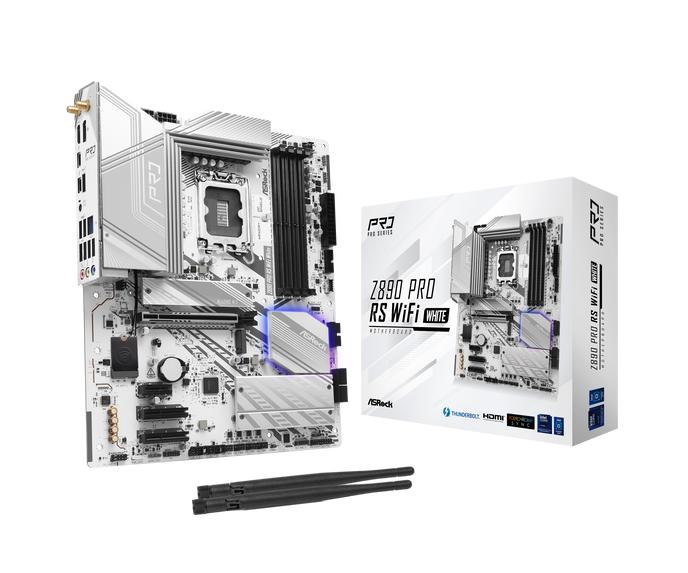

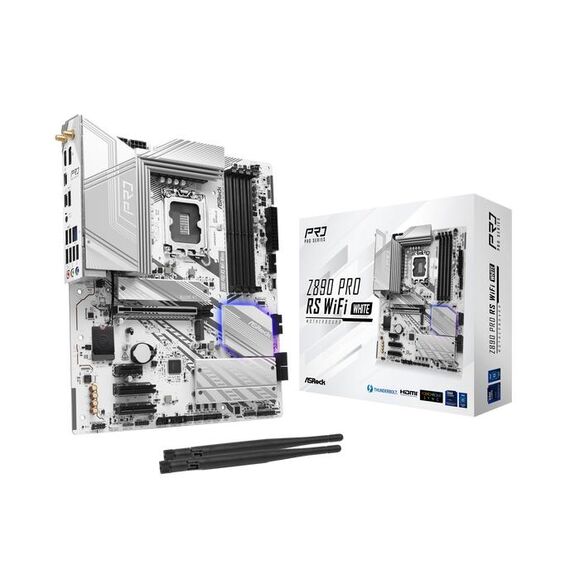

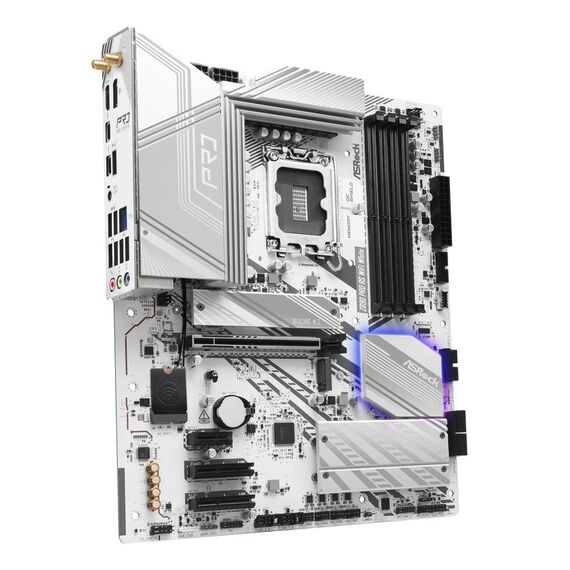

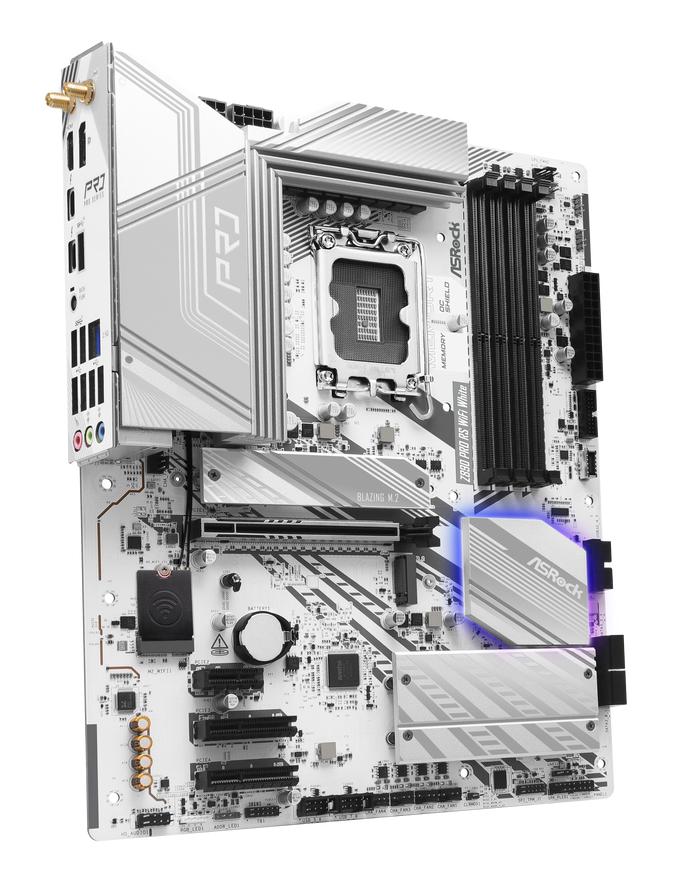

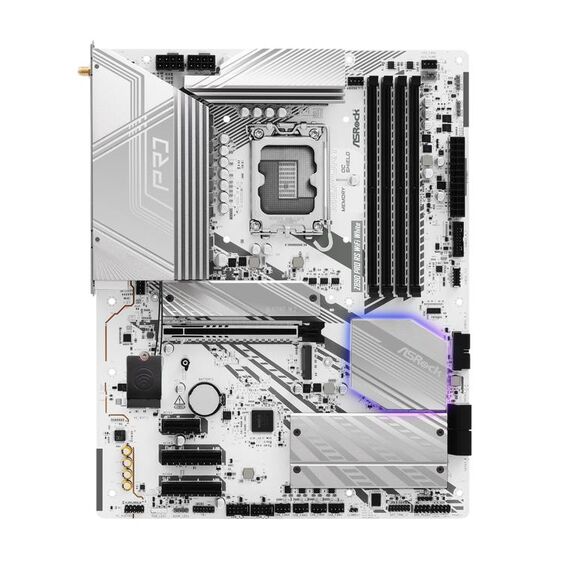

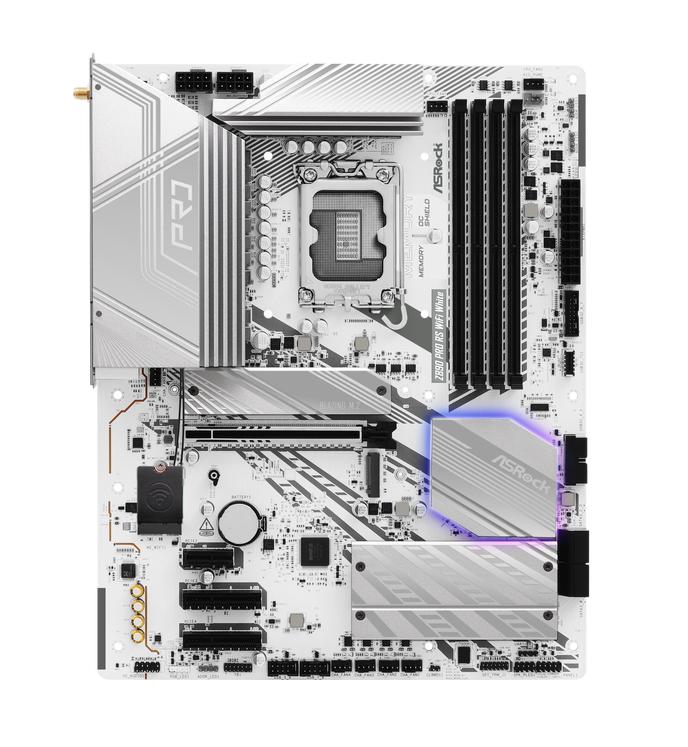

ASRock Z890 Pro RS WiFi White / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBQC0-A0UAYZ
90-MXBQC0-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient Connectivity
Featuring multiple USB 3.2 and USB4 ports, the motherboard offers versatile connectivity for various devices, ensuring fast data transfer and extensive support for peripherals. - Robust Audio Capabilities
Equipped with high definition audio powered by Realtek ALC897, it provides crisp sound quality suitable for both gaming and media consumption. - Premium Thermal Management
The enlarged heatsink armor and VRM heatsink design work together to maintain optimal temperatures, enhancing performance during heavy workloads or gaming sessions. - Versatile Expansion Options
With multiple M.2 slots and PCIe 5.0 support, the motherboard allows for high-speed storage expansions and has room for future upgrades. - Comprehensive Network Support
Includes advanced networking with 2.5 Gigabit Ethernet and support for Wi-Fi 6E, ensuring reliable high-speed Internet connectivity for online activities.
Special Features
- Supports Intel Core Ultra processors for high performance
- RAM speeds up to 9066 MHz for optimized performance
- Advanced cooling features with enlarged heatsink armor
- Multiple USB connectivity options including USB4
- Integrated high definition audio for an immersive experience
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 9066 MHz (O.C.), 6800 MHz (O.C.), 6533 MHz (O.C.), 5600 MHz (O.C.), 5600 MHz, 4800 MHz, 4400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x4 1 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 3 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

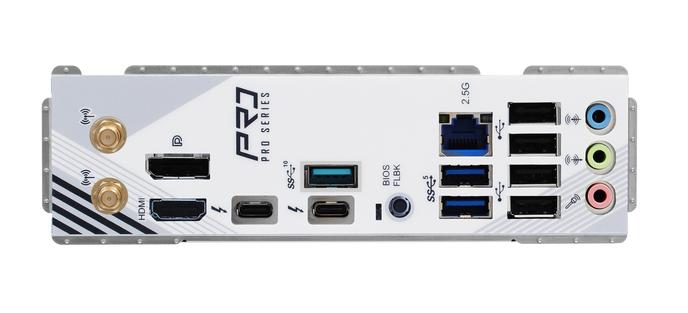

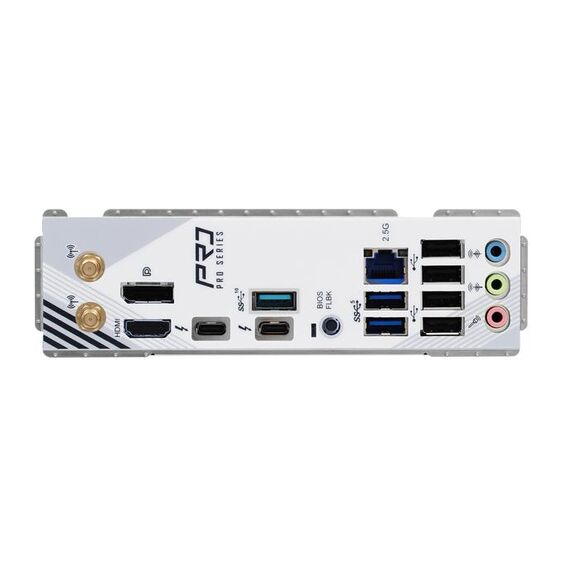

| Interfaces | 1 x HDMI 2 x aerial 1 x DisplayPort 2 x Thunderbolt 4/DisplayPort/USB4 1 x LAN (2.5Gigabit Ethernet) 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 2oz Copper PCB, CUDIMM support, 16+1+1+1+1 Phase Power Design, Memory OC Shield, Enlarged Heatsink Armor, pre-mounted I/O shield, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, VRM heatsink design, DIY Friendly Design, enlarged M.2 heatsink, Nahimic Audio Enhacer, ASRock Polychrome RGB, reinforced PCIe slots |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 screw, standoff, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards | HDCP 2.3, FCC, ErP Ready, EuP Ready, DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
