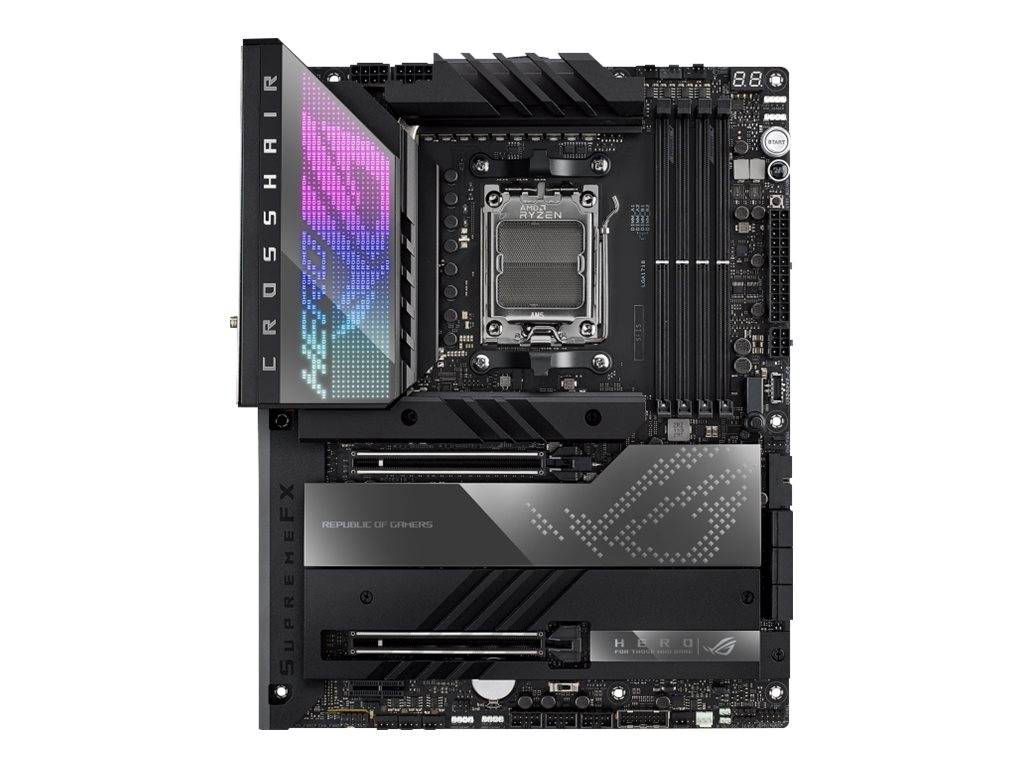

ASUS ROG CROSSHAIR X670E HERO / Motherboard / ATX / Socket AM5 / AMD X670 Chipset / USB 3.1 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio ( | 90MB1BC0-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X670 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4082 / ESS ES9218 |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x1 ¦ 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 2 x USB4/DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 8 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 2 x aerial ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 6 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, SupremeFX Shielding technology, Clear CMOS Button, LANGuard, TrueVolt USB, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, MicroFine Alloy Chokes, 10K Black Metallic Capacitors, DIY Friendly Design, FlexKey button, ASUS ProCool II, ReTry button, Start button, PCIe Slot Q-Release, Quick Charge 4+, VRM heatsink design, BIOS FlashBack button, ASUS Enhanced Memory Profile (AEMP), Polymo Lighting, 110A Power Stage, 18+2 Phase Power Design, JHL8540 USB4 controller |
| Miscellaneous | Miscellaneous |
| Included Accessories | RGB (RGBW) LED strip extension cable, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving aerial, 3 x M.2 rubber package, USB drive, ARGB LED strip extension cable, graphics card holder, PCIe 5.0 M.2 Card, M.2 screw package, 3 x M.2 Q-Latch, ROG stickers |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ROG CPU-Z, ASUS Turbo App, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year licence), Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4 |
| Compliant Standards | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, EU RoHS, EU REACH |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1BC0-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
03:198624
EAN Code
4711081862420
Manufacturer
Asus
