ASUS ThunderboltEX 3-TR / Thunderbolt adapter / PCIe 3.0 x4 / Thunderbolt 3 x 2 | 90MC08R0-M0EAY0
Description

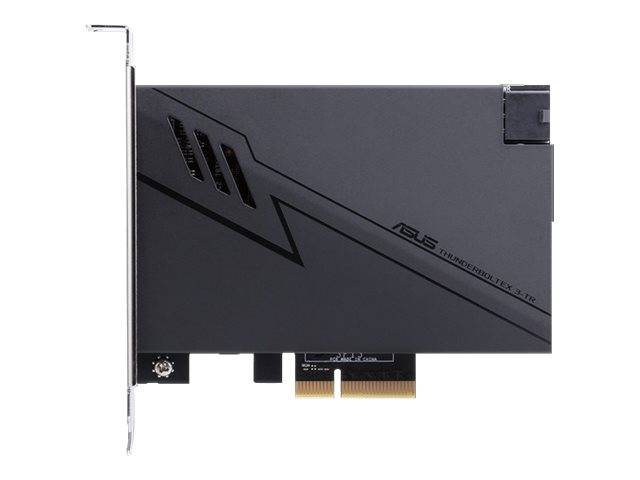

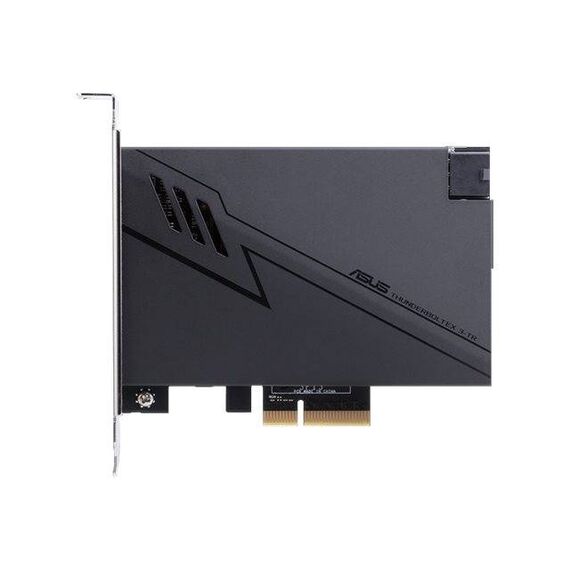

ASUS ThunderboltEX 3-TR is a Thunderbolt 3 add‑on card that delivers 40Gbps bidirectional bandwidth and DisplayPort 1.4 support. It's able to support up to six Thunderbolt-enabled devices in a daisy-chain configuration, and its USB Type-C port enables up to 100W charging for laptops.
ASUS ThunderboltEX 3-TR / Thunderbolt adapter | 90MC08R0-M0EAY0
Special Features
- Intel-certified Thunderbolt 3 add-on card
- 40Gbps bidirectional bandwidth for superfast data transfers and video output
- Dual Thunderbolt 3 ports (USB Type-C) with support for up to six Thunderbolt devices in a daisy chain
- DisplayPort 1.4 for 8K Ultra HD support
Product Specification
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | Thunderbolt 3 x 2 |
| Cabling Type | Thunderbolt 3 |
| Interfaces | 2 x Thunderbolt 3 - 24 pin USB-C with Power Delivery ¦ 2 x DisplayPort input - Mini DisplayPort ¦ 1 x Thunderbolt - 14-1 pin Thunderbolt header ¦ 1 x USB 2.0 - 9 pin USB 2.0 header |
| Cables Included | 2 x Mini DisplayPort cable ¦ 1 x Thunderbolt header cable ¦ 1 x USB cable |
| Compliant Standards | DisplayPort 1.4 |
| Software Included | Drivers & Utilities |
| OS Required | Windows 10 64-bit Edition |
| Depth | 8.05 cm |
| Height | 11.77 cm |
Features - Asus - 90MC08R0-M0EAY0
More Details
Product Code
04:339478
EAN Code
4718017727853
Manufacturer
Asus
