ASUS DUAL-RX6600-8G / Graphics card / Radeon RX 6600 / 8 GB GDDR6 / PCIe 4.0 / HDMI, 3 x DisplayPort | 90YV0GP0-M0NA00
Please sign in so that we can notify you about a reply
Product Features

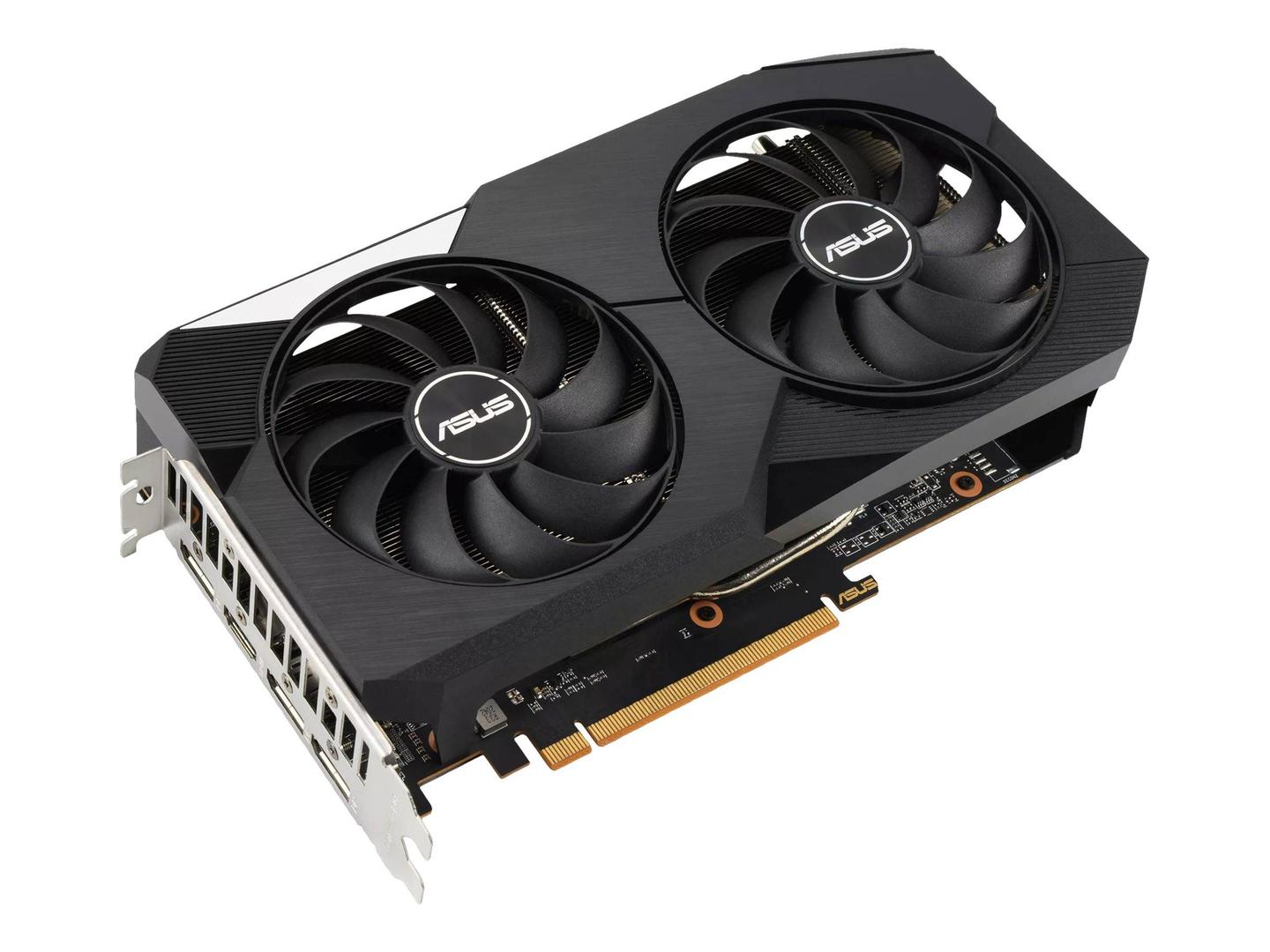

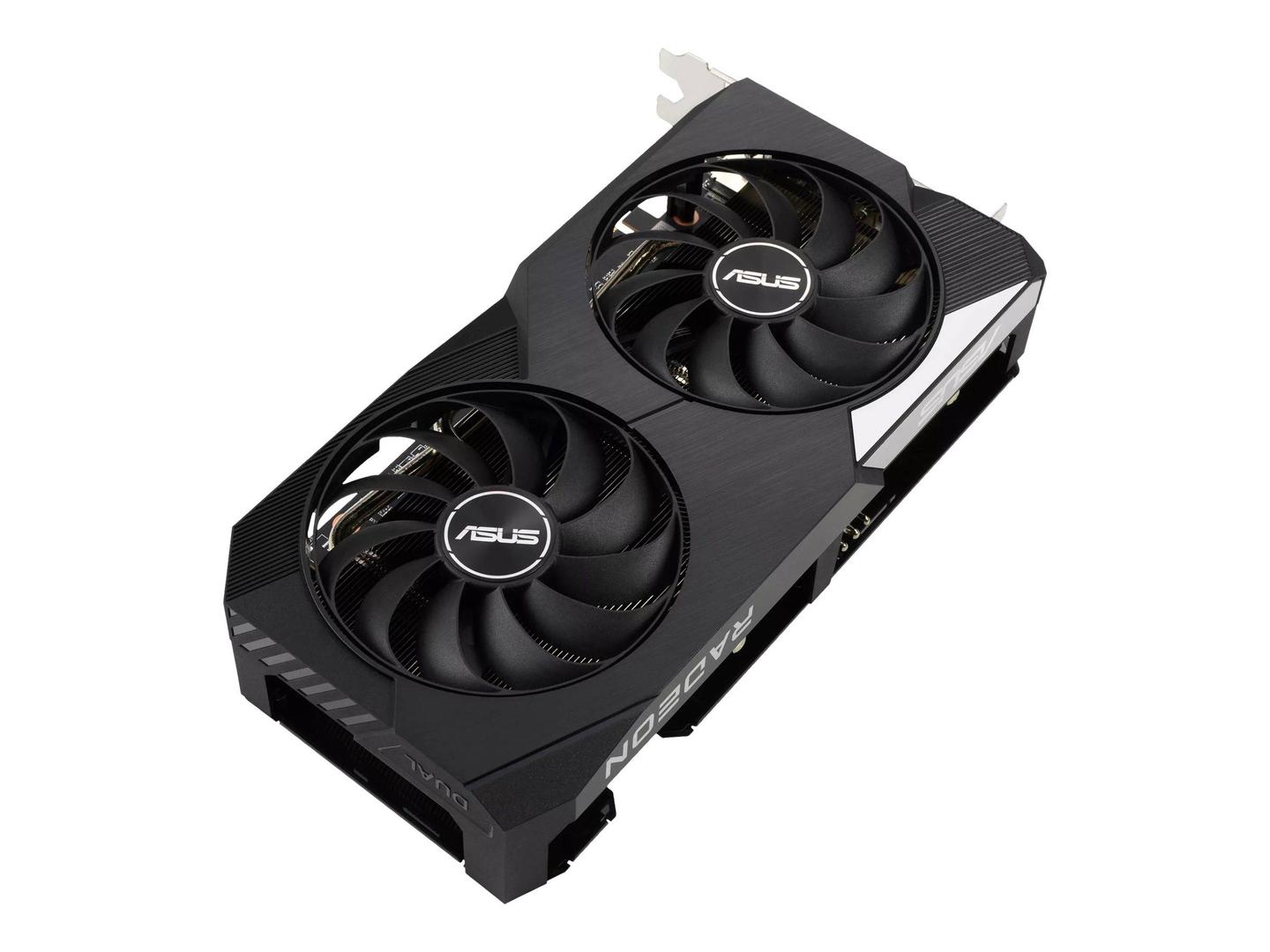

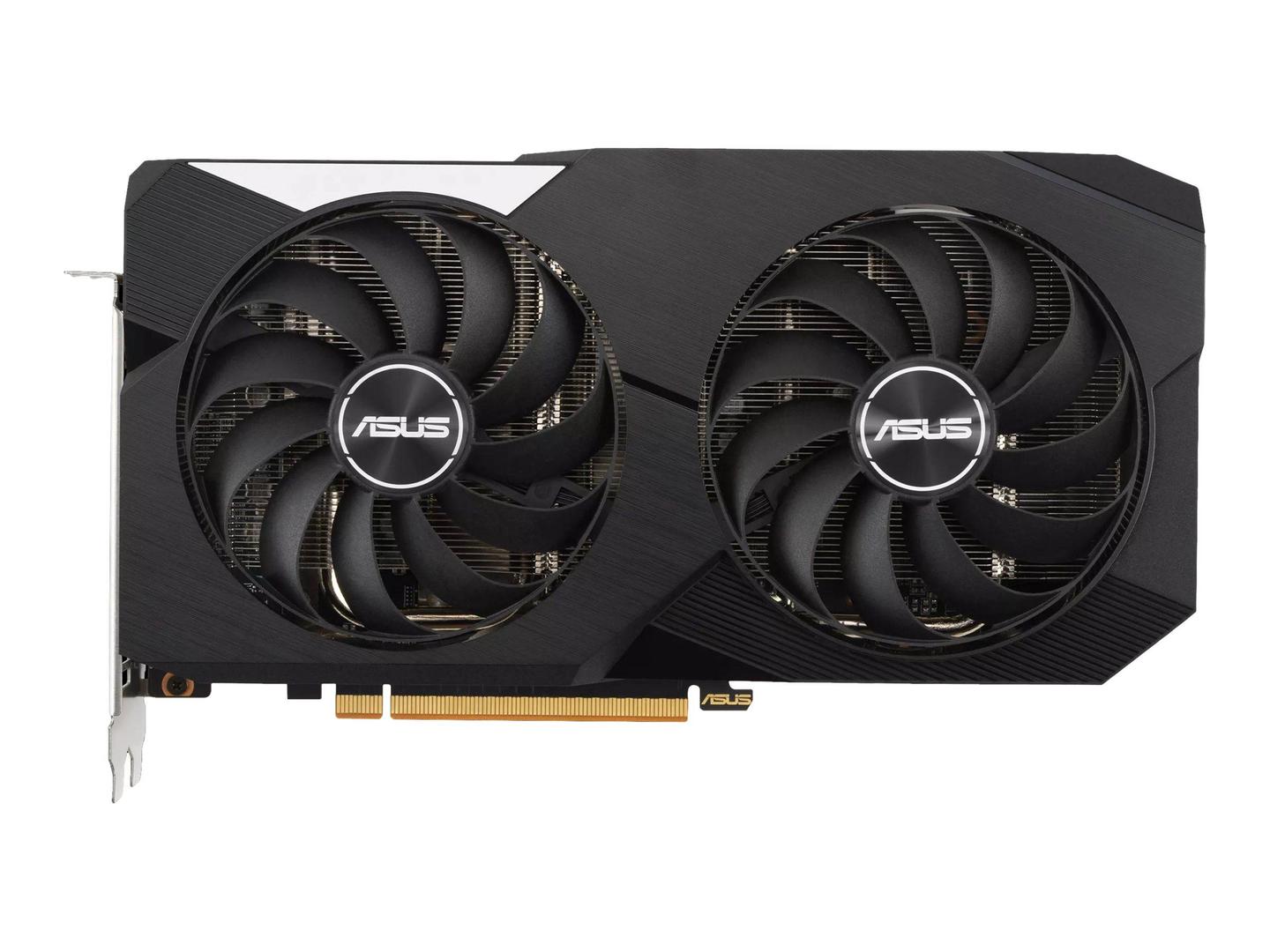

- Axial-tech fan design
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. - 0dB Technology
An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 52 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again. - Dual ball fan bearings
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs. - Auto-Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets unique standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. - Protective backplate

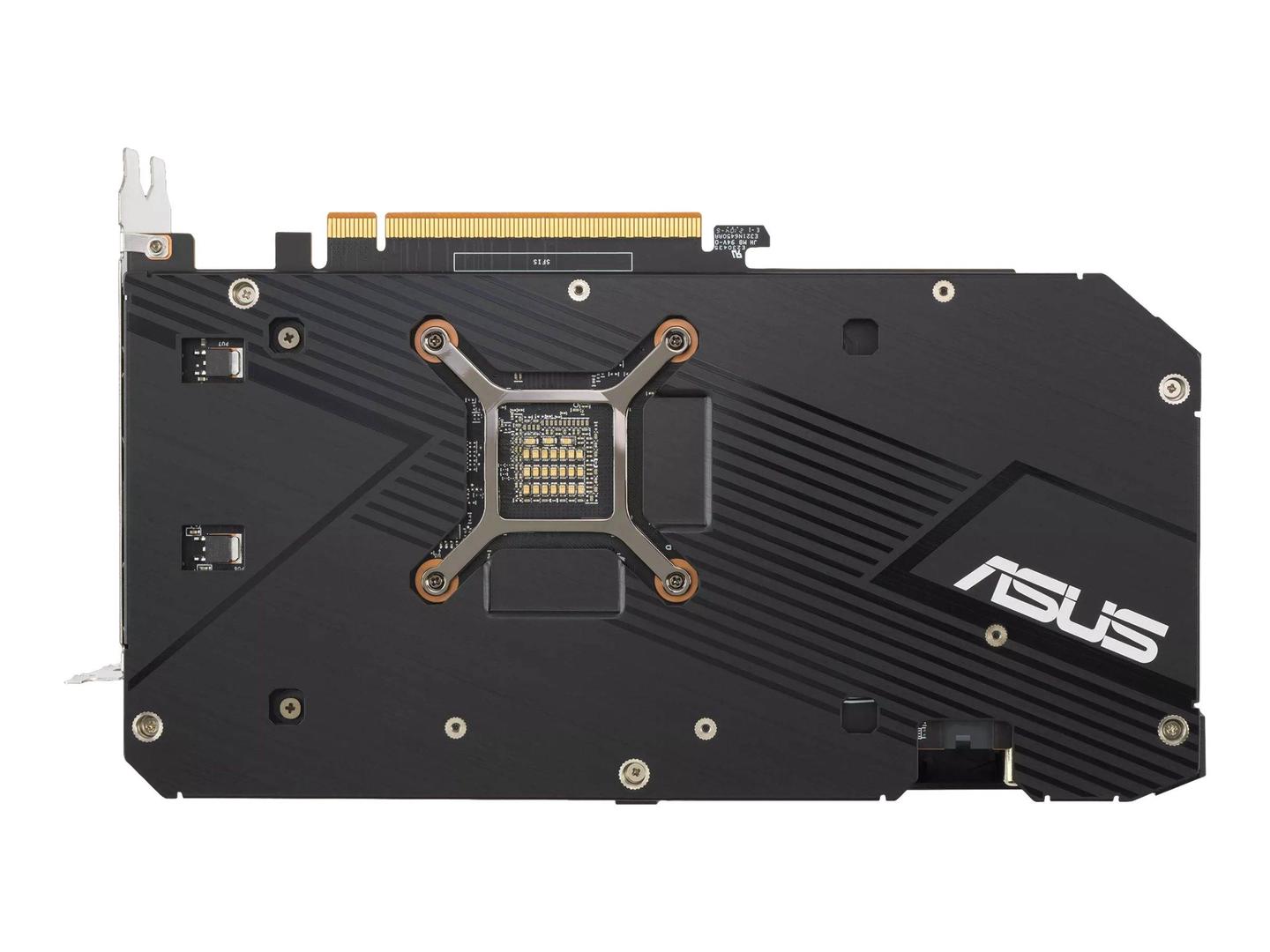

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. - GPU bracket
A GPU bracket provides uniform mounting pressure and extra stability to the critical connection between die and heat spreader. - Stainless steel bracket

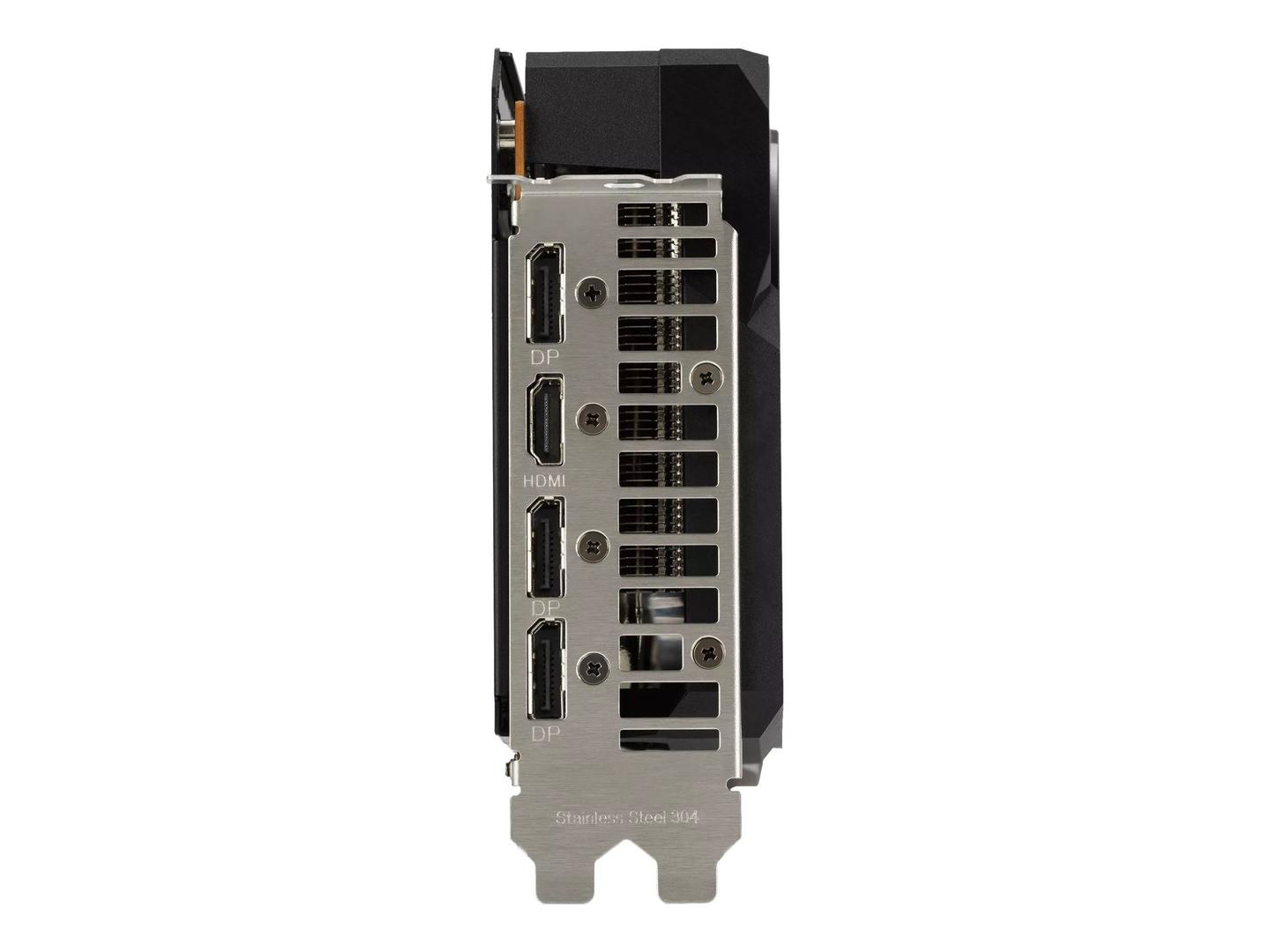

The mounting bracket of the Dual has been beefed up with 304 stainless steel that is harder and more resistant to corrosion.
Special Features
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- Auto-Extreme Technology uses automation to enhance reliability
- A protective backplate prevents PCB flex and trace damage
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 4.0 |
Graphics Engine | AMD Radeon RX 6600 |
Boost Clock | 2491 MHz |
Stream Processors | 1792 |
Max Resolution | 7680 x 4320 |
Max Monitors Supported | 4 |
Interfaces | HDMI ¦ 3 x DisplayPort |
API Supported | OpenGL 4.6 |
Features | AMD CrossFireX Technology, 2.5-slot Fan Cooler, AUTO-EXTREME technology, Axial-tech Fan Design, 0dB Technology, Dual ball Bearing Fans, HDCP |
Memory | Memory |
Size | 8 GB |
Technology | GDDR6 SDRAM |
Memory Speed | 14 Gbps |
Bus Width | 128-bit |
System Requirements | System Requirements |
Required Power Supply | 500 W |
Additional Requirements | 8 pin PCI Express power connector |
Miscellaneous | Miscellaneous |
Software Included | Display drivers, ASUS GPU Tweak II |
Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
Width | 4.9 cm |
Depth | 24.3 cm |
Height | 13.4 cm |
Features - Asus - 90YV0GP0-M0NA00
GPU
AMD RX 6600 XT Series
More Details
Product Code
04:384726
EAN Code
4711081363118
Manufacturer
Asus
