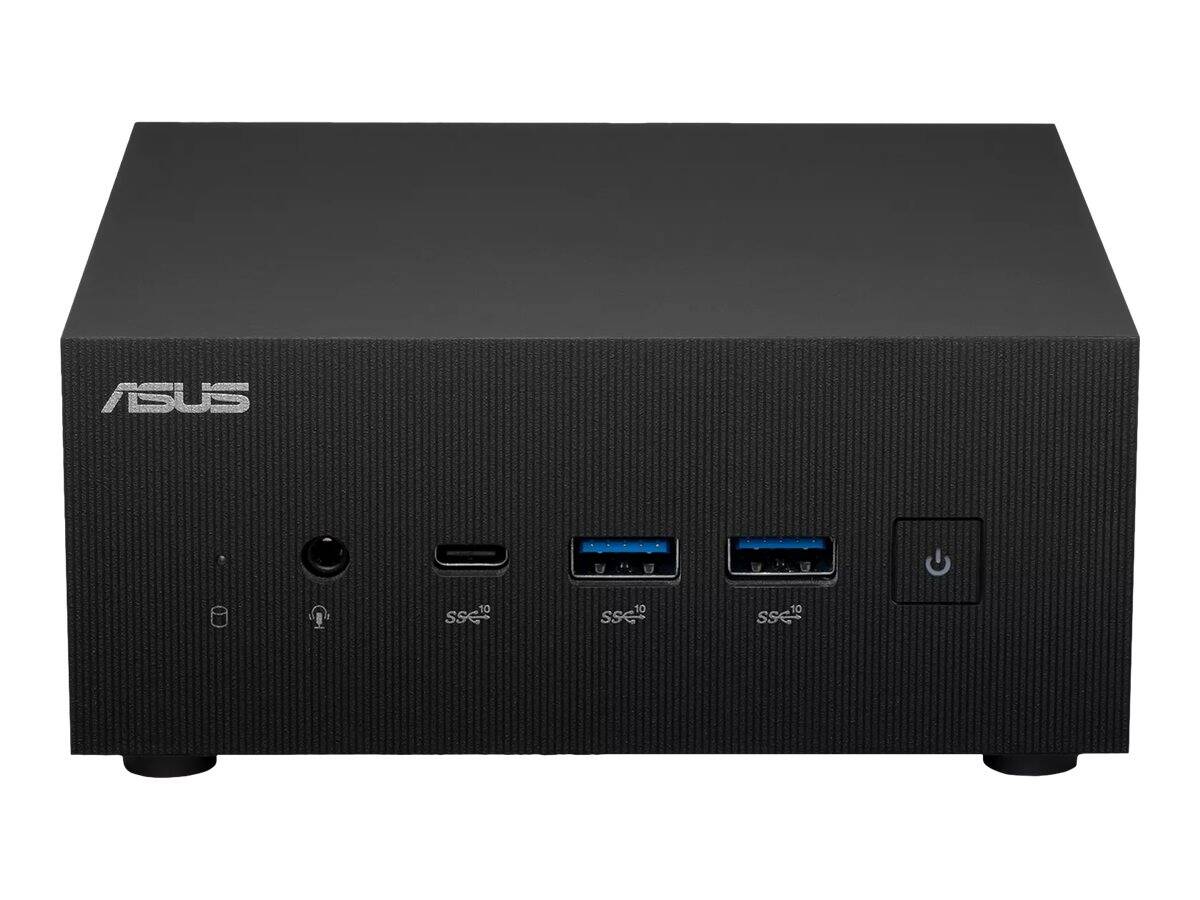

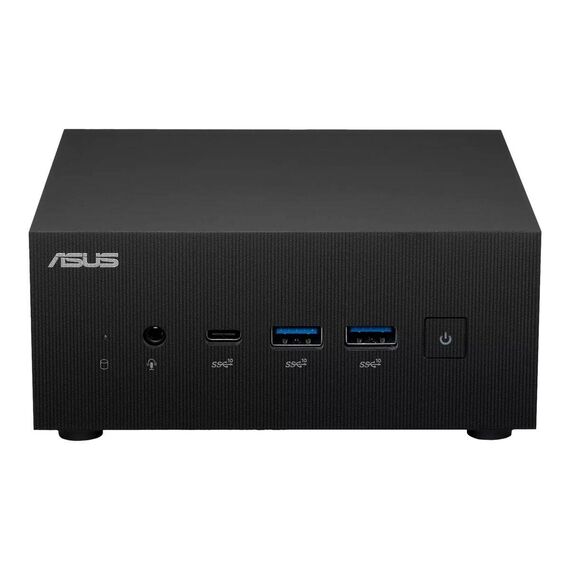

ASUS ExpertCenter PN64 S3032MD - Mini PC - Core i3 1220P - RAM 8 GB - SSD 256 GB - UHD Graphics - WLAN: Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) - no OS - monitor: none - eco black | 90MS02G1-M00100
Please sign in so that we can notify you about a reply
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Colour | Eco black |
| Processor / Chipset | |
| CPU | Intel Core i3 (12th Gen) 1220P |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | |
| Installed Size | 8 GB / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Networking | |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Dual stream (2x2) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card |
| Interfaces | 2 x HDMI (2 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 1 x DisplayPort 1.4 (1 rear) ¦ 1 x headphones/microphone (1 front) ¦ 3 x USB 3.2 Gen 2 (2 front, 1 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) (supports DisplayPort 1.4 and power delivery sink) ¦ 1 x USB-C 3.2 Gen 2 (1 front) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Power | |
| Device Type | Power adapter |
| Operating System / Software | |
| OS Provided | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Width | 12 cm |
| Depth | 13 cm |
| Height | 5.8 cm |
| Weight | 1 kg |
Features - Asus - 90MS02G1-M00100
CPU Type
- Intel Core i3
Capacity
256GB
More Details
Product Code
04:410086
EAN Code
4711081869900
Manufacturer
Asus
