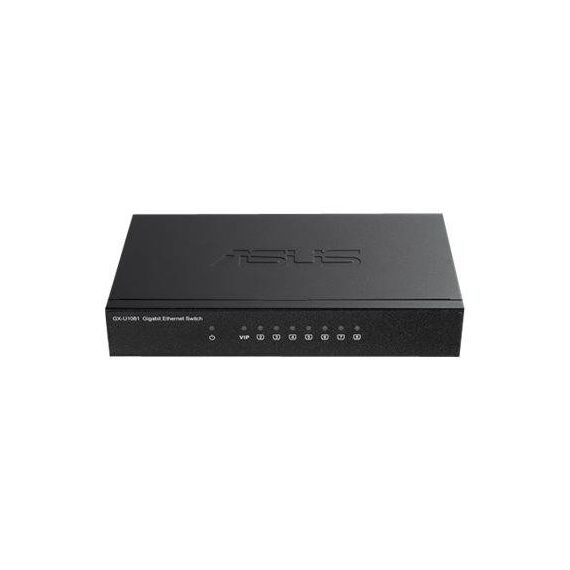

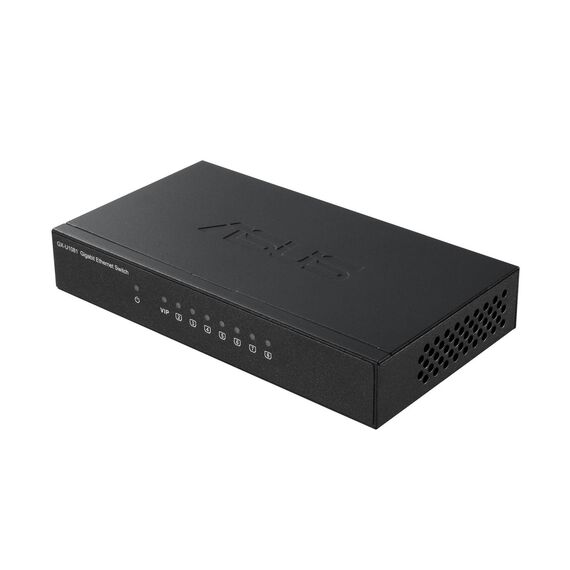

ASUS GX-U1081 / Switch / unmanaged / 8 x 10/100/1000 / desktop, wall-mountable | 90IG0670-BO3R00
ASUS GX-U1081 / Switch / unmanaged / 8 x 10/100/1000 / desktop, wall-mountable | 90IG0670-BO3R00
Description
Enjoy true plug-and-play convenience, with absolutely no setup required! Each port automatically configures itself depending on the type of device you connect, and the gigabit ports include a handy three-color signal quality indicator LED that tells you what speed the cable supports.Enjoy dedicated bandwidth priority via VIP port for own-selected device, reduce buffering by prioritizing high bandwidth activities with Quality of Service traffic management. No delay anymore!To maximize energy efficiency and help you save on your electric bills, the GX-U1081 automatically sleep-mode for idle ports or a connected device is turned off, and reduces power consumption for shorter cables.
ASUS GX-U1081 / Switch | 90IG0670-BO3R00
Special Features
- 8 Gigabit ports- delivers speed up to 1 GB/per second for time-saving data transfer
- Auto speed negotiation- auto adjusts speed to 1000/100/10 Mbps for connected devices
- VIP port- enjoy dedicated bandwidth priority via VIP port for own-selected device
- Super energy saving- designed with low power consumption; auto sleep-mode for idle ports, and reduces power consumption for shorter cables
- Extra compact size, metallic outlook with finless design- operates quietly and blends perfectly into modern homes and offices
- Plug and Play- absolutely no setup required, simple to use for any network
Product features
- Easy to use, no setup needed
Enjoy true plug-and-play convenience, with absolutely no setup required! Each port automatically configures itself depending on the type of device you connect, and the gigabit ports include a handy three-color signal quality indicator LED that tells you what speed the cable supports. - QoS VIP port
Enjoy dedicated bandwidth priority via VIP port for own-selected device, reduce buffering by prioritizing high bandwidth activities with Quality of Service traffic management. No delay anymore! - Super energy saving
To maximize energy efficiency and help you save on your electric bills, the GX-U1081 automatically sleep-mode for idle ports or a connected device is turned off, and reduces power consumption for shorter cables.
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 16KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), VIP ports, 192KB packet buffer |
| Compliant Standards | IEEE 802.1p, IEEE 802.3x |
| Status Indicators | Power, link/activity/speed |
| Interfaces | 8 x 1000Base-T RJ-45 |
| Power Device | External power adapter |
| Compliant Standards | Plug and Play |
| Width | 19.3 cm |
| Depth | 8.4 cm |
| Height | 2.6 cm |
| Weight | 325 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
