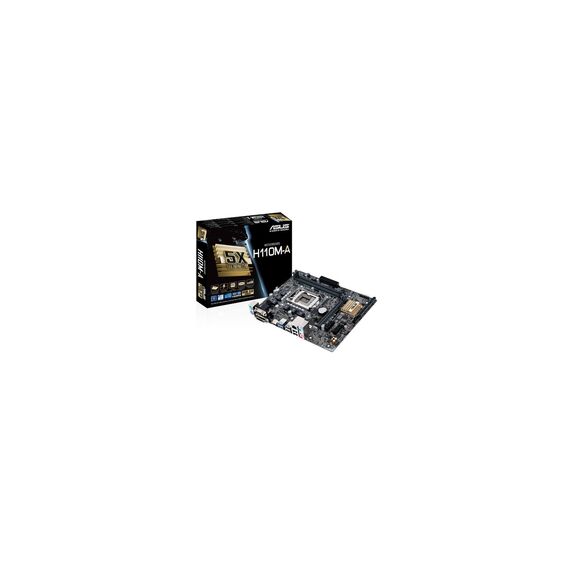

Asus H110M-AS1151 H110 MATX (90MB0P30-M0EAY0)

Asus 90MB0P30-M0EAY0 Asus H110M-AS1151 H110 MATX (90MB0P30-M0EAY0)

Full-featured micro-ATX H110 with 5X Protection II for dependable stability, LED-illuminated audio shielding, and DDR4 support
- 5X Protection II – Advanced hardware safeguards for all-around protection
- DDR4 memory compatibility
- Epic gaming audio with LED-illuminated shielding
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Fan Xpert: Active Quiet & Cool

Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge ESD can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to /- 10kV for air discharge and /-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

DDR4 Support
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Fan Xpert
Dedicated CPU and case fan controls
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

Feature list

Supported memory types:	DDR4-SDRAM
Memory slots type:	DIMM
Non-ECC:	Y
Supported memory clock speeds:	2133 MHz
Maximum internal memory:	32 GB
Unbuffered memory:	Y
Memory slots:	2
Processor family:	Intel
Compatible processor series:	Celeron,Core i3,Core i5,Core i7,Pentium
Processor socket:	LGA1151
USB 2.0 connectors:	2
USB 3.0 connectors:	2
Supported hard disk drive interfaces:	Serial ATA
Number of SATA connectors:	4
CPU fan connector:	Y
Number of COM connectors:	1
ATX Power connector 24-pin:	Y
Number of EATX power connectors:	1
Number of chassis fan connectors:	1
Front panel audio connector:	Y
USB 2.0 ports quantity:	4
USB 3.0 ports quantity:	2
Ethernet LAN RJ-45 ports:	1
VGA D-Sub ports quantity:	1
DVI-D ports quantity:	1
HDMI ports quantity:	1
Ethernet LAN:	Y
LAN controller:	Realtek RTL8111H
Ethernet interface type:	Gigabit
Component for:	PC
Motherboard chipset family:	Intel
Motherboard chipset:	Intel H110
Motherboard form factor:	Micro ATX
Audio system:	Realtek ALC887
Intel Extreme Memory Profile XMP:	Y
Mac operating systems supported:	N
Windows operating systems supported:	Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 Enterprise x64,Windows 8.1 x64
Maximum graphics adapter memory:	1024 MB
Graphics adapter family:	Intel
PCI Express x1 Gen 2.x slots:	2
PCI Express x16 Gen 3.x slots:	1
BIOS type:	UEFI AMI
BIOS memory size:	128 MB
ACPI version:	5.0
Clear CMOS jumper:	Y
Intel Clear Video HD Technology:	Y
Intel Turbo Boost Technology:	2.0
Intel Quick Sync Video Technology:	Y
Intel Insider:	Y
Intel InTru 3D Technology:	Y
Width:	185.5 mm
Height:	226.2 mm
Cables included:	SATA

Asus H110M-AS1151 H110 MATX (90MB0P30-M0EAY0)
