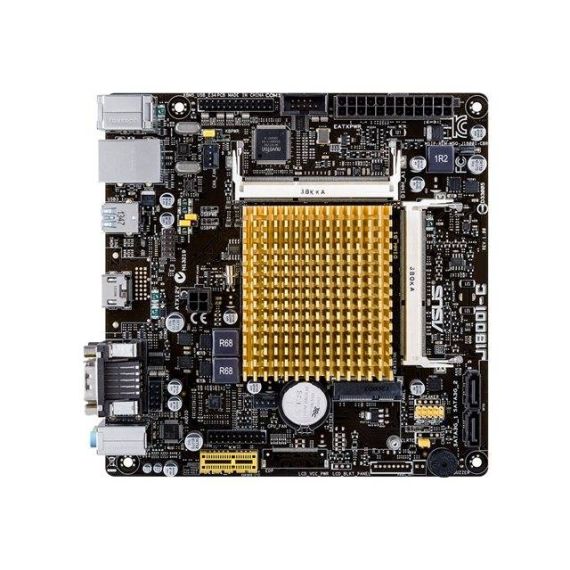

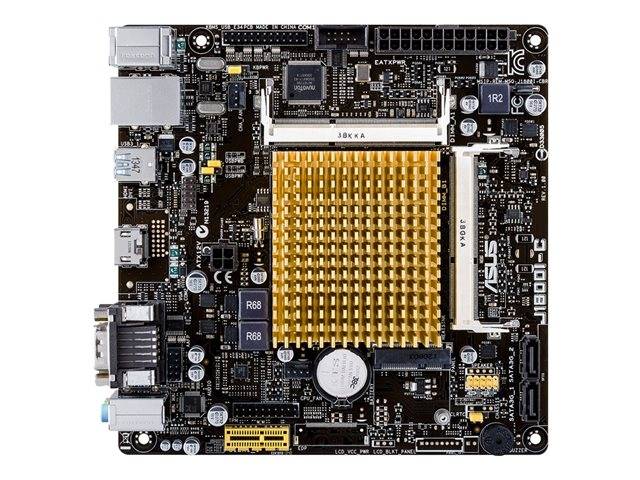

ASUS J1800I-C / Motherboard / mini ITX / Intel Celeron J1800 / USB 3.0 / Gigabit LAN / onboard graphics / HD Audio (8-channel) | 90MB0J60-M0EAY1

Save
7%
Asus-90MB0J60M0EAY1-Motherboards

Hover over an image to enlarge

Deals of the Week
92.76
86.27
(Including VAT) You save: 6.49
Out of stock
OTHER OFFERS OF THIS PRODUCT
WRHOUSE 1
Out of Stock
85.35 €
90MB0J60-M0EAY1
Product Code:03:213661
EAN Code:4716659709121
Manufacturer:Asus
Delivery
Payment options
Our advantages

24 months warrantyGuarantee for all purchased goods in our online store is 12 months

Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!


Free Store
Pickup

Delivery within 2-8
business days

2 Years Warranty

ASUS J1800I-C / Motherboard / mini ITX / Intel Celeron J1800 / USB 3.0 / Gigabit LAN / onboard graphics / HD Audio (8-channel) | 90MB0J60-M0EAY1

Description

This motherboard features an integrated Intel Celeron dual-core processor J1800 and Intel HD graphics. This revolutionary 22 nm ultra low voltage SoC (System On a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the latest DirectX 11 HD graphics. It features support for dual independent displays with resolutions up to 2500 x 1600, and also has integrated USB 3.0 support.

Special Features

  • UEFI BIOS and EZ mode: friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 boost (UASP support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: real-time network bandwidth management
  • CrashFree BIOS 3: restore corrupted BIOS data from USB storage
  • AI Suite 3: one-stop access to innovative ASUS features

Product features

  • Power efficiency plus high-resolution graphics, thanks to the integrated Intel Celeron dual-core SoC processor J1800 with HD graphics support
    This motherboard features an integrated Intel Celeron dual-core processor J1800 and Intel HD graphics. This revolutionary 22 nm ultra low voltage SoC (System On a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the latest DirectX 11 HD graphics. It features support for dual independent displays with resolutions up to 2500 x 1600, and also has integrated USB 3.0 support.
  • Exclusive EZ mode adds useful info to become even easier
    Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ mode has beautiful look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
  • USB 3.0 Boost (UASP support)
    ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance.
  • AI Suite 3
    ASUS AI Suite 3 offers excellent experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
  • Green ASUS
    Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

Product Specification

Product Type Motherboard - mini ITX
Processor Intel Celeron J1800 ( Dual-Core )
Max Size 8 GB
Technology DDR3L
Bus Clock 1333 MHz
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Graphics Controller Intel HD Graphics
Max Allocated RAM Size 512 MB
Type HD Audio (8-channel)
Audio Codec Realtek ALC887-VD
Compliant Standards High Definition Audio
Network Controller Realtek RTL8111G
Network Interfaces Gigabit Ethernet
Expansion Slots 2 x SO-DIMM 204-pin ¦ 1 x PCIe 2.0 x1 ¦ 1 x Mini PCIe
Storage Interfaces SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices
Interfaces 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.0 ¦ 1 x PS/2 keyboard ¦ 1 x VGA ¦ 1 x PS/2 mouse ¦ 1 x parallel ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector
BIOS Type AMI
BIOS Features WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, UEFI BIOS, ACPI 5.0 support
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Hardware Features Jack retasking, ASUS Anti-Surge Protection, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS Fan Xpert, Conductive Polymer Capacitors, USB 3.0 Boost, ASUS Network iControl, Intel Smart Connect Technology, ASUS Boot Setting, Preboot eXecution Environment (PXE), Clear CMOS Button
Included Accessories I/O back plate
Cables Included 2 x Serial ATA cable
Software Included ASUS MyLogo2, ASUS EZ Flash 2, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update
Compliant Standards Plug and Play, ACPI 2.0a
Width 17 cm
Depth 17 cm
