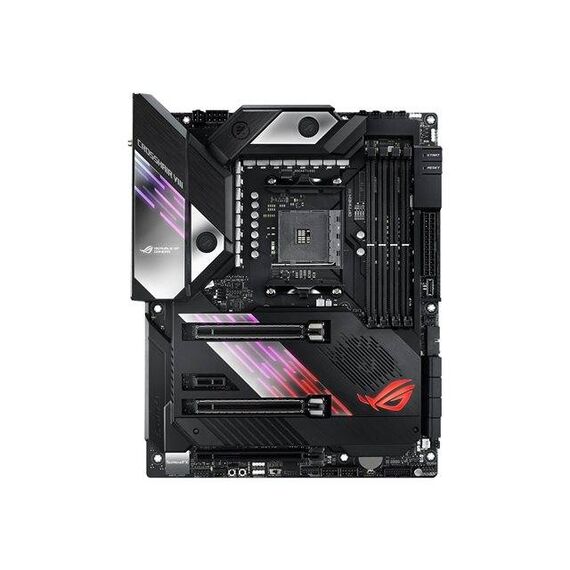

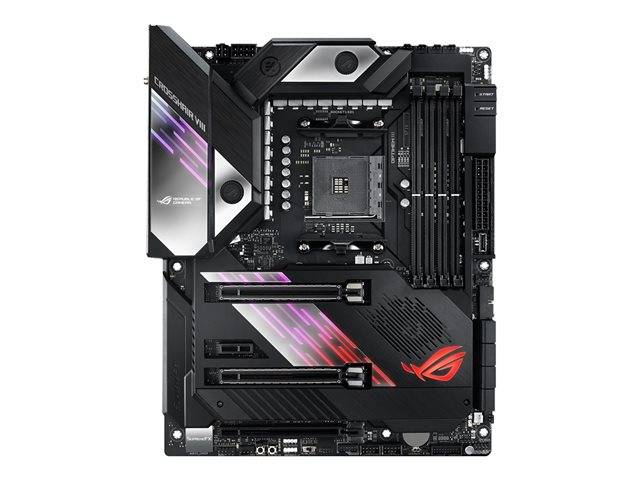

ASUS ROG Crosshair VIII Formula / Motherboard / ATX / Socket AM4 / AMD X570 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Bluetooth, Gigabit LAN, Wi-Fi, 5 Gigabit Ethernet / HD Audio (8-channel) | 90MB10Z0-M0EAY0

90MB10Z0-M0EAY0
387.21 420.88
460.78 inc. VAT
Out of stock
Product Code03:124950 EAN Code4718017386647 ManufacturerAsus
Find similar
Delivery
Payment options

ASUS ROG Crosshair VIII Formula / Motherboard / ATX / Socket AM4 / AMD X570 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Bluetooth, Gigabit LAN, Wi-Fi, 5 Gigabit Ethernet / HD Audio (8-channel) | 90MB10Z0-M0EAY0

Description

ROG has partnered with EK Water Blocks to create an integrated VRM water-cooling solution that keeps the massive power of the latest AMD Ryzen processors under control. Keeping with the water-cooling theme, the ROG Crosshair VIII Formula features on-board lighting that casts a "rainfall" design which pops against the board's mirror finish and is accented by the ROG logo. With its incredible cooling performance and gamer-oriented features, ROG Crosshair VIII Formula is the perfect foundation for your next high-performance gaming rig.

ASUS ROG Crosshair VIII Formula / Motherboard | 90MB10Z0-M0EAY0

Special Features

  • Chilling design
  • Boosted performance
  • Uncomplicated system tuning
  • The power to personalize

Product features

  • Chilling design
    Effective cooling is extremely important, so the ROG Crosshair VIII Formula provides comprehensive cooling features that enable higher performance at lower temperatures.
  • Boosted performance
    ROG Crosshair VIII Formula comes equipped with an optimized power-design layout to handle the prodigious power of the AMD Ryzen processors without throttling.
  • Uncomplicated system tuning
    ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system.
  • The power to personalize
    ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.


Product Specification

Product Type Motherboard - ATX
Chipset Type AMD X570
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Type HD Audio (8-channel)
Audio Codec SupremeFX (S1220A)
Compliant Standards High Definition Audio
Network Controller Intel I211-AT / Aquantia AQC111C
Network Interfaces Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac, 5 Gigabit Ethernet
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1
Storage Interfaces SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Interfaces 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 7 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x USB-C Gen2
Internal Interfaces 4 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
BIOS Type AMI
BIOS Features WfM 2.0 support, USB BIOS Flashback, UEFI BIOS, SMBIOS 3.2 support, ACPI 6.2 support
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, ASUS EPU (Energy Processing Unit), NVIDIA 3-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS ROG Extreme OC, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Onboard Button, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Clear CMOS Button, Dual Intelligent Processors 5, LANGuard, ROG SSD Secure Erase, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS LiveDash, pre-mounted I/O shield, Sonic Studio Link, Armoury Crate, ESS ES9023P, ROG RGB Armor, Crosschill EK III, ASUS Node, MicroFine Alloy Chokes, PowIRstage IR3555 MOSFETs, GameFirst V, Tweakers' Paradise
Included Accessories External antenna, 1 x M.2 screw, ROG coasters, RGB (RGBW) LED strip extension cable, ROG big sticker, ROG thank you card, RGB Addressable LED extension cable, ROG logo plate sticker, Q-Connector
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ROG Mem TweakIt Utility, ASUS AI Suite III, RAMdisk, ASUS Turbo App, Overwolf, ASUS ROG RAMCache III, ROG GameFirst V
Compliant Standards Plug and Play
Width 30.5 cm
Depth 24.4 cm
Service & Support Limited warranty - 3 years

Features - Asus - 90MB10Z0-M0EAY0

More Details
Product Code
03:124950
EAN Code
4718017386647
Manufacturer
Asus
