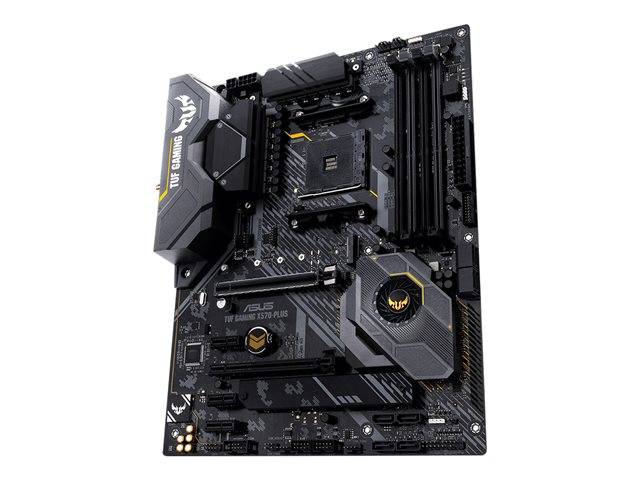

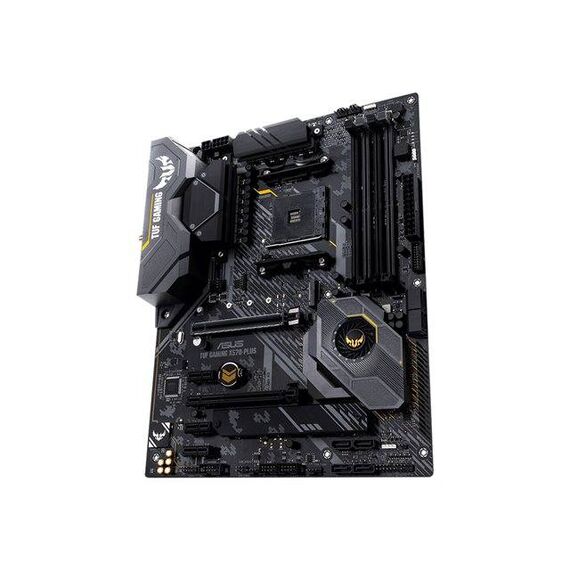

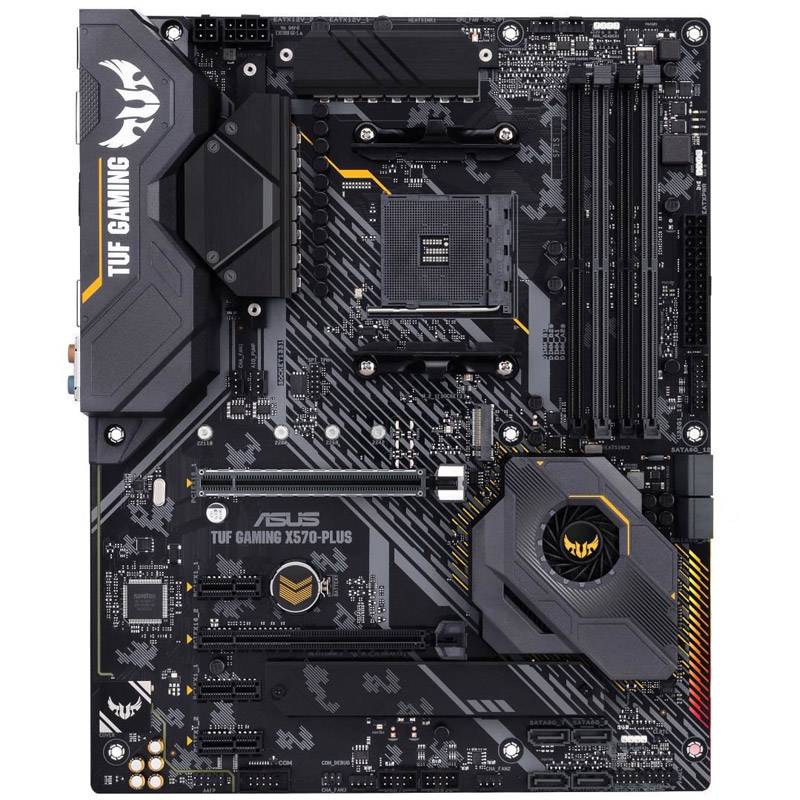

ASUS TUF GAMING X570-PLUS / Motherboard / ATX / Socket AM4 / AMD X570 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1180-M0EAY0

Description

TUF Gaming X570-Plus distills the essential elements of the AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, excellent compatibility, and complementary aesthetics from components to case.

ASUS TUF GAMING X570-PLUS / Motherboard | 90MB1180-M0EAY0

Special Features

• AMD AM4 socket: ready for 2nd and 3rd Gen AMD Ryzen processors
• 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
• Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
• Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
• Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
• ASUS hardware ecosystem ensures advanced compatibility and complementary aesthetics from components to case

Product features

• Rock-solid performance
  With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus is the perfect foundation for your next high-core-count AMD battle rig.
• VRM heatsink
  Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.
• Thermal pad
  High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
• Active chipset heatsink
  A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.
• M.2 heatsink
  The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
• Dual PCIe 4.0 M.2
  Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.
• Proprietary memory design
  ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
• Easy PC DIY
  TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
• SafeSlot
  SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
• ESD Guards
  ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.
• TUF LANGuard
  TUF LANGuard is an innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
• DRAM overvoltage protection
  Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
• Stainless steel back I/O
  TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3x longer lifespan.
• Outshine the competition
  A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
• Exclusive Gigabit Ethernet
  Experience ultra-fast gaming with the ASUS-exclusive Realtek L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
• Audio enjoyment
  Premium Japanese audio capacitors provide warm, natural, and immersive sound.
• Audio shielding
  Separates analog/digital signal domains, significantly reducing multi-lateral interference.
• Signal-to-noise ratio
  TUF Gaming X570 series motherboards utilize a unique audio codec designed in close collaboration with Realtek - the Realtek S1200A. It also features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.
• AMD X570 chipset
  The AMD X570 chipset delivers outstanding overclocking capabilities for the AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
• AMD AM4 Socket for 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics processors
  The high-performance 3rd Gen AMD Ryzen processors are based on the 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
