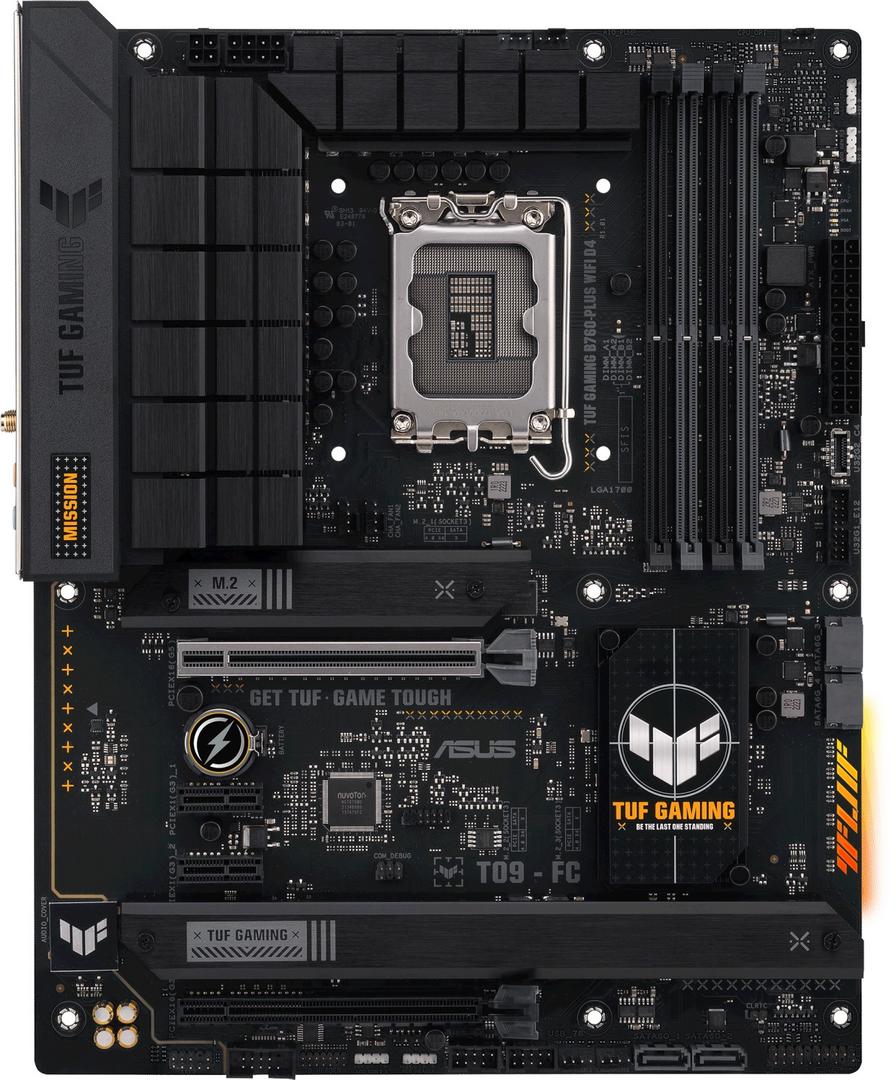

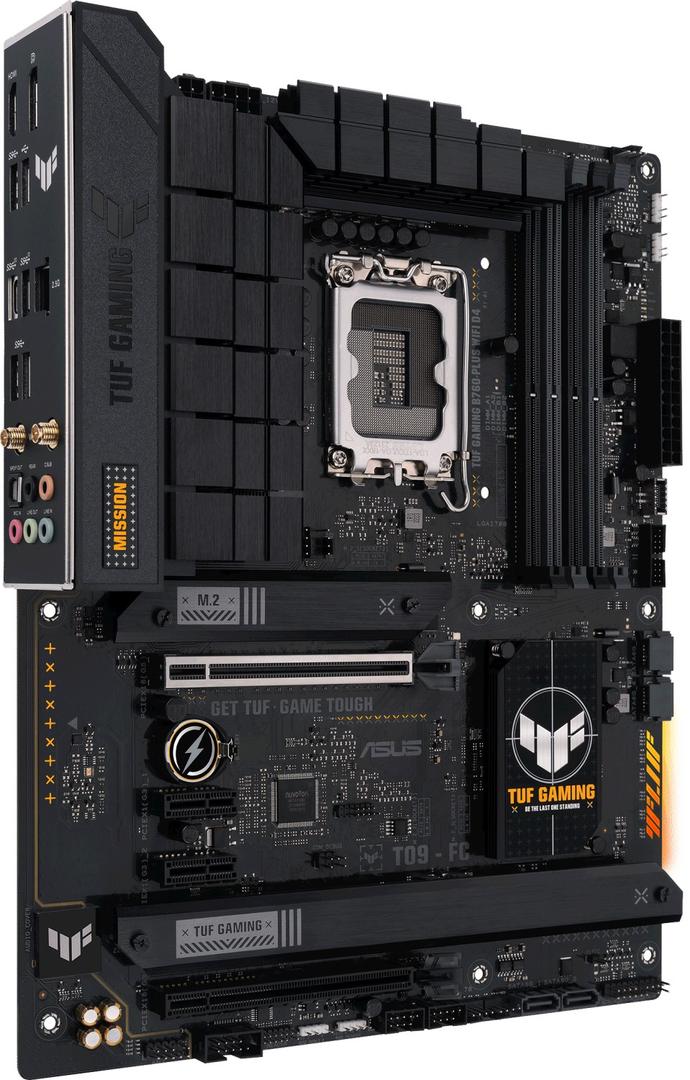

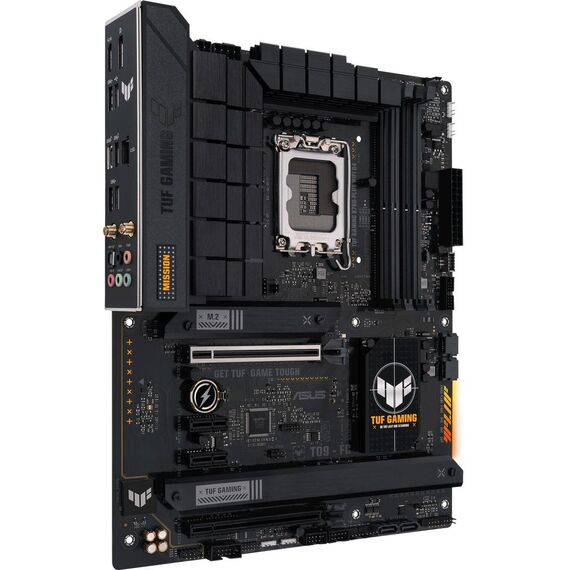

ASUS TUF GAMING B760-PLUS WIFI D4 / Motherboard / ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1DF0-M0EAY0

Product Features

• All-around energy efficiency
  The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
• UEFI BIOS
  The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
• DrMOS power stages
  14 + 1 power stages combine high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
• Six-layer PCB design
  The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
• 8 + 4 pin ProCool power connectors
  Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
• TUF chokes
  Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
• TUF capacitors
  The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5x-longer lifespan than standard motherboard capacitors.
• Digi+ VRM
  The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
• DRAM overclocking performance
  Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
• Cooler by design
  The TUF GAMING B760-PLUS WIFI D4 is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
• Connectivity
  The TUF GAMING B760-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.
• Build with confidence
  TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With many partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
• SafeSlot Core+ and SafeDIMM
  SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot - all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
• ESD Guards
  ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
• TUF LANGuard
  TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

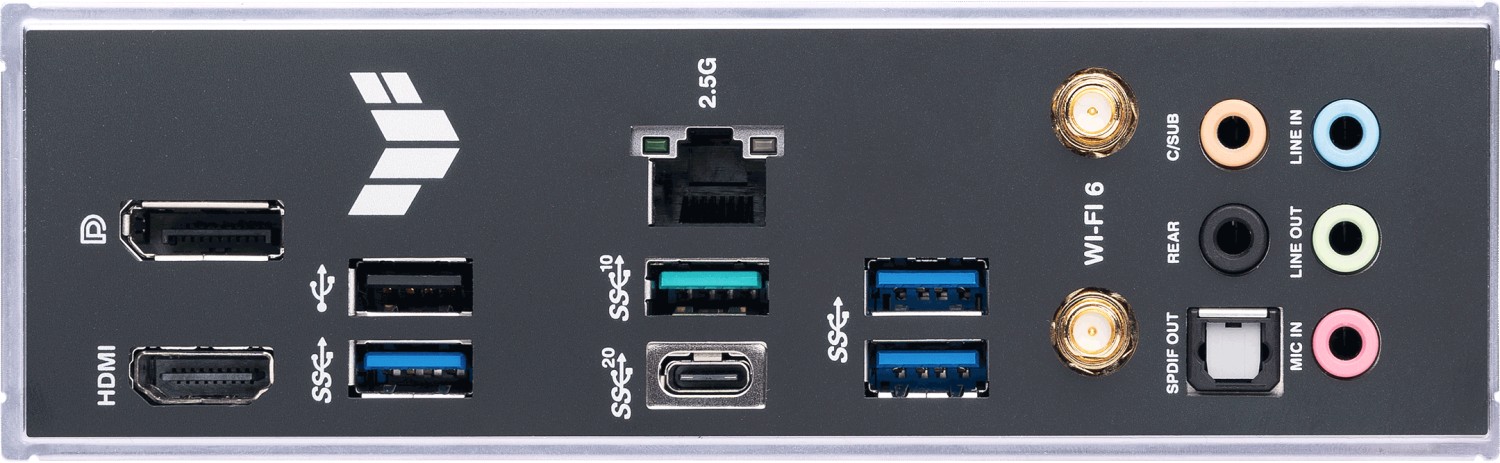

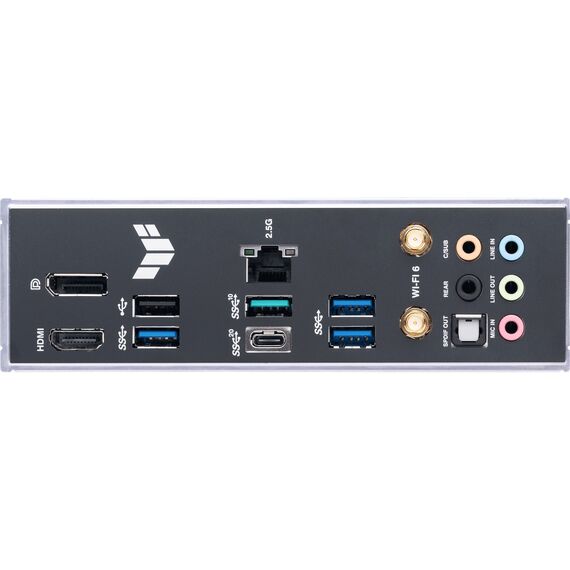

• Stainless steel back I/O panel
  TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
• M.2 Q-Latch
  The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
• Removable captive screws
  Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.
• Q-LED
  The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup.
• Intel 2.5 Gb Ethernet
  On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5x. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.
• Two-way AI noise cancelation
  This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.
• Realtek 7.1 surround sound
  The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760 motherboard features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
• DTS Audio Processing
  DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.
• Outshine the competition
  A well-tuned system deserves a matching aesthetic. The TUF GAMING B760 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.
• Addressable Gen 2 RGB header
  Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.

Special Features

• All-around energy efficiency
• UEFI BIOS
• DrMOS power stages
• Six-layer PCB design
• 8 + 4 pin ProCool power connectors
• TUF chokes
• TUF capacitors
• Digi+ VRM
• Unleash DDR5 with AEMP II
• Cooler by design
• Build with confidence
• SafeSlot Core+ and SafeDIMM
• ESD Guards
• TUF LANGuard
• Stainless steel back I/O panel
• M.2 Q-Latch
• Removable captive screws
• Q-LED
• Intel 2.5 Gb Ethernet
• Two-way AI noise cancelation
• Realtek 7.1 surround sound
• DTS Audio Processing
• Outshine the competition
• Addressable Gen 2 RGB header
