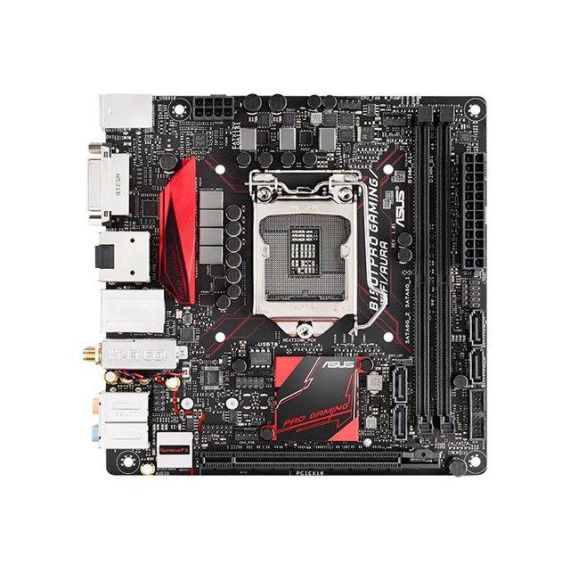

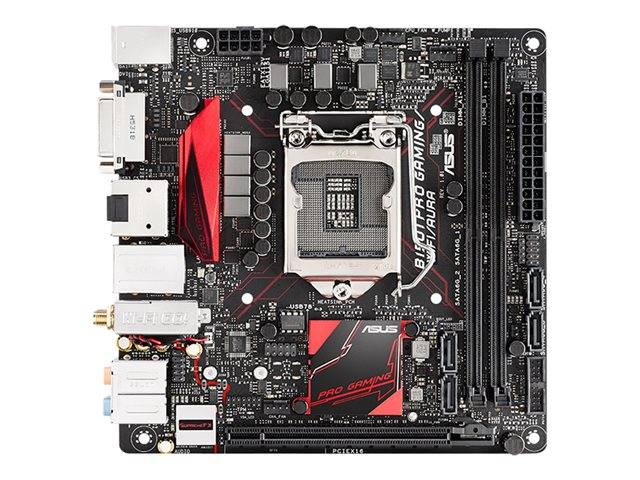

ASUS B150I PRO GAMING/WIFI/AURA / Motherboard / mini ITX / LGA1151 Socket / B150 / USB 3.0, USB-C / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0NI1-M0EAY0
ASUS B150I PRO GAMING/WIFI/AURA / Motherboard / mini ITX / LGA1151 Socket / B150 / USB 3.0, USB-C / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0NI1-M0EAY0
Description Be the best on the battlefield with B150I Pro Gaming/Wi-Fi/Aura's truly immersive SupremeFX audio and experience sound so alive with realism that it hands you the vital competitive edge needed to win. With near-lossless delivery and exclusive Sonic Radar II technology to pinpoint battlefield enemies before they spot you, SupremeFX sounds stupendous - and puts both your ears and frags in front of everyone else! Special Features
Product features
|
Product Specification
Product Type | Motherboard - mini ITX |
Chipset Type | Intel B150 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
Max Size | 32 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Max Allocated RAM Size | 1024 MB |
Type | HD Audio (8-channel) |
Audio Codec | SupremeFX |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V |
Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 |
Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 4 x 7pin SATA, 1 x M.2 |

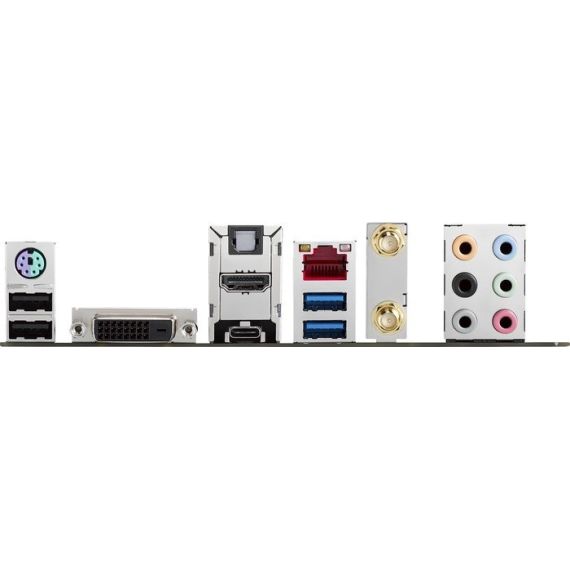

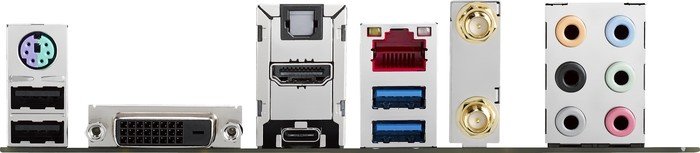

Interfaces | 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 1 x USB-C ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DVI ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK |
Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Hardware Features | Jack retasking, ASUS Q-Design, GameFirst, ESD Guards, Q-DIMM, Q-LED, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, USB 3.0 Boost, SupremeFX Shielding technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, Sonic Radar II, ASUS Gamer's Guardian, AURA RGB Lighting Control |
Included Accessories | Cable ties, I/O back plate, cable labels, 1 x M.2 screw |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Media Streamer, HyStream, ASUS RAMCache, ASUS EZ Flash 3 |
Compliant Standards | Plug and Play, ACPI 5.0 |
Width | 17 cm |
Depth | 17 cm |
