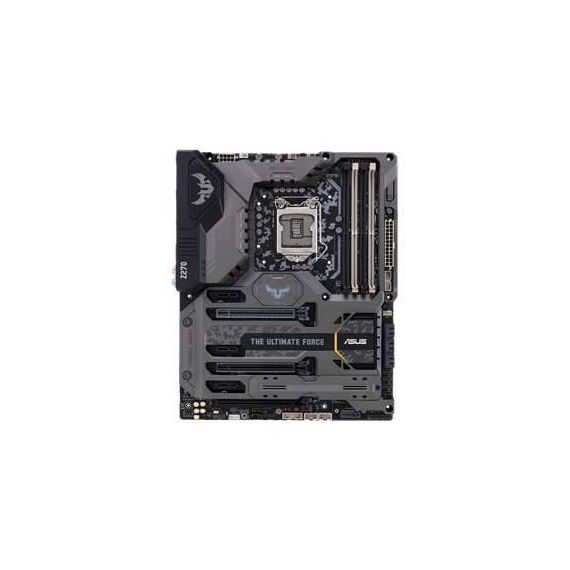

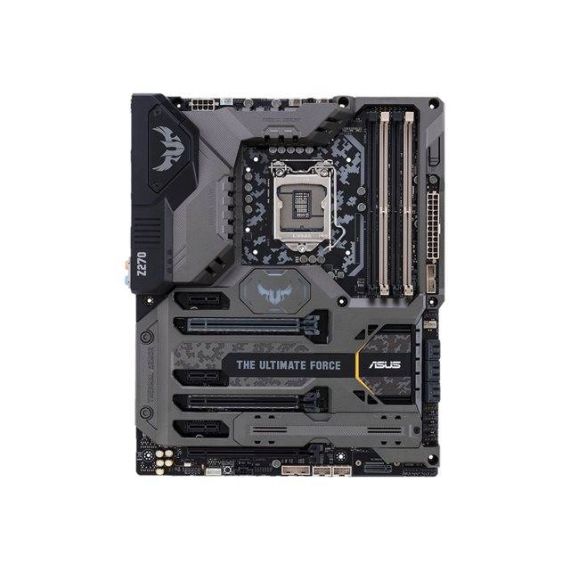

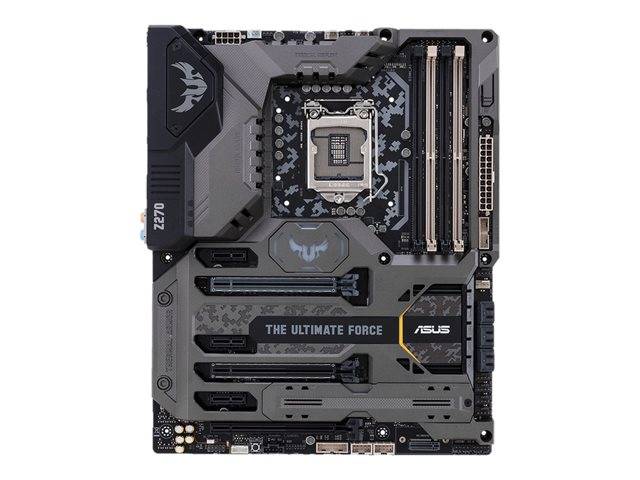

ASUS TUF Z270 MARK 1 / Motherboard / ATX / LGA1151 Socket / Z270 / USB 3.0, USB 3.1, USB-C / 2 x Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0S20-M0EAY0
ASUS TUF Z270 MARK 1 / Motherboard / ATX / LGA1151 Socket / Z270 / USB 3.0, USB 3.1, USB-C / 2 x Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0S20-M0EAY0
Description TUF is where ambition for reliably brilliant performance meets reality. When you build a system using the TUF Z270 Mark 1 motherboard, you build with the confidence of total stability and proved compatibility. Whether you want to work or mod, be sure to build on a solid foundation with The Ultimate Force - that's TUF! Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z270 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Max Allocated RAM Size | 1 GB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALCS1220A |
Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X |
Network Controller | Intel I219V / I211 |
Network Interfaces | 2 x Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
RAID Features | Intel Rapid Storage Technology |
Interfaces | 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 ¦ 2 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB-C ¦ 1 x DisplayPort |
Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS O.C. Profile, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.0 support |
Hardware Features | C.P.R. (CPU Parameter Recall), jack retasking, MemOK!, ASUS Q-Design, TUF Engine!, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), TUF Thermal Armor, Intel Smart Response Technology, AMD 3-way CrossFireX technology support, ASUS DIGI+ Power Control, Ultimate COOL!, Safe & Stable! Guardian Angel, TUF Dust Defender, TUF Fortifier, ASUS O.C. Tuner, Turbo LAN, TUF ICe, Memory O.C. Design, TUF ESD Guards 2, TUF LANGuard, ASUS Crystal Sound 3, ASUS PRO Clock Technology, TUF Detective 2, TUF Components, AURA RGB Lighting Control, Intel Optane Memory Ready, ASUS 8 + 4 Digital Phase Power Design, TUF Thermal Radar 2+ |
Included Accessories | Accessory package, 1 x M.2 screw, I/O back cover, TUF stickers, vertical M.2 bracket set |
Cables Included | 4 x Serial ATA cable ¦ 1 x SLI bridge |
Software Included | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, ASUS EZ Flash 3, Cloud GO! |
Compliant Standards | Plug and Play |
Width | 30.5 cm |
Depth | 24.4 cm |
Service & Support | Limited warranty - 3 years |
