ASUS ROG STRIX B360-I GAMING / Motherboard / mini ITX / LGA1151 Socket / B360 / USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0WH0-M0EAY0
ASUS ROG STRIX B360-I GAMING / Motherboard / mini ITX / LGA1151 Socket / B360 / USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0WH0-M0EAY0
Description Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination - to create a personalized gaming with immersion that extends from the inside out.The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.Proper gaming audio built in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices.Loaded with the latest technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy. ASUS ROG STRIX B360-I GAMING / Motherboard | 90MB0WH0-M0EAY0Special Features
Product features
|
Product Specification
Product Type | Motherboard - mini ITX |
Chipset Type | Intel B360 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
Max Size | 32 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | SupremeFX (S1220A) |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V |
Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |

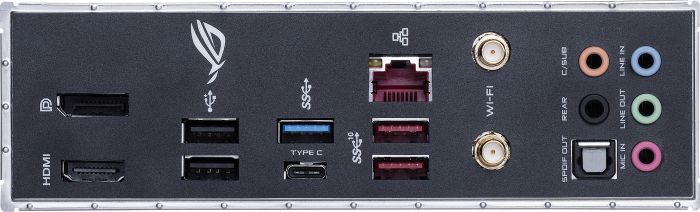

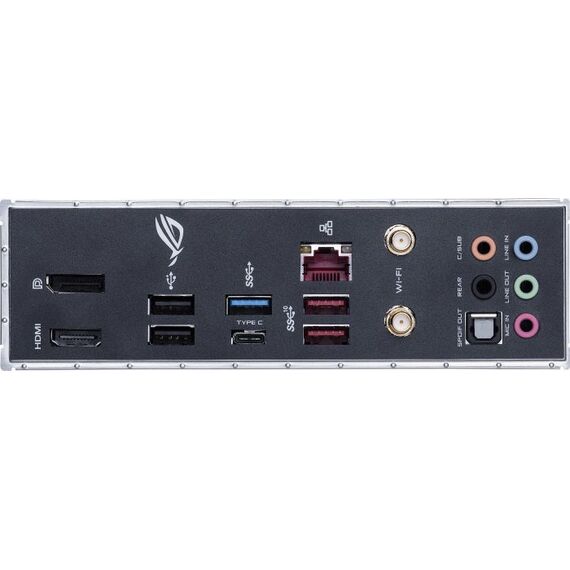

Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB 3.1 Gen 1 ¦ 1 x USB-C Gen1 |
Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x speaker - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS Q-Shield, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, dual headphone amplifiers, LANGuard, GameFirst IV, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Sonic Studio Link |
Included Accessories | Cable ties, ASUS Wi-Fi GO! card, ROG fan stickers, 2 x M.2 screws, M.2 2242 mounting kit |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Overwolf, ASUS EZ Flash 3, ROG Aura, ASUS ROG RAMCache II, ROG CloneDrive |
Compliant Standards | Plug and Play |
Width | 17 cm |
Depth | 17 cm |
