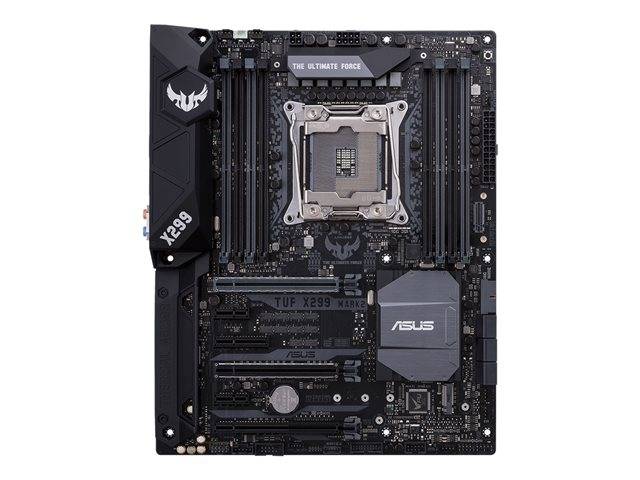

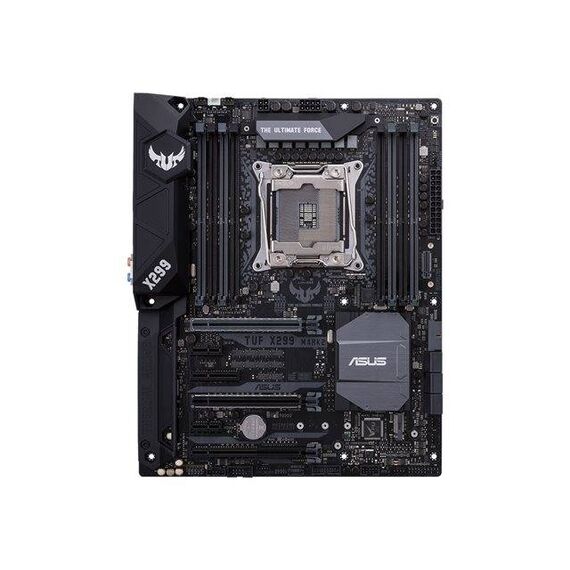

ASUS TUF X299 MARK 2 / Motherboard / ATX / LGA2066 Socket / X299 / USB 3.1 Gen 1, USB 3.1 Gen 2 / Gigabit LAN / HD Audio (8-channel) | 90MB0UB0-M0EAY0
|
Description TUF X299 Mark 2 is the durable ATX motherboard made for enthusiasts, modders and gamers who demand reliable performance day in, day out. ASUS T-Topology allows memory frequencies that are higher than ever. ASUS-exclusive T-Topology circuit design provides superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. Refined manufacturing ensures ultra-consistent quality, minimal crosstalk between custom trace paths, and time-aligned signaling for superior stability and compatibility. SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X299 Express |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core X |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (44-lane CPU (x16, x16/x16, x16/x16/x8 modes), 28-lane CPU (x16, x16/x8, x16/x8/x4 modes), 16-lane CPU (x16, x8/x8, x8/x8/x1 modes)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 2 x USB 3.1 Gen 2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.0 support |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, MemOK!, ASUS Q-Design, TUF Engine!, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, TUF Thermal Armor, Intel Smart Response Technology, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, Ultimate COOL!, Safe & Stable! Guardian Angel, Preboot eXecution Environment (PXE), anti-pop function, Turbo LAN, TUF ESD Guards 2, TUF LANGuard, ASUS PRO Clock Technology, TUF Components, AURA RGB Lighting Control, Intel Turbo Boost Technology 3.0, Intel Optane Memory Ready, TUF Thermal Radar 3 |
| Included Accessories | I/O back plate, 1 x M.2 screw, TUF stickers, vertical M.2 bracket set |
| Cables Included | 4 x Serial ATA cable ¦ 1 x SLI bridge |
| Software Included | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 5 years |
Features - Asus - 90MB0UB0-M0EAY0
More Details
Product Code
04:228556
EAN Code
4712900775174
Manufacturer
Asus
