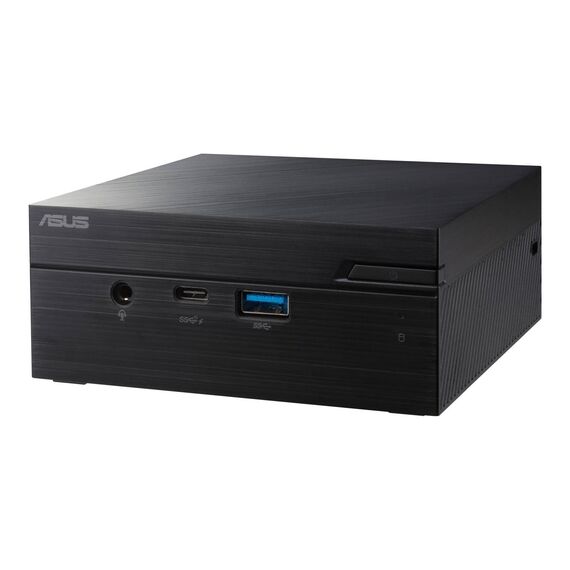

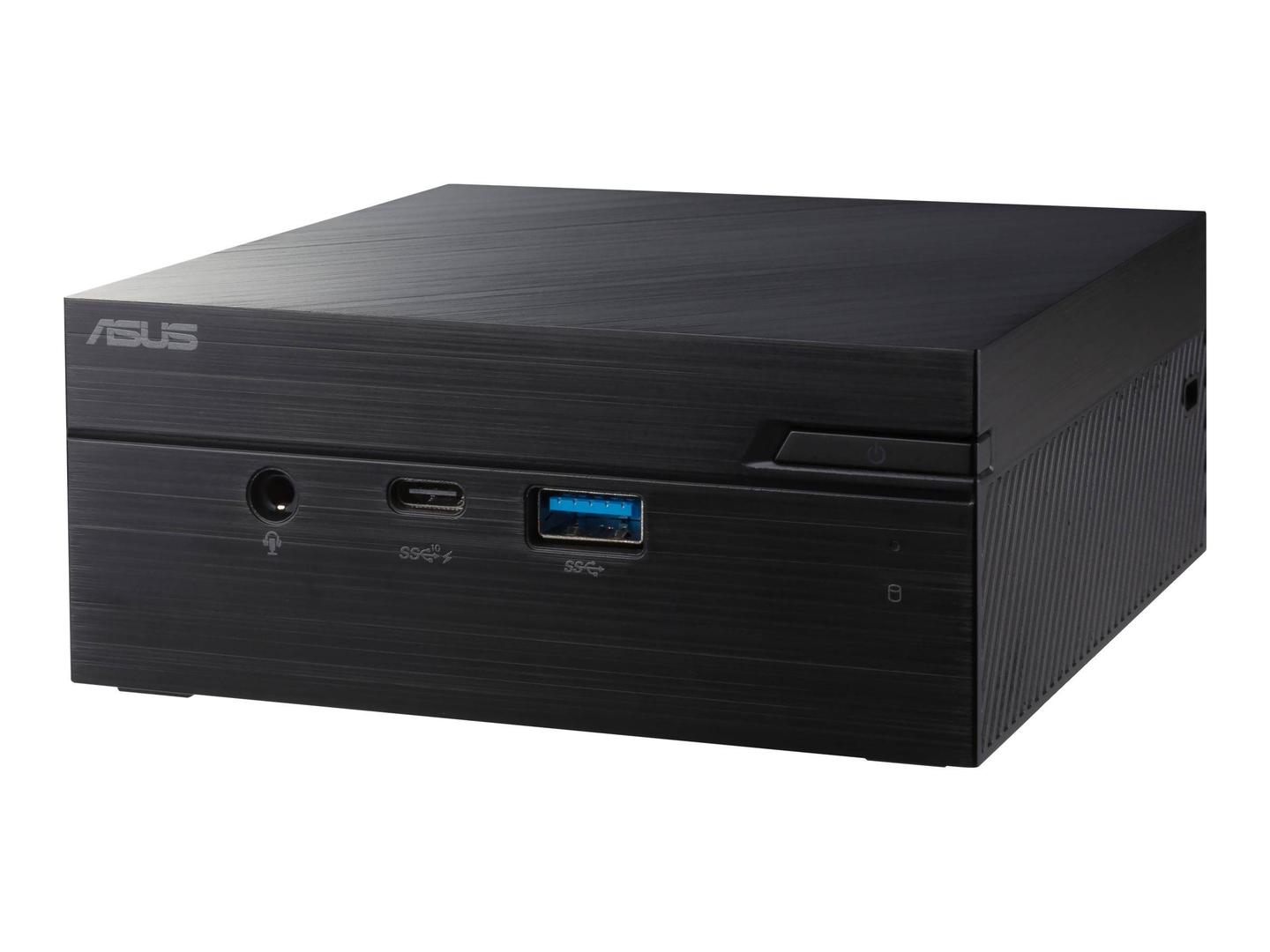

ASUS Mini PC PN41 BC031ZVS1 / Mini PC / Celeron N4500 / 1.1 GHz / RAM 4 GB / SSD 128 GB / NVMe / UHD Graphics / GigE, 2.5 GigE / WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 / Win 11 Pro | 90MS0271-M001V0
Product Features
- Easy modification, maximum possibilities
ASUS Mini PC PN41 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the advanced Intel processor with Intel UHD graphics, plus support for high-speed memory, Mini PC PN41 is ready for everyday multitask computing, yet its diminutive size makes it well-suited for applications where traditional PCs won't fit - from digital signage to small home-office setups. - Performance
ASUS Mini PC PN41 is powered by the advanced Intel processor. Compared with traditional same-tier mobile processor, the Intel mobile processor deliver performance improvements of up to 36.45% for single-thread computing, up to 31.8% for multi-thread computing, and up to a 32% lift for the entire system - ensuring smooth operations for everything you do. - Powerful graphics
ASUS Mini PC PN41 delivers class-leading graphics performance with integrated Intel UHD graphic. In fact, compared to previous-generation mobile processor, PN41's graphics performance has increased by over 90% - and by an impressive 120% in 3D Mark Fire Strike. - Hyper-fast 2.5 Gbps networking
ASUS Mini PC PN41 is engineered with onboard networking that runs at up to 2.5 Gbps - or 2.5x faster than even Gigabit Ethernet. This hyper-fast LAN support provides seriously speedy networking that makes everyday tasks smoother and more efficient. - Power delivery input
With support for USB power delivery input, PN41 can receive power from a supported display or other device via a cable, eliminating the need for separate power adapters to keep your workspace uncluttered. - Fanless chassis and a dedicated SSD heatsink
ASUS Mini PC PN41 has a fanless design to support a 6-watt CPU, so it's ideal for industrial applications where reliability, durability and low noise levels are paramount. It also has a dedicated heatsink to cool the SSD, keeping the average temperature of the drive at a mere 50°C. - High-speed connectivity
ASUS Mini PC PN41 provides comprehensive connectivity with multiple ports. PN41 also provides Power Delivery input for setup simplicity and easier cable management. - Reduce environmental impact while lowering operating costs
ASUS Mini PC PN41 has an energy-efficient design that reduces environmental impact while helping to lower operating costs. Eco-friendly ASUS Mini PCs are recipients of some of the industry's environmental certifications, including ENERGY STAR. Specifically, PN41 consumes as little as 3.69 watts at idle. It is also whisper-quiet, with the fan-cooled model generating just 34.1 dB(A) at full load. Its fanless sibling generates a mere 23.5 dB(A) at full load.
Special Features
- Easy modification, maximum possibilities
- Powerful graphics
- Hyper-fast 2.5 Gbps networking
- Power delivery input
- Fanless chassis and a dedicated SSD heatsink
- High-speed connectivity
- Reduce environmental impact while lowering operating costs
Product Specification
Type | Personal computer |
Product Form Factor | Mini PC |
Colour | Black |
Processor / Chipset | Processor / Chipset |
CPU | Intel Celeron N4500 |
Clock Speed | 1.1 GHz |
Max Turbo Speed | 2.8 GHz |
Number of Cores | Dual-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
RAM | RAM |
Installed Size | 4 GB |
Technology | DDR4 SDRAM |
Form Factor | SO-DIMM 260-pin |
Hard Drive | Hard Drive |
Type | SSD - M.2 |
Capacity | 1 x 128 GB |
Interface Type | PCI Express 3.0 |
Features | NVM Express (NVMe) |
Storage Controller | Storage Controller |
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Optical Storage | Optical Storage |
Type | No optical drive |
Monitor | Monitor |
Monitor Type | None. |
Graphics Controller | Graphics Controller |
Graphics Processor | Intel UHD Graphics |
Video Interfaces | VGA, HDMI, DisplayPort |
Networking | Networking |
Ethernet Controller | Realtek RTL8125B-CG |
Wireless LAN Supported | Yes |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0 |
Features | Dual stream (2x2) |
Expansion / Connectivity | Expansion / Connectivity |
Bays | 1 (total) / 1 (free) x internal 2.5" |
Interfaces | 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x headphones/microphone (1 in front) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) ¦ 1 x Mini DisplayPort |
Miscellaneous | Miscellaneous |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
VESA Mounting Interface | Yes |
Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
Power | Power |
Device Type | Power adapter |
Power Provided | 65 Watt |
Operating System / Software | Operating System / Software |
OS Provided | Windows 11 Pro |
Environmental Standards | Environmental Standards |
ENERGY STAR Certified | Yes |
Dimensions & Weight | Dimensions & Weight |
Width | 11.5 cm |
Depth | 11.5 cm |
Height | 4.9 cm |
Weight | 700 g |
Features - Asus - 90MS0271-M001V0
- Intel Celeron
