ASUS Mini PC PN61 B7048MT / Mini PC / Core i7 8565U / RAM 8 GB / SSD 256 GB / UHD Graphics 620 / GigE / WLAN: Bluetooth 4.0, 802.11ac / no OS / monitor: none | 90MS01H1-M00480
90MS01H1-M00480
CPU TypeIntel Core i7
Memory Size8GB
Capacity128GB
Product Code04:303346
EAN Code4718017337243
ManufacturerAsus
Sales 10%
Promotion details
Sales 10% at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
ASUS Mini PC PN61 B7048MT / Mini PC / Core i7 8565U / RAM 8 GB / SSD 256 GB / UHD Graphics 620 / GigE / WLAN: Bluetooth 4.0, 802.11ac / no OS / monitor: none | 90MS01H1-M00480
Description

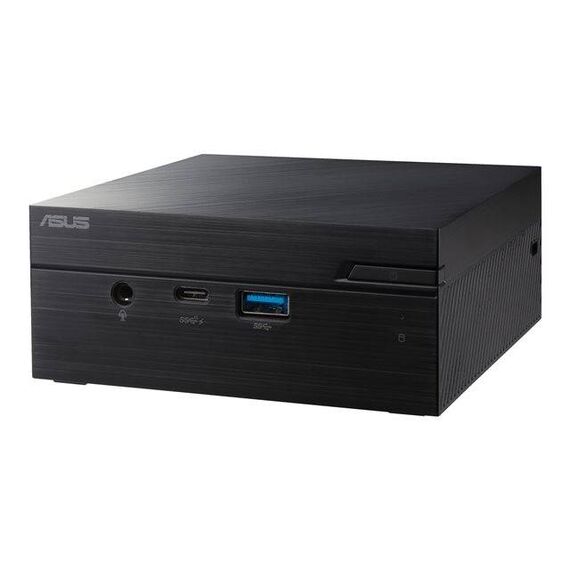

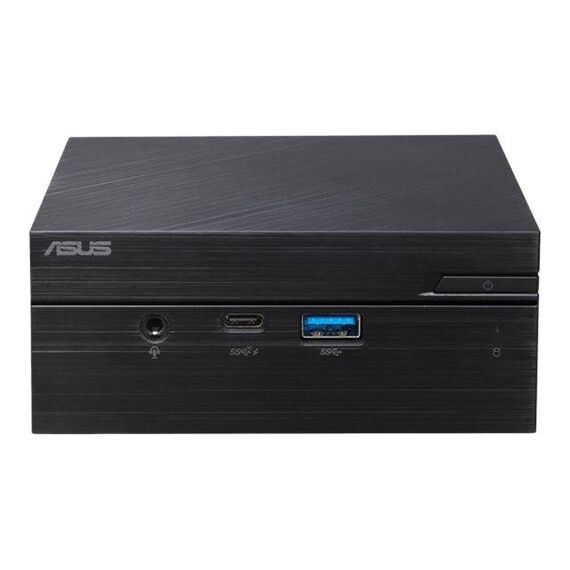

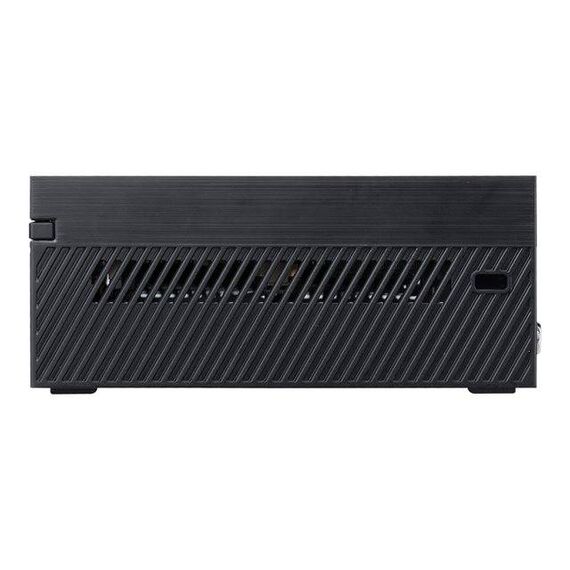

ASUS Mini PC PN61 is an ultra-compact and lightweight mini PC ideal for a wide range of uses, including business and home entertainment. Dual-display support and comprehensive I/O ports provide ultrafast and versatile connectivity for docks, displays and storage devices. For even more flexibility, a sliding-chassis design enables easy storage and memory upgrades in just two steps.
ASUS Mini PC PN61 B7048MT / Mini PC | 90MS01H1-M00480
Special Features
- Sliding-chassis design for easy, two-step storage and memory upgrades
- Comprehensive I/O connectivity to meet different needs
- 24/7 reliability - extensively tested to ensure long-term dependability
Product features
- Modern, space-saving design
With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN61 easily blends into home, office and retail environments. - Tested for perfection
ASUS mini PCs undergo rigorous noise, vibration, drop, and thermal shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. Be confident that your ASUS mini PC can cope with extreme conditions, ranging from dry -40°C temperatures, to humid and hot environments exceeding 60°C for long periods of time.
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Colour | Black |
| CPU | Intel Core i7 (8th Gen) 8565U |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 8 GB / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | SATA |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 4.0, IEEE 802.11ac |
| Compliant Standards | Wi-Fi CERTIFIED |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card |
| Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x Thunderbolt 3 ¦ 1 x headphones/microphone (1 in front) ¦ 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 1 x USB-C 3.1 Gen 2 (1 in front) (Battery Charging 1.2) ¦ 1 x DisplayPort/USB-C 3.1 Gen 1 ¦ 1 x USB 2.0 (1 internal) |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC, DisplayPort 1.2 |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| Service & Support | Limited warranty - 2 years - carry-in |
| Width | 11.5 cm |
| Depth | 11.5 cm |
| Height | 4.9 cm |
| Weight | 700 g |
Features - Asus - 90MS01H1-M00480
CPU Type
- Intel Core i7
Capacity
128GB
More Details
Product Code
04:303346
EAN Code
4718017337243
Manufacturer
Asus
