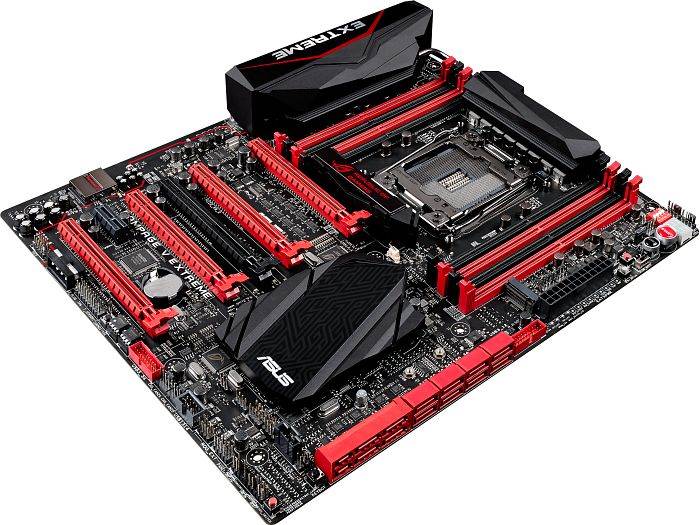

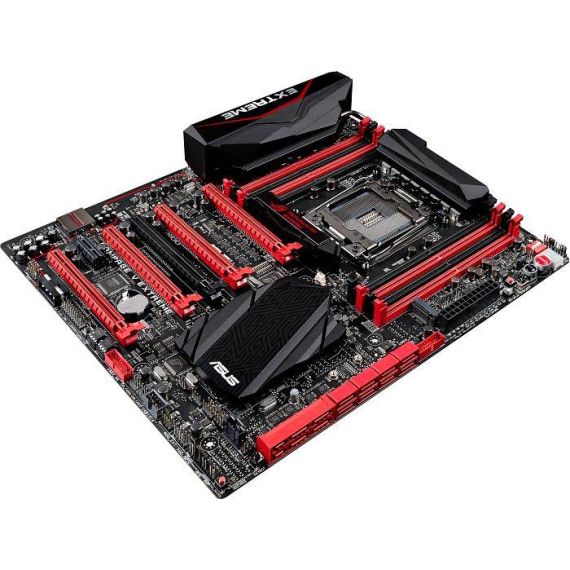

ASUS RAMPAGE V EXTREME/U3.1 / Motherboard / extended ATX / LGA2011-v3 Socket / X99 / USB 3.0 / Bluetooth, Gigabit LAN, Wi-Fi / HD Audio (8-channel) / with ASUS USB 3.1 Type-A CARD | 90MB0JG1-M0EAY0

Description

Unleash the full power of multiple graphics cards for visuals that never stutter, with just the right amount of space between each card. Onboard switches let you selectively enable or disable cards in a flash - configuring multi-GPU setups has never been easier! Designed to break performance barriers, ASUS OC Socket utilizes extra pins to connect a proprietary circuit to contacts found on Haswell-E's land grid array (LGA). This feature enables higher DDR4 memory frequencies, lower latencies and enhanced stability while overclocking, extending all the way to extreme overclocking conditions, such as Liquid Nitrogen (LN2). Cache bus links areas such as CPU cores, DDR4 Memory Controllers, System Agent and the shared L3 Cache. It is a critical interconnect for the whole CPU subsystem. Higher Cache Bus frequency directly gives faster total sub-system performance. ASUS OC Socket exclusively provides an adjustable cache bus voltage to reach higher cache bus frequencies.This is the first platform to support DDR4 memory, and it is capable of overclocking memory up to DDR4 3300+ MHz with all eight DIMMs fully loaded! ASUS-exclusive T-Topology circuit design plus patent-pending OC Socket unleash the full potential of DDR4 by minimizing crosstalk and signal reflections. Signal timing issues are also greatly reduced, resulting in improved stability and overall performance. ASUS works with almost every DDR4 memory vendor to ensure good compatibility - so you're assured reliable performance from your favorite brands. Get your hands on real-time system monitoring and tweaking in two modes. For both, a clear 2.6-inch display keeps you informed and in full control - so you can maximize the available power! ROG understands overclockers better than any other manufacturer - so Rampage V Extreme includes hardware-level Safe Boot and ReTry buttons to help put things right when overclocking adventures go wrong. They're quick, easy and real time-savers!

ASUS RAMPAGE V EXTREME/U3.1 / Motherboard / extended ATX / LGA2011-v3 Socket

Special Features

• OC Socket, OC Panel, Safe Boot and ReTry buttons - powerful tuning kit for breaking records
• Extreme Engine Digi+ IV - primo components for rock-steady power
• DirectCU, X-Socket II, multiple thermal sensors and Fan Xpert 3 - stay even cooler
• PCI Express 3.0 x4 M.2, dual SATA Express, 3T3R 802.11ac Wi-Fi - unparalleled connectivity with blistering-fast transfer speeds
• SupremeFX 2014, Sonic Radar II, Intel Ethernet, LANGuard, GameFirst III, KeyBot, RAMDisk - hear more, banish lag, accelerate loading and control
• USB 3.1 type-A card (dual) bundled

Product features

• Perfect spacing and PCI Express 3.0 speed for incredible graphics
  Unleash the full power of multiple graphics cards for visuals that never stutter, with just the right amount of space between each card. Onboard switches let you selectively enable or disable cards in a flash - configuring multi-GPU setups has never been easier!
• Drive CPU and DDR4 performance beyond the limits
  Designed to break performance barriers, ASUS OC Socket utilizes extra pins to connect a proprietary circuit to contacts found on Haswell-E's land grid array (LGA). This feature enables higher DDR4 memory frequencies, lower latencies and enhanced stability while overclocking, extending all the way to extreme overclocking conditions, such as Liquid Nitrogen (LN2).
• Cache Bus voltage adjustment
  Cache bus links areas such as CPU cores, DDR4 Memory Controllers, System Agent and the shared L3 Cache. It is a critical interconnect for the whole CPU subsystem. Higher Cache Bus frequency directly gives faster total sub-system performance. ASUS OC Socket exclusively provides an adjustable cache bus voltage to reach higher cache bus frequencies.
• Optimized for extreme overclocking
  This is the first platform to support DDR4 memory, and it is capable of overclocking memory up to DDR4 3300+ MHz with all eight DIMMs fully loaded! ASUS-exclusive T-Topology circuit design plus patent-pending OC Socket unleash the full potential of DDR4 by minimizing crosstalk and signal reflections. Signal timing issues are also greatly reduced, resulting in improved stability and overall performance. ASUS works with almost every DDR4 memory vendor to ensure good compatibility - so you're assured reliable performance from your favorite brands.
• Intuitive overclocking command center
  Get your hands on real-time system monitoring and tweaking in two modes. For both, a clear 2.6-inch display keeps you informed and in full control - so you can maximize the available power!
• Save more time, break more records
  ROG understands overclockers better than any other manufacturer - so Rampage V Extreme includes hardware-level Safe Boot and ReTry buttons to help put things right when overclocking adventures go wrong. They're quick, easy and real time-savers!
• Pump up your power
  An extreme platform demands extreme control over the purest power, and nothing delivers more control or purer power than Extreme Engine Digi+ IV - Rampage V Extreme's exclusive voltage-regulator module (VRM). MicroFine alloy chokes lower overall core loss for lower temperatures. This chip integrates the driver, high-side and low-side MOSFETs and features RDS On current-sensing technology. Extreme Engine Digi+ IV's high-frequency pulse-width modulation (PWM) implementation scales to 1MHz allowing the DRAM VRM to achieve a 40% increase in stability!
• Copper-cooled to the core
  Exclusive DirectCU cooling technology puts better conductive copper heat-pipes in direct contact with Rampage V Extreme's Extreme Engine Digi+ IV VRM zone to provide incomparable heat dissipation. Other designs merely prevent overheating - Rampage V Extreme with DirectCU goes up to 7 degrees cooler.
• Advanced fan controls for ultimate cooling and quietness
  Rampage V Extreme has 8 x 4/3-pin (PWM/DC) combo fan connectors, four intelligent onboard sensors plus three additional 2-pin headers and a selection of three thermal cables to help you monitor the temperatures of up to seven motherboards or key components in real time - so you're able to adjust CPU and case coolers automatically or manually for a good dissipation.
• Scan and detect to dominate
  Designed for first-person shooters (FPS), Sonic Radar II displays a stealthy overlay that shows what opponents and teammates are up to. See the precise direction and origin of in-game sounds such as gunshots, footsteps and call-outs, and practice your enemy-pinpointing skills - and exclusive Audio Enhancement further improves in-game sound for superb hearing awareness. The Sonic Radar II includes a redesigned control panel with customizable game list!
