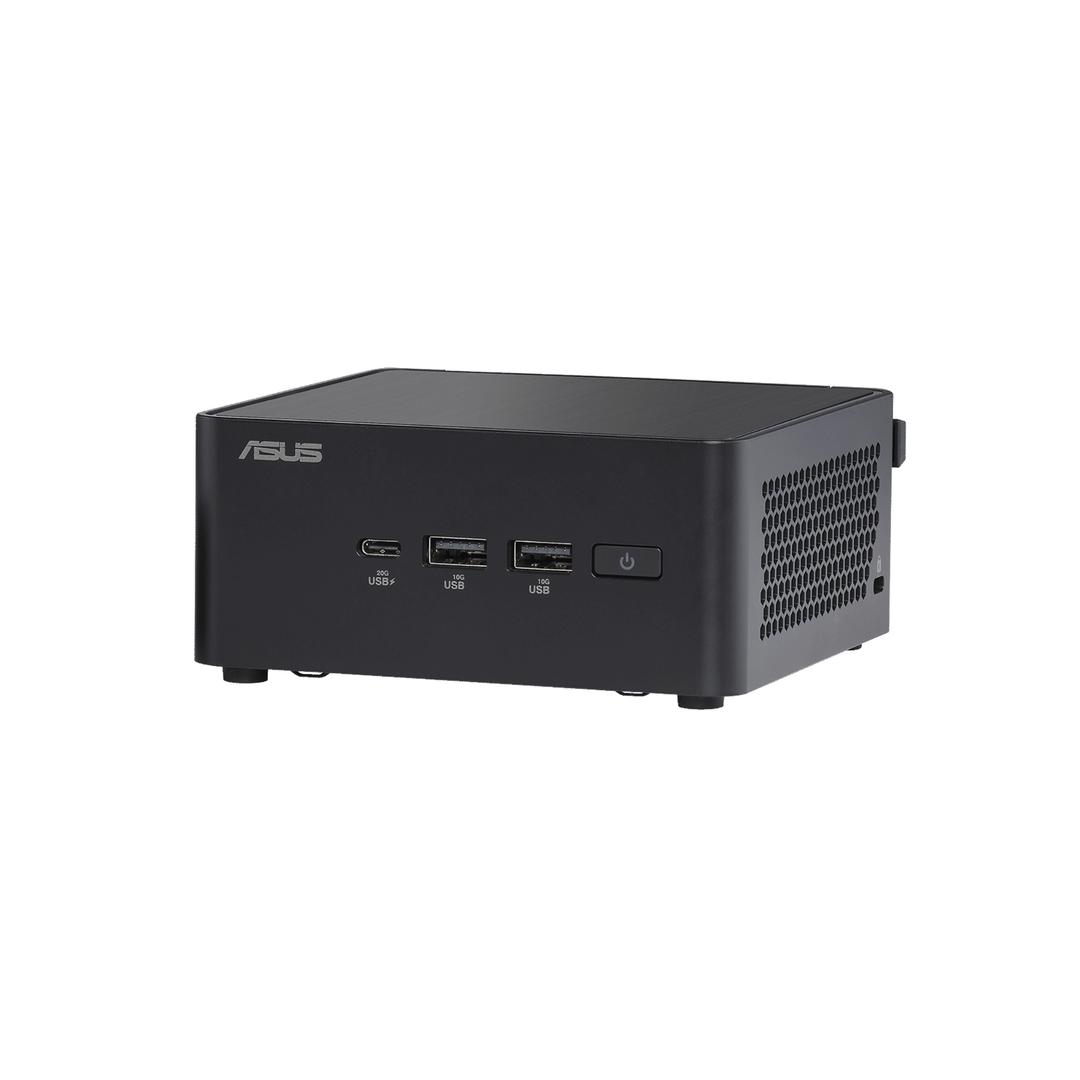

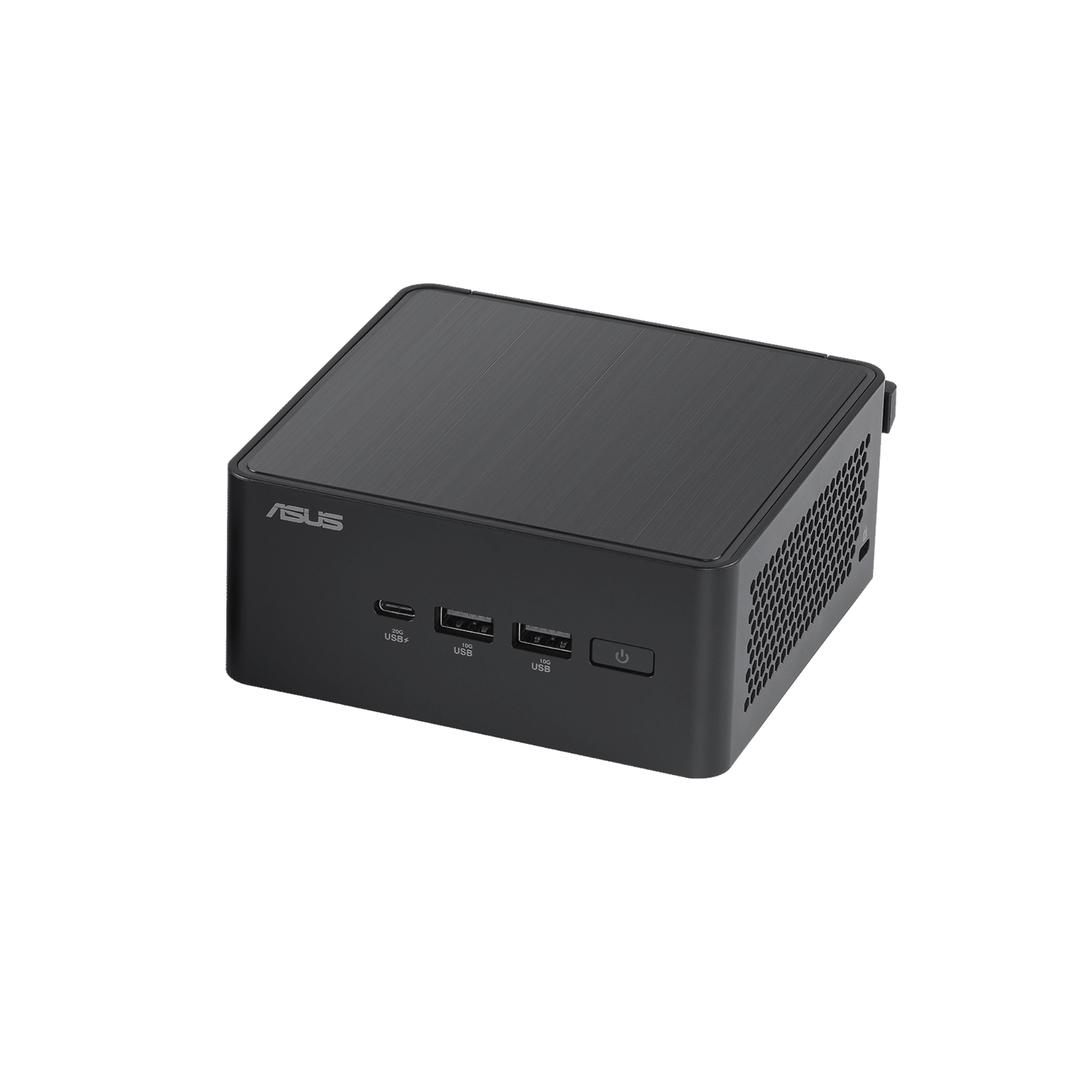

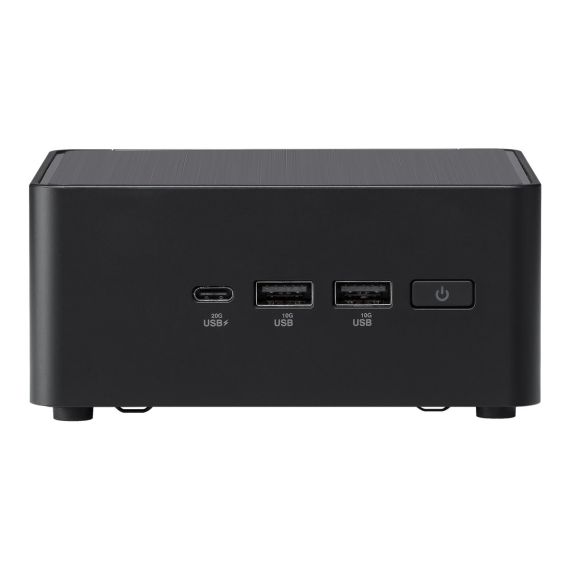

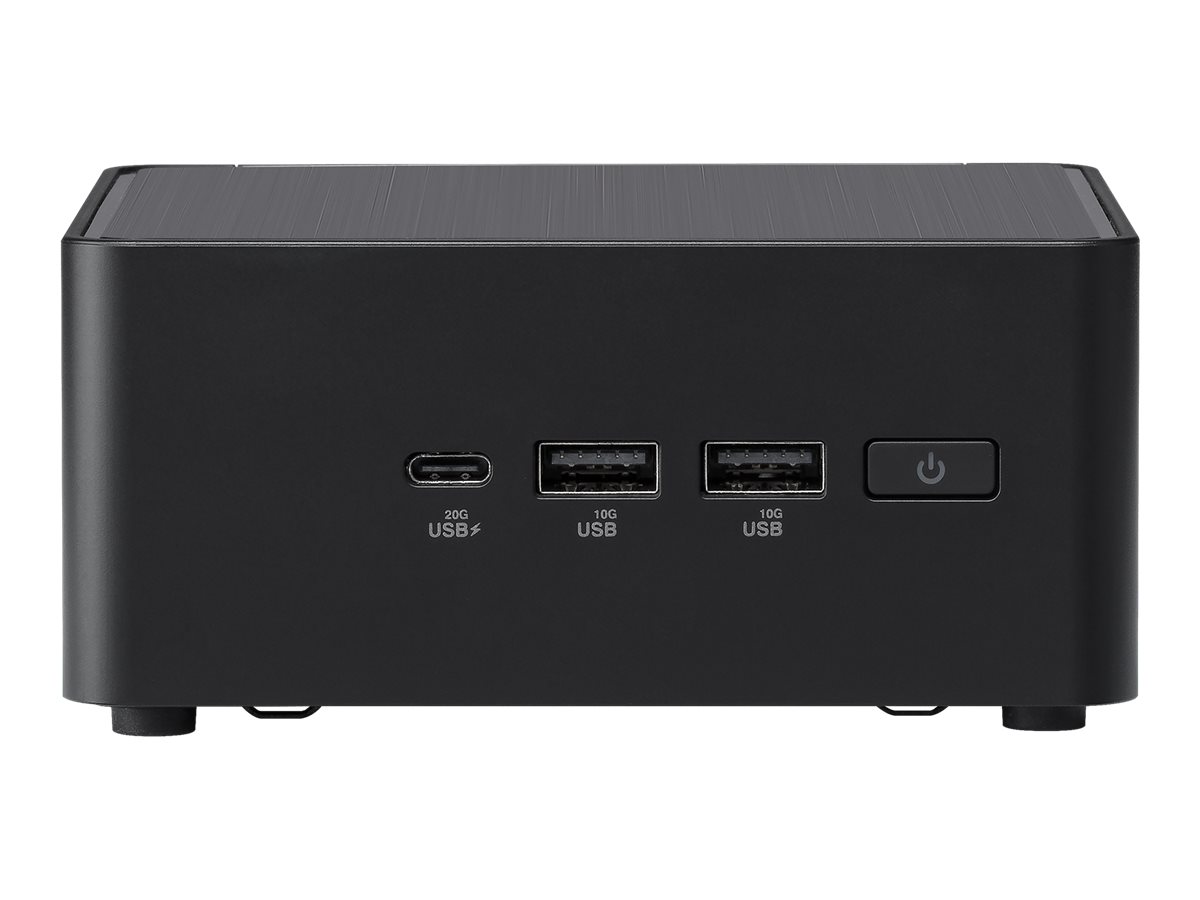

ASUS NUC 14 Pro RNUC14RVHV700003I - Barebone - mini PC 1 x Core Ultra 7 165H / up to 5 GHz - RAM 0 GB - Intel Arc Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - black | 90AR0072-M00290

Product Features
- Compact design
The ASUS NUC 14 Pro features an ultra small form factor, making it an ideal choice for spaces where every square inch counts. Its mini PC form factor allows for easy placement in tight spaces, offering powerful computing where conventional desktops can't fit. - Versatile connectivity
Equipped with a wide range of interfaces including USB 3.2 Gen 1, Thunderbolt 4, HDMI, LAN (2.5 Gigabit Ethernet), USB4, and USB 2.0, this device ensures you're prepared for any peripheral or display requirement. The inclusion of both Thunderbolt 4 and USB4 ports provides high-speed data transfer and the ability to connect multiple displays or devices for maximum productivity. - Advanced wireless capabilities
With support for Wi-Fi 6E and Bluetooth 5.3, the ASUS NUC 14 Pro offers fast and reliable wireless connectivity. Whether you're streaming high-definition content, participating in a video conference, or transferring large files, the Intel Wi-Fi 6E AX 211 ensures you have the bandwidth and speed for a smooth, uninterrupted experience. - Powerful performance
Powered by an Intel Core Ultra 7 processor with 16 cores, the ASUS NUC 14 Pro delivers exceptional performance for demanding applications. With a max turbo speed of up to 5 GHz, it can handle intensive tasks with ease, from complex computations to graphic design projects. - Expandable and upgradeable
Despite its compact size, this mini PC offers room for expansion. With M.2 card slots available for both 2280 and 2242 sizes, users have the flexibility to increase storage or add fast SSDs to boost the system's overall performance and storage capacity.
Special Fetures
- Ultra small form factor for space-saving placement
- Multiple connectivity options including Thunderbolt 4 and USB4
- Supports Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connections
- Intel Core Ultra 7 processor with 16 cores for high-performance computing
- Expandable storage with M.2 card slots
Product Specification
Type | PC barebone - AI Ready |
Product Form Factor | Mini PC |
Colour | Black |
Processor / Chipset | |
CPU | Intel Core Ultra 7 (Series 1) 165H |
Clock Speed | 1.4 GHz (P-core) / 700 MHz (E-core) |
Max Turbo Speed | 5 GHz (P-core) / 3.8 GHz (E-core) |
Number of Cores | 16-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Processor Main Features | Intel Smart Cache |
Cache Memory | |
Installed Size | 24 MB |
Cache Per Processor | 24 MB |
RAM | |
Installed Size | 0 GB (installed) / 96 GB (max) |
Technology | DDR5 SDRAM |
Form Factor | SO-DIMM 262-pin |
Slots | 2 (Total) / 2 (empty) |
Hard Drive | |
Type | No HDD |
Storage Controller | |
Type | SATA |
Controller Interface Type | SATA 6Gb/s |
Channel Qty | 1 |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Intel Arc Graphics |
Video Interfaces | HDMI |
Networking | |
Wireless LAN Supported | Yes |
Wireless NIC | Intel Wi-Fi 6E AX 211 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
Expansion / Connectivity | |
Bays | 1 (total) / 1 (free) x internal 2.5" |
Slots | 1 (total) / 1 (free) x M.2 Card - 2280 <br /> 1 (total) / 1 (free) x M.2 Card - 2242 |
Interfaces | 3 x USB 3.2 Gen 1 <br /> 2 x Thunderbolt 4 <br /> 2 x HDMI <br /> 1 x LAN (2.5Gigabit Ethernet) <br /> 1 x USB4 <br /> 1 x USB 2.0 |
Miscellaneous | |
Included Accessories | VESA mounting kit |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
VESA Mounting Interface | Yes |
Power | |
Device Type | Power adapter |
Power Provided | 120 Watt |
Operating System / Software | |
OS Provided | No operating system |
Dimensions & Weight | |
Width | 14.4 cm |
Depth | 11.2 cm |
Height | 4.1 cm |
Weight | 570 g |
Features - Asus - 90AR0072-M00290
- Intel Ultra 7
