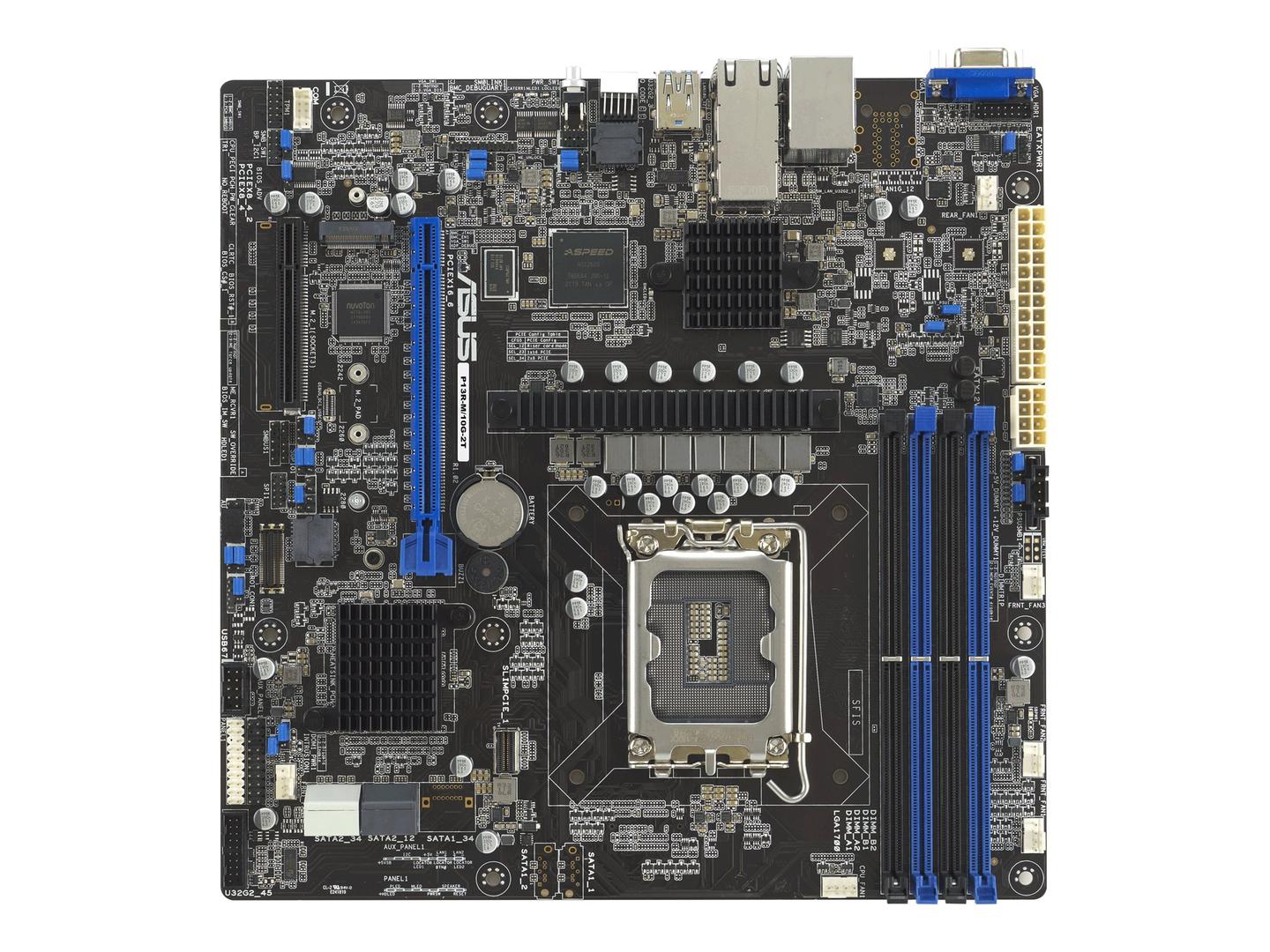

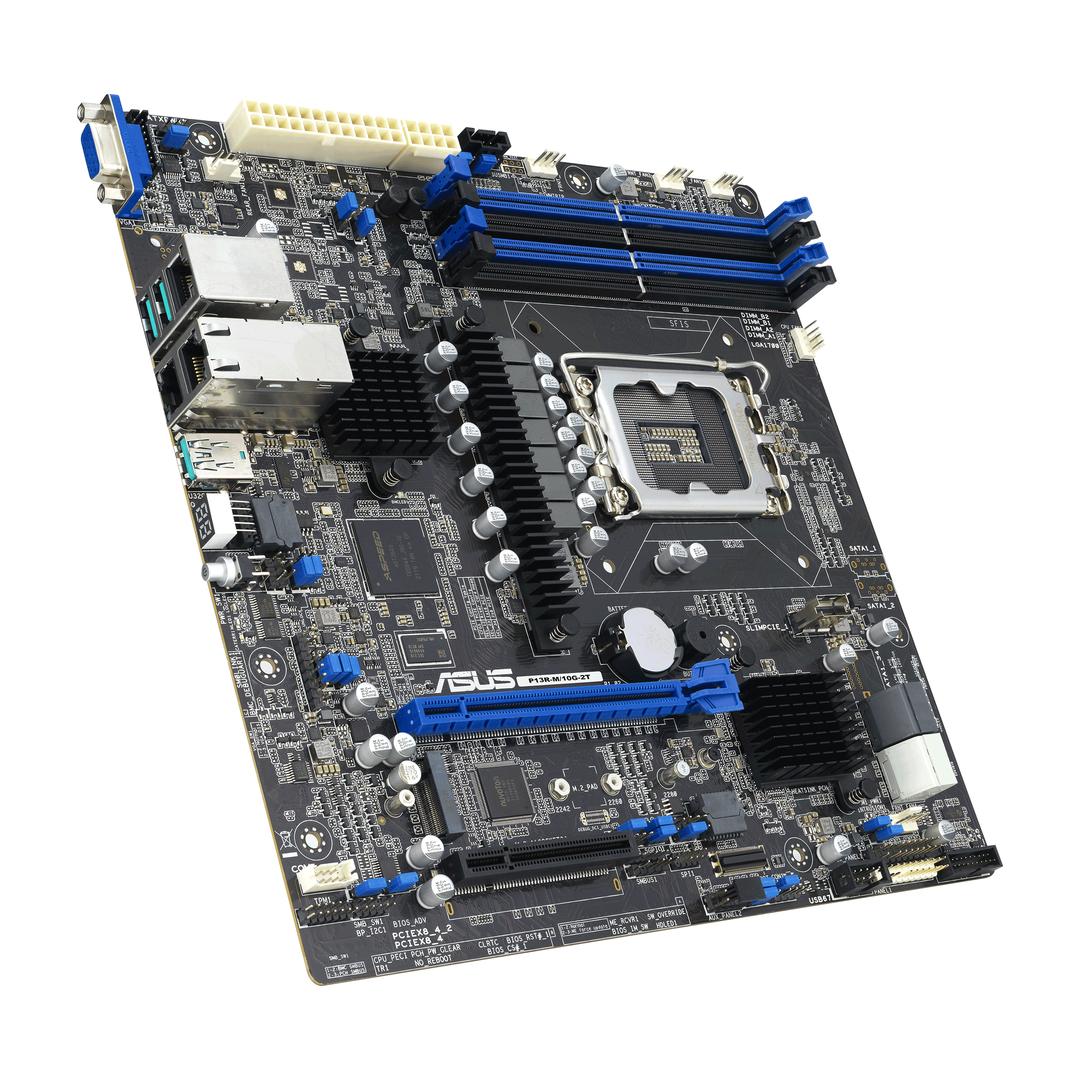

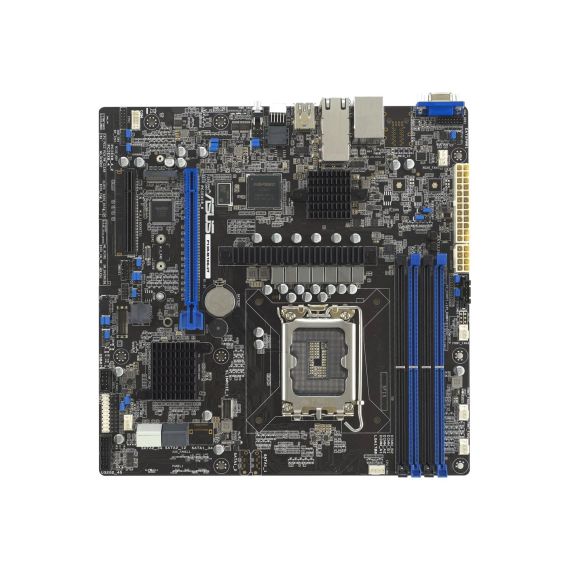

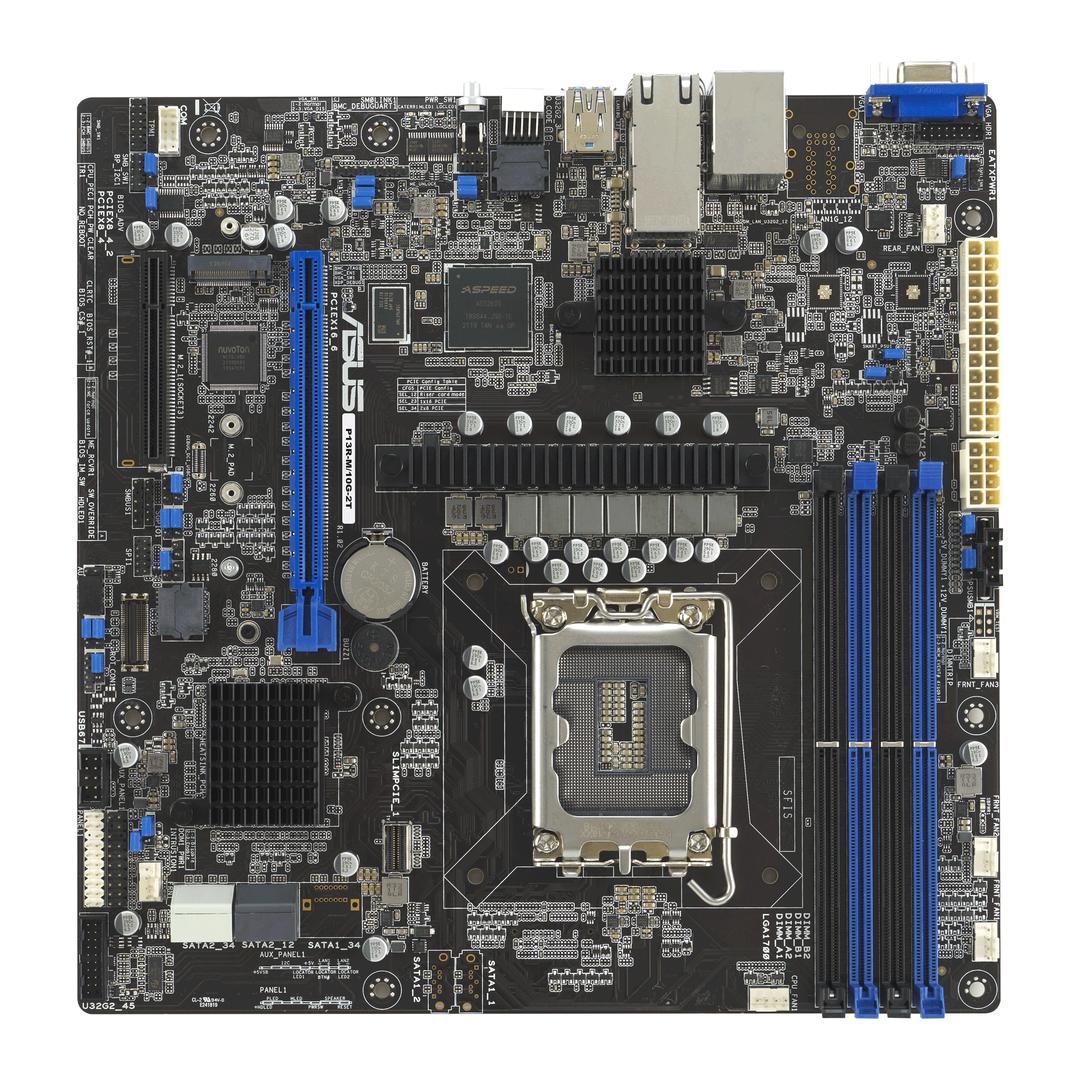

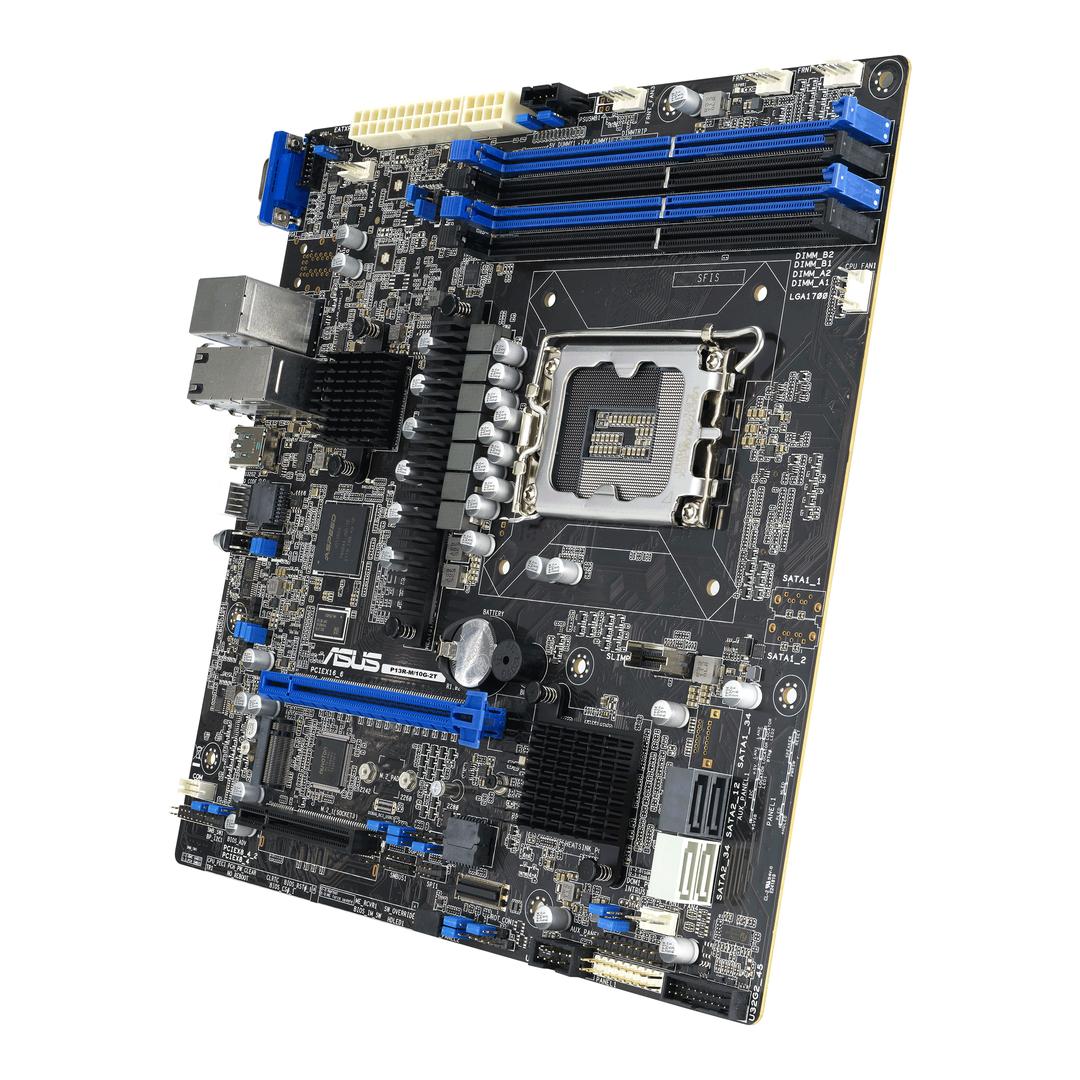

ASUS P13R-M/10G-2T / Motherboard / micro ATX / LGA1700 Socket / C262 Chipset / USB-C 3.2 Gen2, USB 3.2 Gen 1 / 2 x 10 Gigabit LAN / onboard graphics | 90SB0CC0-M0UAY0
ASUS P13R-M/10G-2T / Motherboard / micro ATX / LGA1700 Socket / C262 Chipset / USB-C 3.2 Gen2, USB 3.2 Gen 1 / 2 x 10 Gigabit LAN / onboard graphics | 90SB0CC0-M0UAY0
€625.36 inc. VAT
90SB0CC0-M0UAY0
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity options
The motherboard includes dual 10 Gigabit Ethernet ports and multiple USB ports, ensuring efficient data transfer and connectivity for various peripherals. - Efficient storage solutions
With four SATA-600 ports and two M.2 sockets, it allows for diverse storage configurations, including support for RAID 0, RAID 1, RAID 10, and RAID 5. - Support for high-speed memory
This motherboard supports DDR5 SDRAM technology with speeds reaching up to 2200 MHz, enabling better performance for demanding applications. - Robust hardware monitoring features
It provides detailed monitoring of hardware components, including CPU core temperature and fan control, to maintain optimal performance. - Advanced BIOS capabilities
The iKVM support in the BIOS offers enhanced remote management features, allowing users to monitor and control their system effectively.
Special Fetures
- Supports Intel Xeon E-2400 CPUs for performance computing
- Features dual 10 Gigabit Ethernet for networking
- Equipped with four SATA-600 ports and two M.2 sockets for storage options
- Supports DDR5 SDRAM with speeds up to 2200 MHz for multitasking
- Offers hardware monitoring for system management
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C262 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Xeon E (supports Intel Xeon E-2400 CPUs) |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 2200 MHz, 1800 MHz, 2000 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Dedicated Video Memory | 64 MB |
| LAN | |
| Network Controller | Intel X710-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) <br /> 1 x PCIe 5.0 x16 <br /> 1 x PCIe 4.0 x8 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA <br /> SATA-600 / PCIe -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

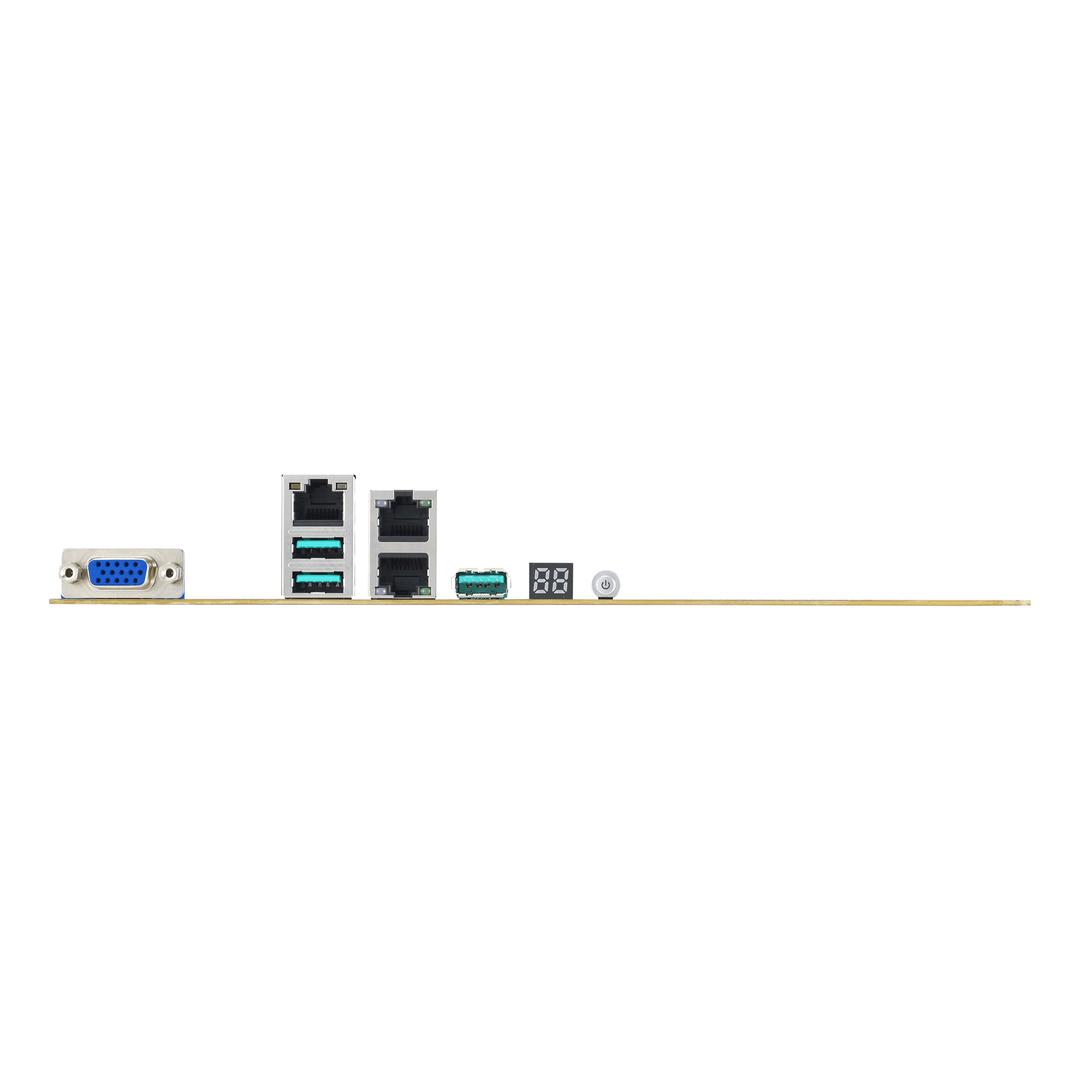

| Interfaces | 1 x VGA <br /> 3 x USB 3.2 Gen 2 <br /> 2 x LAN (10Gigabit Ethernet) <br /> 1 x LAN (Gigabit Ethernet)/management |
| Internal Interfaces | 2 x USB 2.0 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x USB-C 3.2 Gen 2 - header <br /> 1 x SPI - header <br /> 1 x serial - header <br /> 1 x VGA - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features | iKVM support |
| Hardware Monitoring | CPU core temperature, fan control |
| Hardware Features | Q-Code, power button, Intel Turbo Boost Technology |
| Miscellaneous | |
| Included Accessories | IO shield |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90SB0CC0-M0UAY0
CPU Socket
- Socket 1700
More Details
Product Code
04:491097
EAN Code
4711387204351
Manufacturer
Asus
