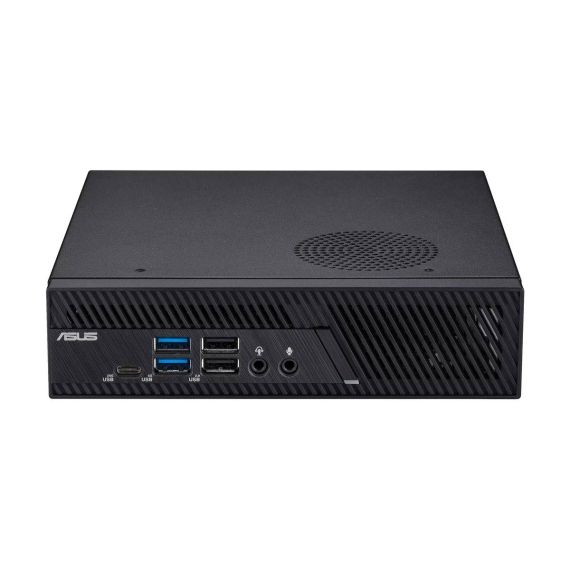

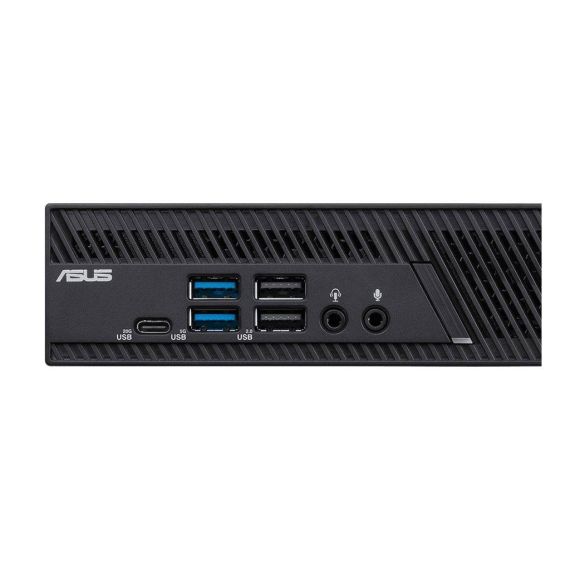

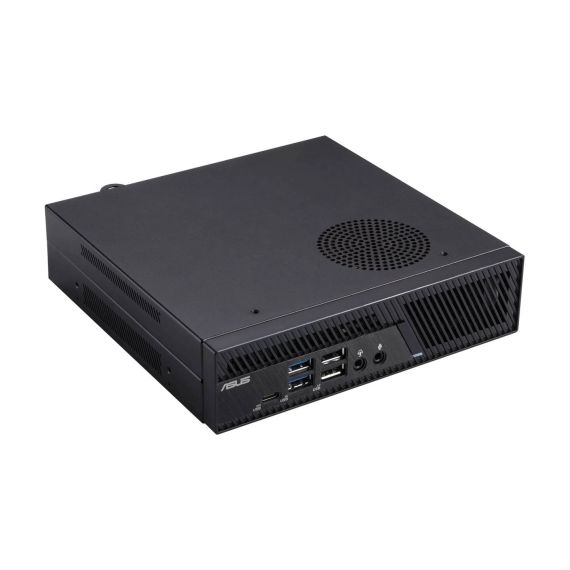

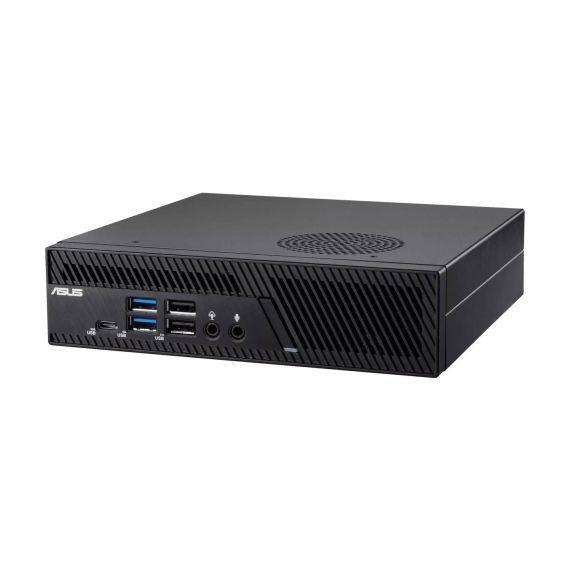

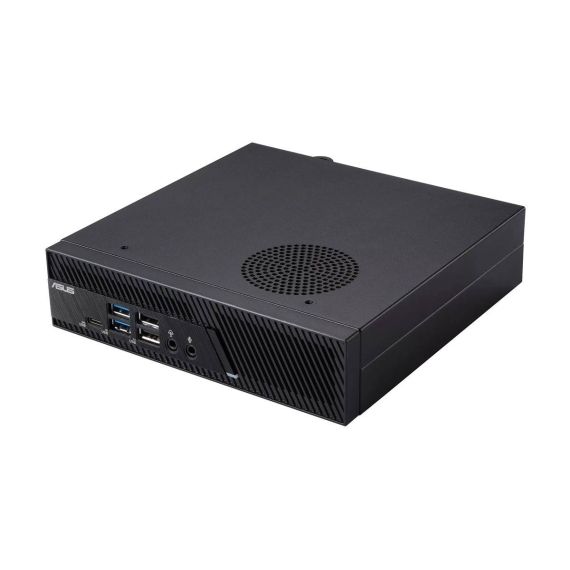

ASUS PB63 B3014MH / Mini PC Core i3 13100 / up to 4.5 GHz / RAM 8 GB / SSD 256 GB / UHD Graphics 730 / IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet / no OS / monitor: none / black | 90MS02R1-M000E0
ASUS PB63 B3014MH / Mini PC Core i3 13100 / up to 4.5 GHz / RAM 8 GB / SSD 256 GB / UHD Graphics 730 / IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet / no OS / monitor: none / black | 90MS02R1-M000E0
€726.21 inc. VAT
90MS02R1-M000E0
CPU TypeIntel Core i3
Memory Size8GB
Capacity256GB
Product Code04:444841
EAN Code4711387339688
ManufacturerAsus
Sales 10%
Promotion details
Sales 10% at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Compact and efficient design
The ASUS PB63 B3014MH stands out with its small form factor, making it an ideal choice for spaces where room is limited. Its mini PC form factor ensures it fits seamlessly into any work environment, from crowded desks to tight office spaces. - Powerful performance
Equipped with a quad-core Intel Core i3-13100 processor, this desktop delivers a clock speed of 3.4 GHz with a max turbo speed of 4.5 GHz. Coupled with 12 MB of cache memory, it offers efficient multitasking and smooth performance for all your computing needs. - Advanced connectivity
Featuring Wi-Fi 6E support, the ASUS PB63 B3014MH ensures faster wireless networking speeds and improved connectivity. This technology makes it easier to connect to the Internet and other devices without the clutter of cables. - High-speed storage
With a 256 GB SSD, this desktop provides ample storage for your files and applications. The PCI Express interface ensures fast data transfer speeds, significantly reducing boot and load times compared to traditional hard drives. - Energy-efficient
ENERGY STAR certification means the ASUS PB63 B3014MH is not only powerful but also energy-efficient. This desktop minimizes power consumption without sacrificing performance, making it an eco-friendly choice for any user.
Special Features
- Small form factor for easy placement in any workspace
- Quad-core Intel Core i3-13100 processor for smooth multitasking
- Wi-Fi 6E support for high-speed wireless connectivity
- 256 GB SSD for quick boot and load times
- ENERGY STAR certified for energy efficiency
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i3 (13th Gen) 13100 |
| Clock Speed | 3.4 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | Cache Memory |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | RAM |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 730 |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Bluetooth 5.2, Ethernet, Gigabit Ethernet, Fast Ethernet |
| Features | Dual stream (2x2) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB-C 3.2 Gen 2x2 (1 front) 2 x USB 3.2 Gen 1 (2 front) 3 x USB 2.0 (2 front, 1 rear) 1 x microphone (1 front) 1 x audio line-in (1 front) 2 x USB 3.2 Gen 2 (2 rear) 2 x DisplayPort 1.4 (2 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x aerial (1 rear) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | BSMI, CB, FCC, UL, CCC, C-Tick, VCCI, Energy Star |
| Power | Power |
| Device Type | Power supply |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.5 cm |
| Depth | 17.5 cm |
| Height | 4.42 cm |
| Weight | 1.18 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 36 cm |
| Shipping Depth | 24 cm |
| Shipping Height | 6.8 cm |
| Shipping Weight | 2.61 kg |
Features - Asus - 90MS02R1-M000E0
CPU Type
- Intel Core i3
Capacity
256GB
More Details
Product Code
04:444841
EAN Code
4711387339688
Manufacturer
Asus
