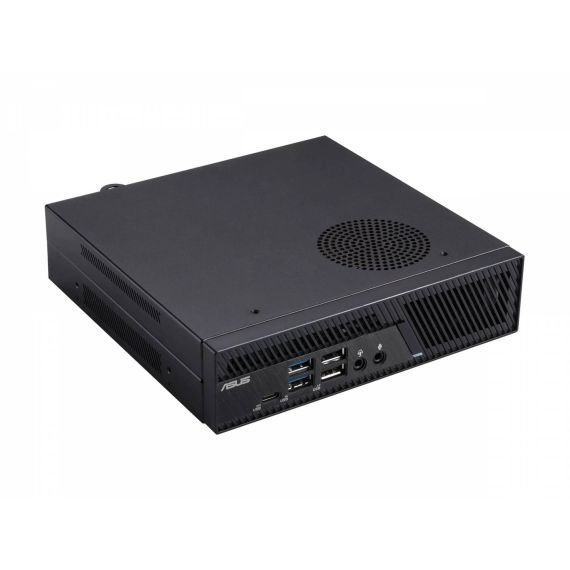

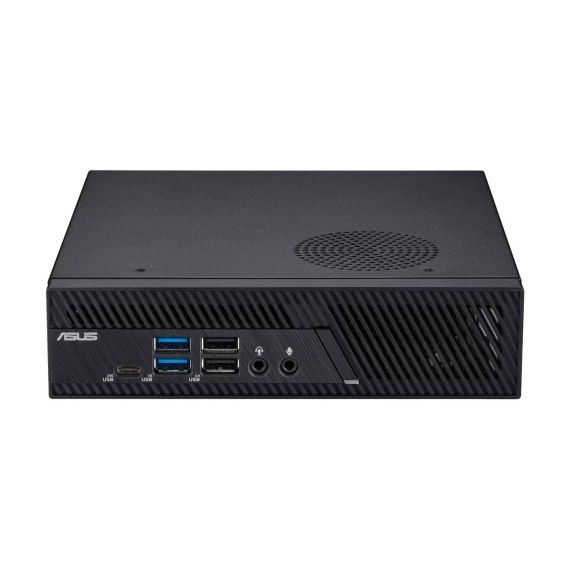

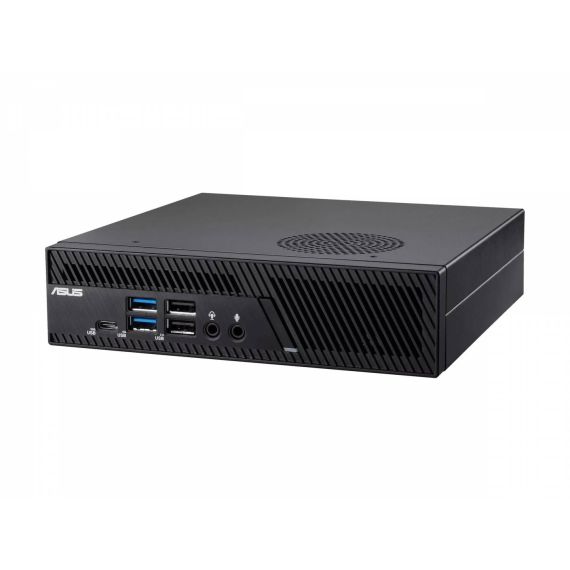

ASUS PB63 B5047MH / Mini PC Core i5 13400 / up to 4.6 GHz / RAM 16 GB / SSD 512 GB / UHD Graphics 730 / IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, Bluetooth 5.2 / no OS / monitor: none / black | 90MS02R1-M001F0
ASUS PB63 B5047MH / Mini PC Core i5 13400 / up to 4.6 GHz / RAM 16 GB / SSD 512 GB / UHD Graphics 730 / IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, Bluetooth 5.2 / no OS / monitor: none / black | 90MS02R1-M001F0
€900.89 inc. VAT
90MS02R1-M001F0
CPU TypeIntel Core i5
Memory Size16GB
Capacity512GB
Product Code04:444843
EAN Code4711387339695
ManufacturerAsus
Sales 10%
Promotion details
Sales 10% at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Compact and powerful
The ASUS PB63 B5047MH redefines workspace efficiency with its small form factor design, allowing it to fit into tight spaces without compromising on power. Equipped with a 10-core Intel Core i5 processor and Intel Smart Cache, it delivers robust performance for demanding applications. - Advanced connectivity
This mini PC boasts a comprehensive range of connectivity options, including USB-C 3.2 Gen 2x2, USB 3.2, and DisplayPort 1.4, ensuring fast data transfer and easy connection to multiple devices and displays. - High-speed wireless
With support for Wi-Fi 6E and Bluetooth 5.2, the ASUS PB63 B5047MH offers faster wireless speeds and improved connectivity, making it perfect for seamless online collaboration and file transfers. - Enhanced security
Featuring a firmware Trusted Platform Module (TPM) security chip and a Kensington security slot, this desktop provides advanced security features to protect sensitive data and prevent unauthorized access. - Efficient storage solution
A 512 GB NVMe SSD ensures quick boot times and rapid access to data, enhancing productivity with smooth performance and ample storage for all your important files.
Special Features
- 10-core Intel Core i5 processor for efficient multitasking
- 512 GB NVMe SSD for quick access to files and applications
- Wi-Fi 6E and Bluetooth 5.2 for reliable wireless connectivity
- Compact design fits easily in any workspace
- Multiple USB and DisplayPort connections support a variety of devices
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 13400 |
| Clock Speed | 2.5 GHz (P-core) / 1.8 GHz (E-core) |
| Max Turbo Speed | 4.6 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | Cache Memory |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | RAM |
| Installed Size | 16 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 730 |
| Video Interfaces | DisplayPort, HDMI |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2 |
| Features | Dual stream (2x2) |
| Expansion / Connectivity | Expansion / Connectivity |
| Slots | 1 (total) / 0 (free) x M.2 Card |

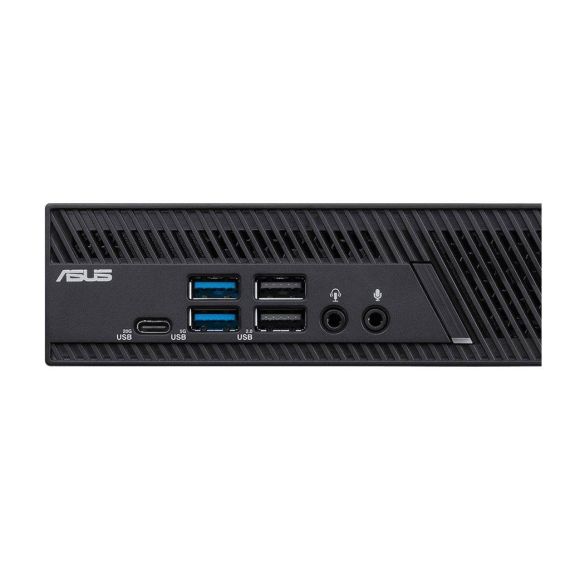

| Interfaces | 3 x USB 2.0 (2 front, 1 rear) 1 x audio line-out/headphones/microphone (1 front) 1 x microphone (1 front) 1 x USB-C 3.2 Gen 2x2 (1 front) 2 x USB 3.2 Gen 1 (2 front) 2 x USB 3.2 Gen 2 (2 rear) 2 x DisplayPort 1.4 (2 rear) 1 x LAN (Gigabit Ethernet) (1 rear) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | BSMI, CB, FCC, UL, CCC, C-Tick, VCCI |
| Power | Power |
| Device Type | Power supply |
| Power Provided | 150 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.5 cm |
| Depth | 17.5 cm |
| Height | 4.42 cm |
| Weight | 1.18 kg |
Features - Asus - 90MS02R1-M001F0
CPU Type
- Intel Core i5
Capacity
512GB
More Details
Product Code
04:444843
EAN Code
4711387339695
Manufacturer
Asus
