ASUS PB63 B7013AH / Mini PC / Core i7 13700 / 2.1 GHz / RAM 16 GB / SSD 512 GB / NVMe / UHD Graphics 770 / Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) WLAN: / Win 11 Pro | 90MS02R1-M000D0

90MS02R1-M000D0
1,289.52
(1,534.53 inc. VAT)
Availability: 4 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:444846 EAN Code4711387339770 ManufacturerAsus Memory Size16GB CPU TypeIntel Core i7 Capacity512GB

Product Features

  • Compact design

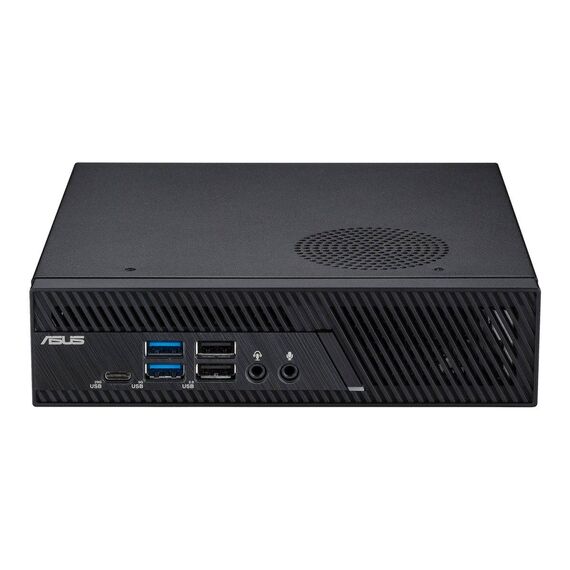

    The ASUS PB63 B7013AH features a small form factor, making it an ideal choice for spaces where every inch counts. Its mini PC form factor allows for easy placement on a desk or in a living area, without compromising on performance.
  • High-speed connectivity
    Equipped with USB-C 3.2 Gen 2x2 and USB 3.2 Gen 1 and Gen 2 ports, this desktop ensures high-speed data transfer and connectivity options for all your peripherals. Additionally, with DisplayPort 1.4, it supports high-resolution displays for an enhanced visual experience.
  • Advanced wireless capabilities
    Featuring wireless technology, including Wi-Fi 6E and Bluetooth 5.2, the ASUS PB63 B7013AH offers fast and reliable connections. Whether streaming, transferring files, or connecting to other devices, its dual stream (2x2) ensures optimal performance.
  • Powerful performance
    Powered by an Intel Core i7-13700 processor with a clock speed up to 5.2 GHz and 16 GB of DDR5 RAM, this desktop is built to handle demanding applications and multitasking with ease. The inclusion of a 512 GB NVMe SSD ensures quick boot times and speedy access to your most-used programs.
  • Enhanced security
    With an embedded Trusted Platform Module (TPM) security chip, the ASUS PB63 B7013AH provides a secure computing environment by safeguarding sensitive data against unauthorized access.

Special Features

  • Small form factor for easy placement in any space
  • USB-C 3.2 Gen 2x2 and multiple USB 3.2 ports for high-speed connectivity
  • Wi-Fi 6E and Bluetooth 5.2 for fast and reliable wireless connections
  • Intel Core i7-13700 processor and 16 GB DDR5 RAM for powerful performance
  • 512 GB NVMe SSD for quick boot times and fast data access

Product Specification

Type Personal computer
Product Form Factor Mini PC
Embedded Security Trusted Platform Module (TPM) Security Chip
Colour Black
Processor / Chipset Processor / Chipset
CPU Intel Core i7 (13th Gen) 13700
Clock Speed 2.1 GHz (P-core) / 1.5 GHz (E-core)
Max Turbo Speed 5.2 GHz (P-core) / 4.1 GHz (E-core)
Number of Cores 16-core
CPU Qty 1
Max CPU Qty 1
L2 cache 24 MB
CPU Upgradability Upgradable
Processor Main Features Intel Smart Cache
Cache Memory Cache Memory
Installed Size 30 MB
Cache Per Processor 30 MB
RAM RAM
Installed Size 16 GB / 64 GB (max)
Technology DDR5 SDRAM
Form Factor SO-DIMM 262-pin
Slots 2 (Total)
Hard Drive Hard Drive
Type SSD - M.2
Capacity 1 x 512 GB
Interface Type PCI Express 4.0
Features NVM Express (NVMe)
Storage Controller Storage Controller
Type 1 x SATA
Optical Storage Optical Storage
Type No optical drive
Monitor Monitor
Monitor Type None.
Graphics Controller Graphics Controller
Graphics Processor Intel UHD Graphics 770
Video Interfaces HDMI, DisplayPort
Networking Networking
Wireless LAN Supported Yes
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Features Dual stream (2x2)
Expansion / Connectivity Expansion / Connectivity
Slots 1 (total) / 0 (free) x M.2 Card
Interfaces 3 x USB 2.0 (2 front, 1 rear) ¦ 1 x audio line-out/headphones/microphone (1 front) ¦ 1 x microphone (1 front) ¦ 1 x USB-C 3.2 Gen 2x2 (1 front) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 2 x DisplayPort 1.4 (2 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear)
Miscellaneous Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards UL, VCCI, C-Tick, BSMI, CB, CCC, FCC
Power Power
Device Type Power supply
Operating System / Software Operating System / Software
OS Provided Windows 11 Pro
Dimensions & Weight Dimensions & Weight
Width 17.5 cm
Depth 17.5 cm
Height 4.42 cm
Weight 1.18 kg
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Width 36 cm
Shipping Depth 24 cm
Shipping Height 6.8 cm
Shipping Weight 2.61 kg

Features - Asus - 90MS02R1-M000D0

CPU Type
  • Intel Core i7
Memory Size
  • 16GB
Capacity
512GB
More Details
Product Code
04:444846
EAN Code
4711387339770
Manufacturer
Asus
